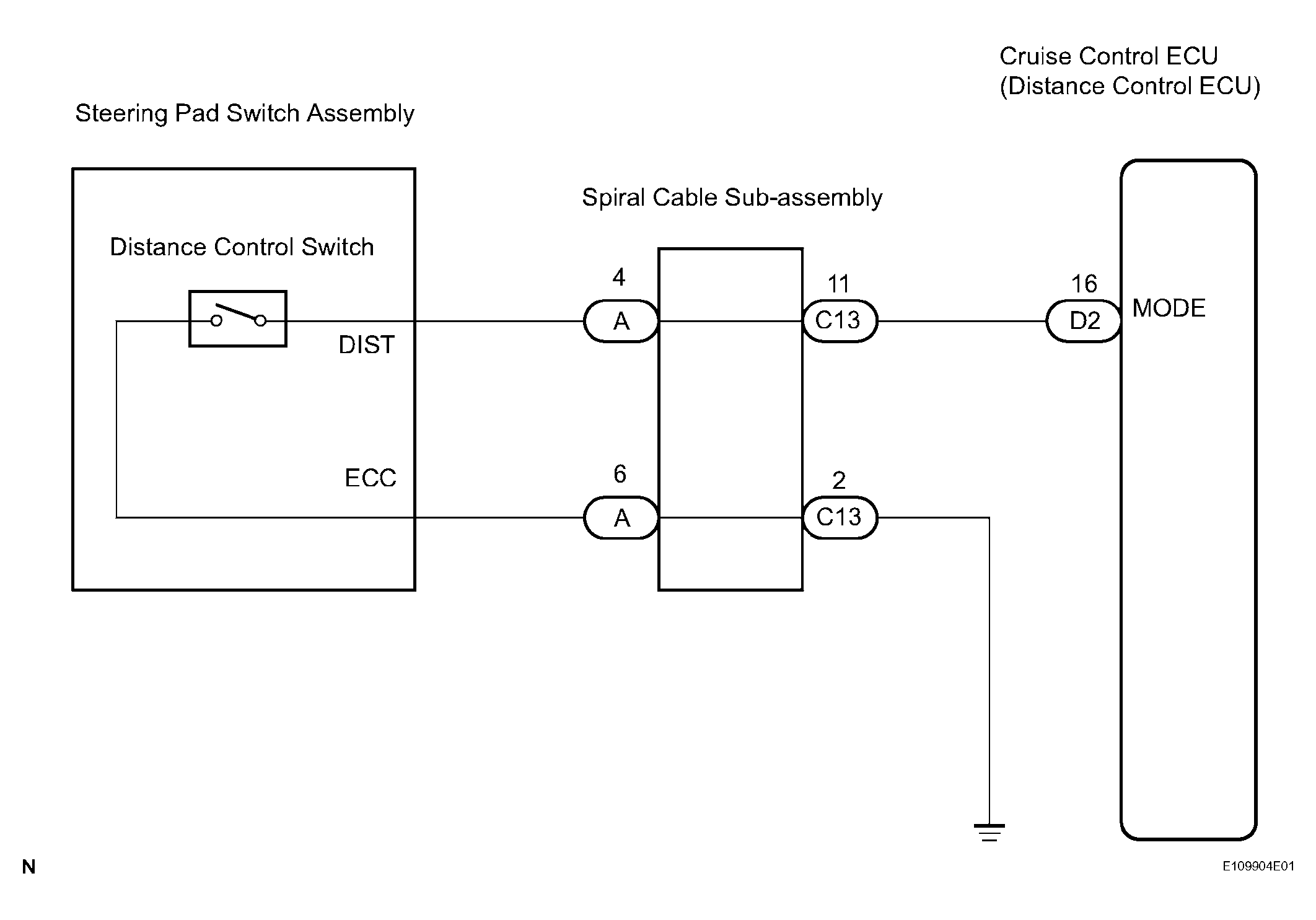

Distance Control Switch Circuit: Wiring Diagram

1. Remove the steering pad switch assembly.

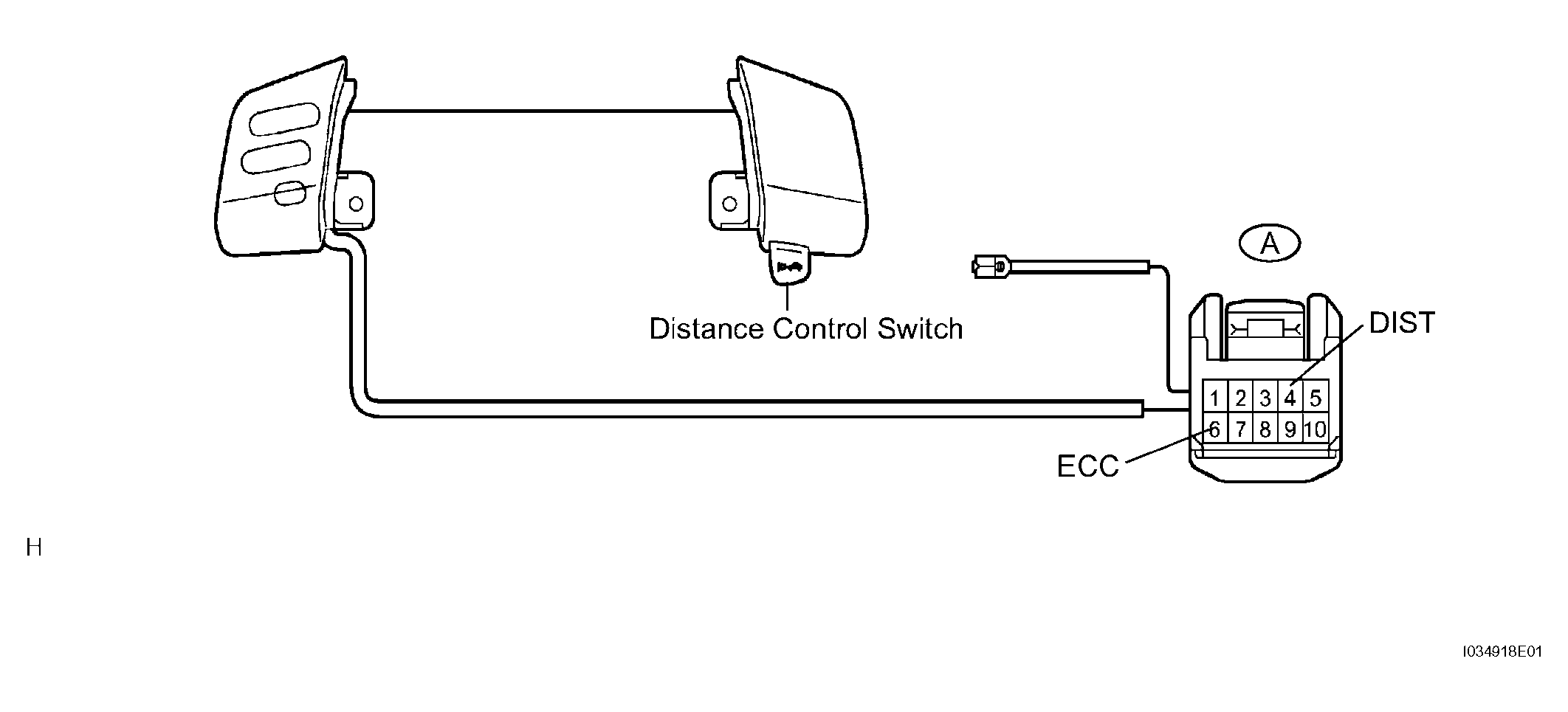

   Fig 2: Identifying Distance Control Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance between terminal 4 (DIST) and (ECC) of steering pad switch assembly connector when distance control switch is operated.

   Standard resistance

   SWITCH POSITION - SPECIFIED VALUE



   Switch position	Specified value
   Distance control switch is ON	Below 1 Ω
   Distance control switch is OFF	10 kΩ or higher

   HINT:

   When a malfunction is detected in the distance control switch, replace the steering pad switch assembly.

NG : REPLACE STEERING PAD SWITCH ASSEMBLY

OK : GO TO NEXT STEP

1. Disconnect the spiral cable connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   A-4 - C13-11	Always	Below 1 Ω
   A-6 - C13-2	Always	Below 1 Ω

NG : REPLACE SPIRAL CABLE

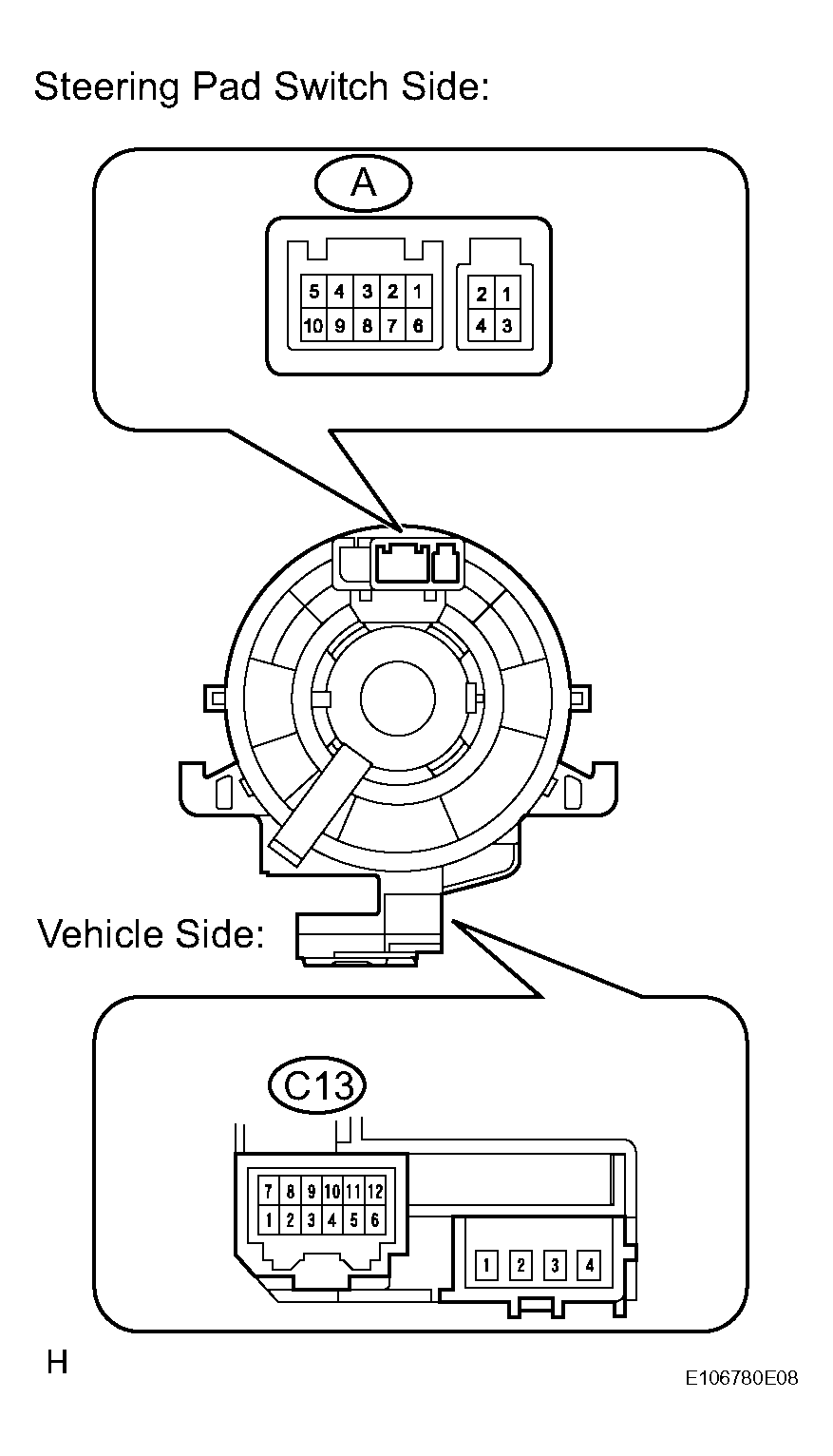

Fig 3: Inspecting Spiral Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Disconnect the distance control ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   C13-11 - D2-16 (MODE)	Always	Below 1 Ω
   D2-16 (MODE) - Body ground	Always	10 kΩ or higher

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

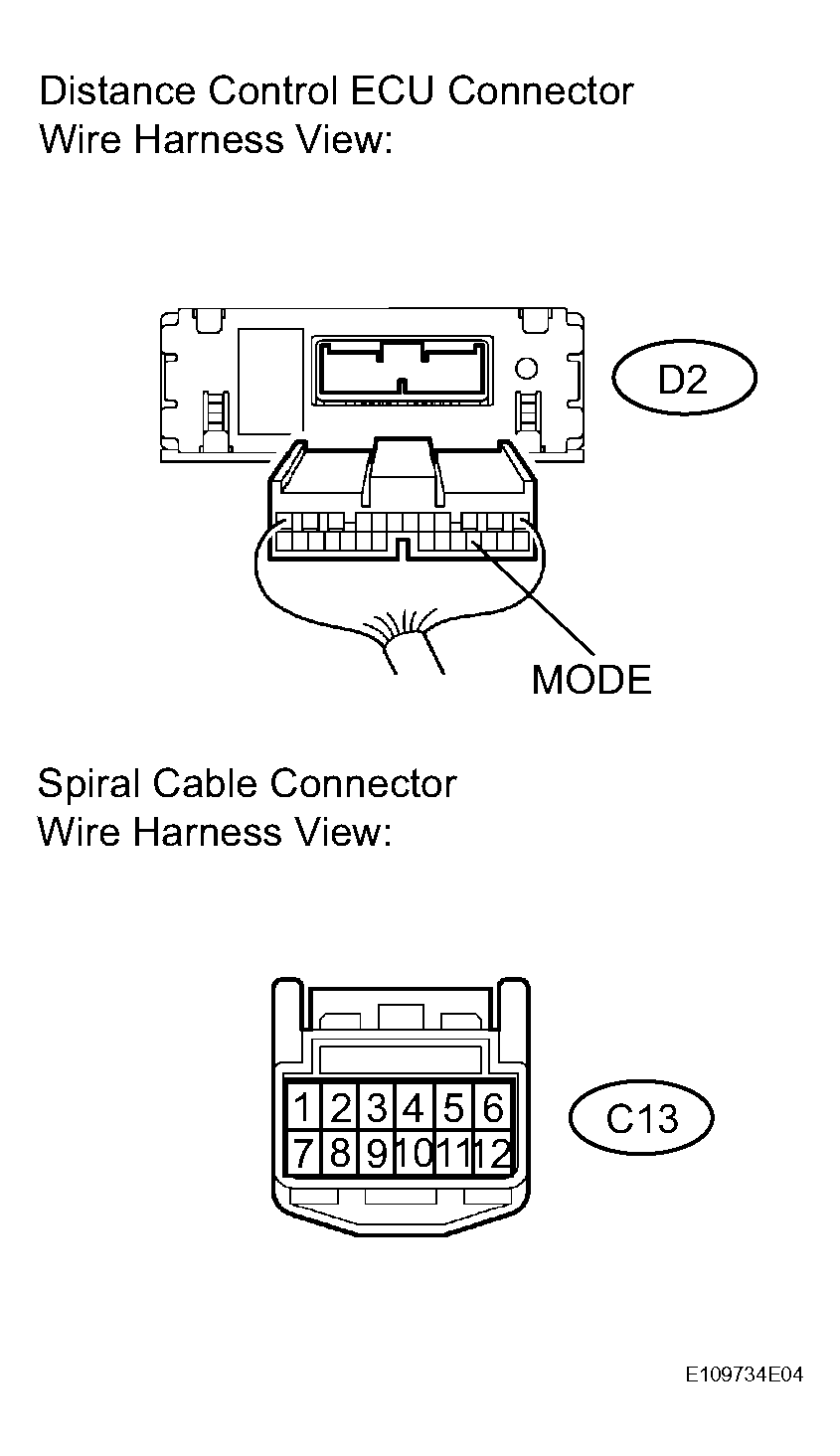

Fig 4: Identifying Terminals Of Distance Control ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   C13-2 - Body ground	Always	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

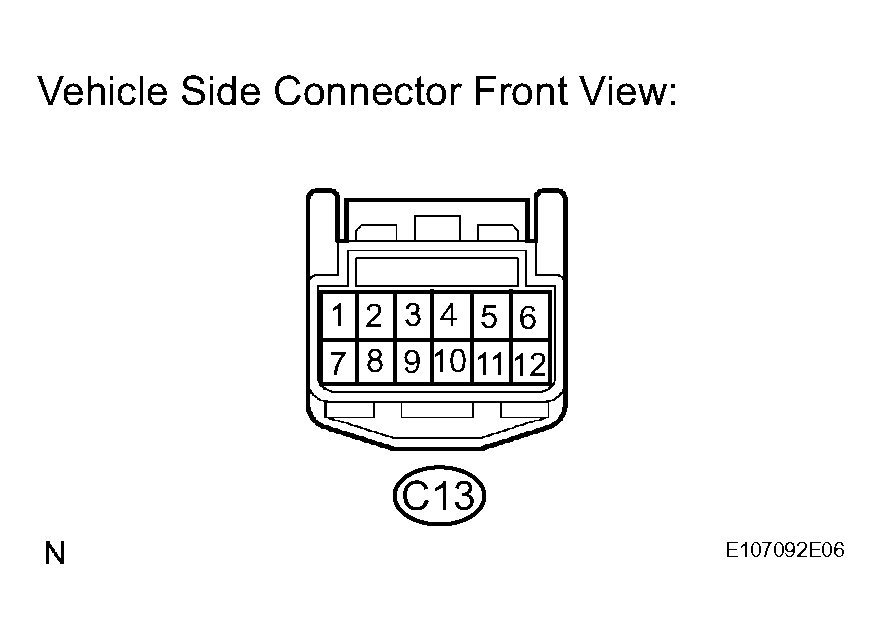

Fig 5: Identifying Terminals Of Connector C13

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Remove the distance control ECU (cruise control ECU) with the connector.
2. Turn the ignition switch on.
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D2-16 (MODE) - Body ground	Distance control switch ON	0 to 2 V
   D2-16 (MODE) - Body ground	Distance control switch OFF	9 to 16 V

NG : REPLACE DISTANCE CONTROL ECU

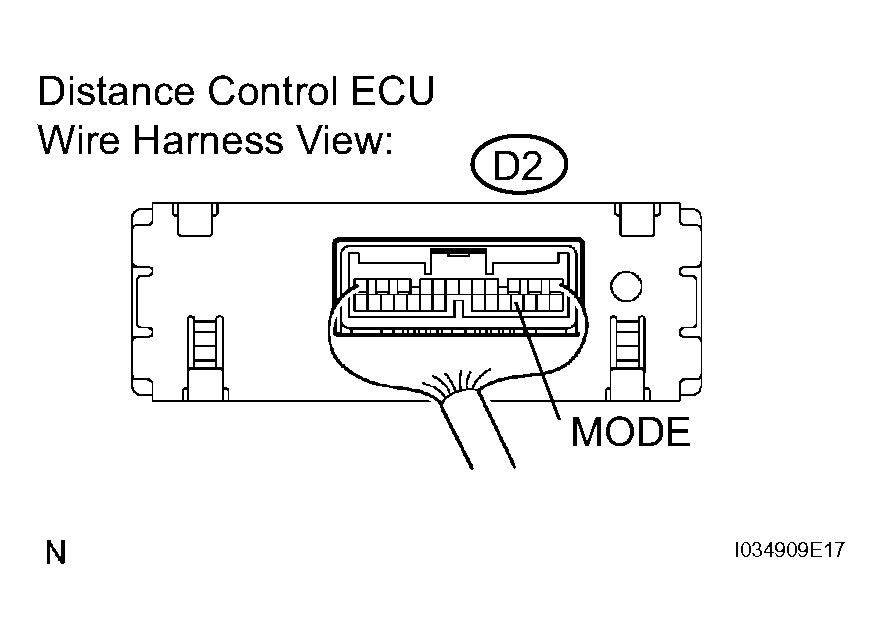

Fig 6: Identifying Connector D2 Of Distance Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
