Laser Sensor Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

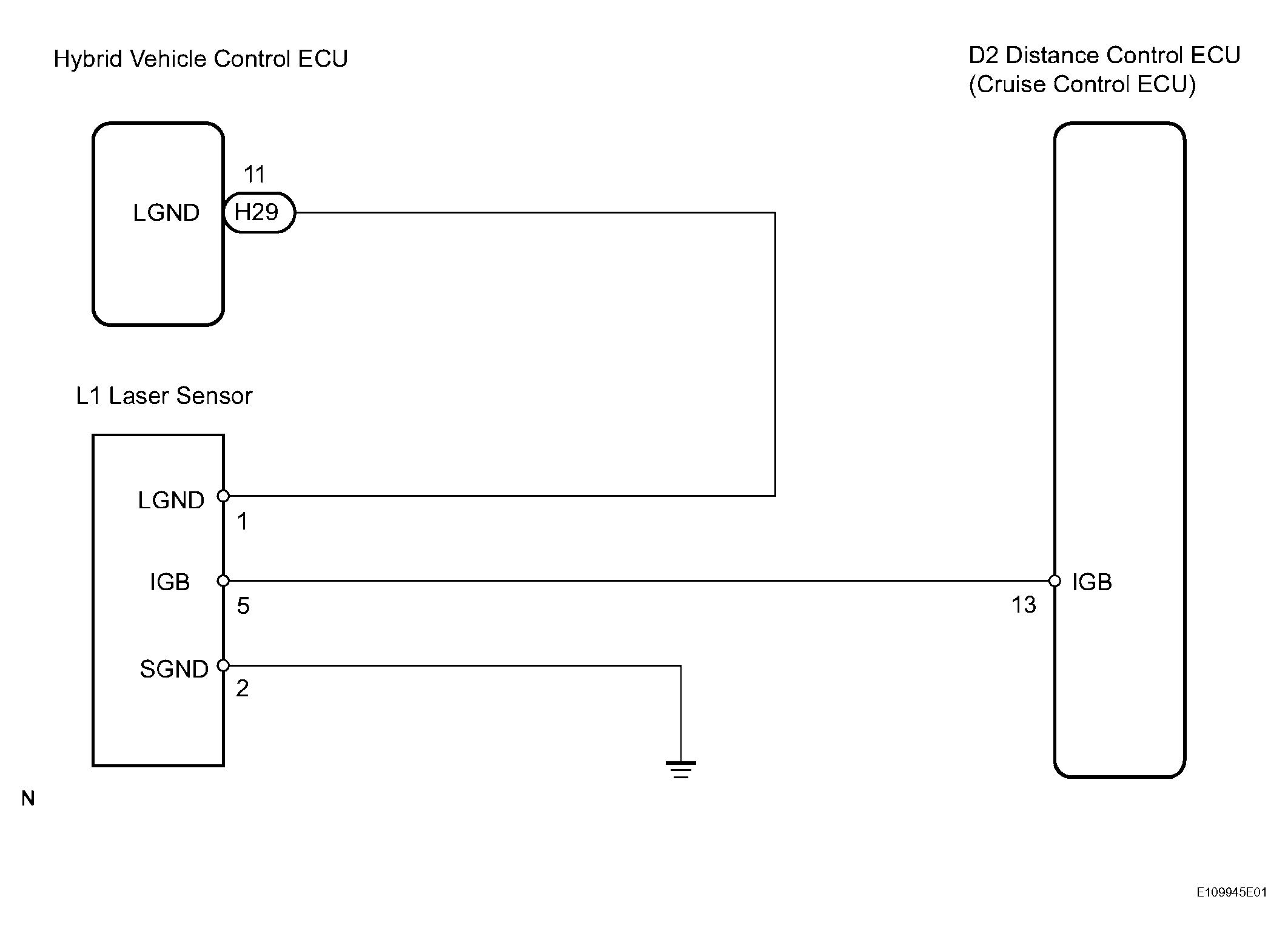

Fig 1: Wiring Diagram - Laser Sensor Power Source Circuit
G04114877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. CHECK CRUISE CONTROL ECU ASSY (IGB VOLTAGE)
    1. Disconnect the L1 sensor connector.
    2. Measure the voltage of the wire harness side connector.

      Standard voltage

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      L1-5 (IGB) - Body ground Ignition switch on 10 to 16 V

    NG : Go to step   3

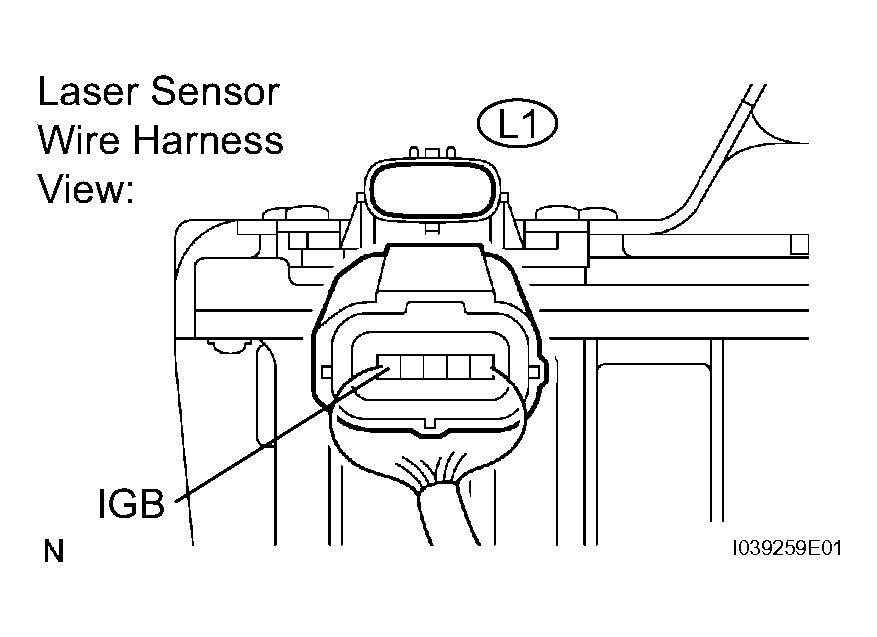

    Fig 2: Identifying L1 Sensor Connector
    G04114878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  2. CHECK WIRE HARNESS (LASER RADAR SENSOR - HYBRID CONTROL ECU AND BODY GROUND)
    1. Disconnect the L1 sensor connector.
    2. Disconnect the H29 hybrid vehicle control ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      H29-11 (LGND) - L1-1 (LGND) Below 1 Ω
      H29-11 (LGND) - Body ground 10 kΩ or higher
      L1-2 (SGND) - Body ground Below 1 Ω

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

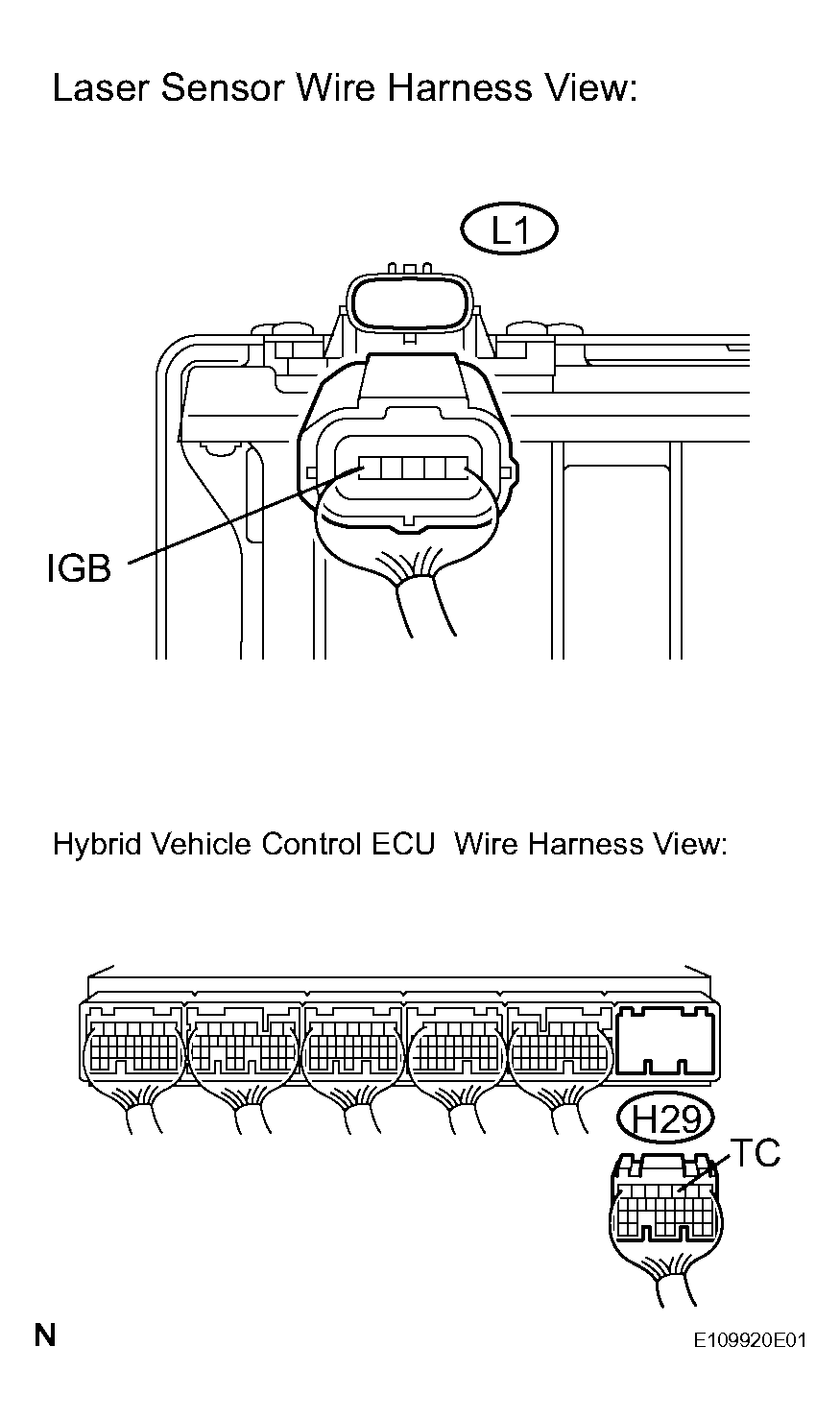

    Fig 3: Identifying H29 Hybrid Vehicle Control ECU Connector
    G04114879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

  3. CHECK WIRE HARNESS (LASER RADAR SENSOR - DISTANCE CONTROL ECU)
    1. Disconnect the L1 sensor connector.
    2. Disconnect the D2 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      L1-5 (IGB) - D2-13 (IGB) Below 1 Ω
      D2-13 (IGB) - Body ground 10 kΩ or higher

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

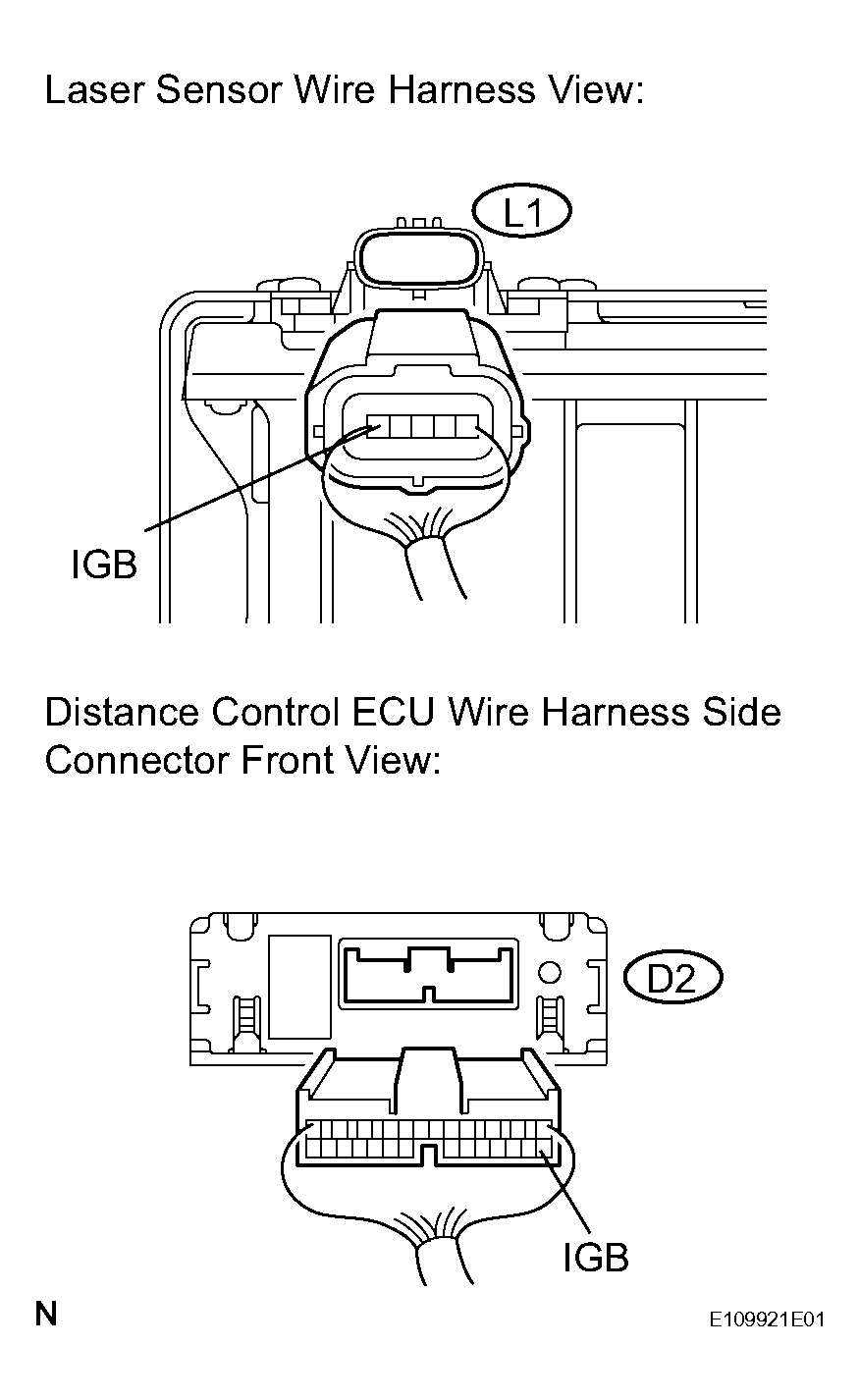

    Fig 4: Identifying L1 And D2 ECU Connector
    G04114880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
