Laser Sensor: Installation
WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL LASER SENSOR
- Connect the connector.

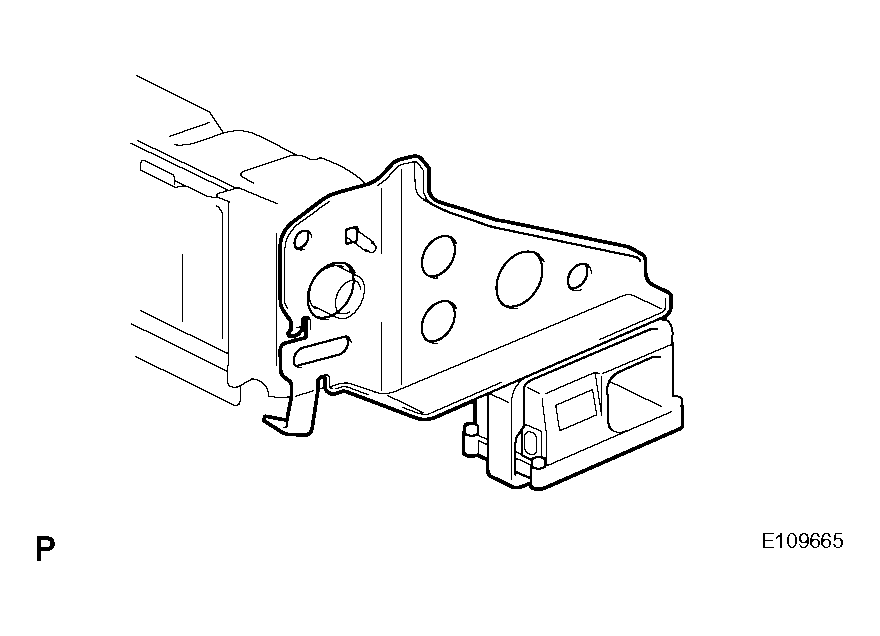

- Hang the laser sensor onto the RH side member.NOTE: Do not install the laser sensor if it has been damaged or impacted in any way.
- INSTALL FRONT BUMPER REINFORCEMENT (See REASSEMBLY )
- INSTALL FRONT BUMPER ENERGY ABSORBER
- INSTALL FRONT BUMPER ASSEMBLY
- INSTALL FRONT BUMPER STAY CENTER
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- ADJUST LASER SENSOR (See 1 )
- PERFORM INITIALIZATION NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal. (See INITIALIZATION )
