DTC 01-DF Master Error: Description

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

DTC DETECTION CONDITION CHART

DTC No.	DTC Detection Condition	Trouble Area
01-DF *1	The device with a display fails and the master is switched to the audio device When a communication error between sub-master (radio receiver) and master occurs, this code is stored	Multi-display power source circuit AVC-LAN circuit between the multi-display and the component which has stored this code AVC-LAN circuit between the multi-display and the radio receiver Multi-display Component which has stored this code
HINT: *1: When 210 seconds have elapsed after disconnecting the power supply connector of the master component with the ignition switch in the ACC or ON position, this code is stored.

NOTE:

Before starting troubleshooting, be sure to clear DTCs to erase codes stored due to the reasons described in the HINT above. Then, check for DTCs and troubleshoot according to the output DTCs.
The multi-display is the master unit.
Be sure to clear and recheck DTCs after the inspection is completed to confirm that no DTCs are output.

NOTE: Be sure to read DESCRIPTION before performing the following procedures.

CHECK MULTI-DISPLAY POWER SOURCE CIRCUIT
Refer to MULTI-DISPLAY POWER SOURCE CIRCUIT .

If the power source circuit is operating normally, proceed to the next step.

INSPECT RADIO RECEIVER

Disconnect the radio receiver connectors.

Measure the resistance according to the value(s) in the table below.

Resistance

CONNECTOR TERMINAL RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
ATX+ (R2-5) - ATX- (R2-15)	Always	60 to 80 Ω
TX+ (R3-9) - TX- (R3-10)	Always	60 to 80 Ω
TX+ (R4-9) - TX- (R4-10)	Always	60 to 80 Ω

NG: REPLACE RADIO RECEIVER

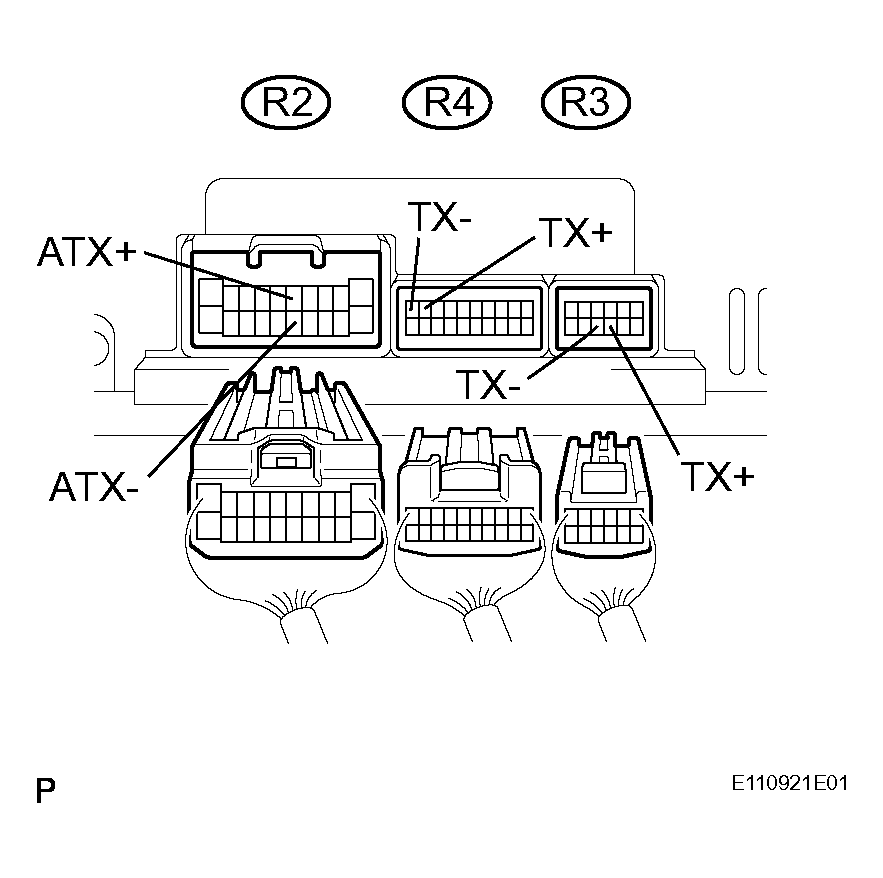

Fig 1: Identifying Radio Receiver Connectors Connector terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP.

IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE

Enter the diagnostic mode.
Press the "LAN Mon" switch to change to "LAN Monitor" mode.

Identify the component which has stored this code.

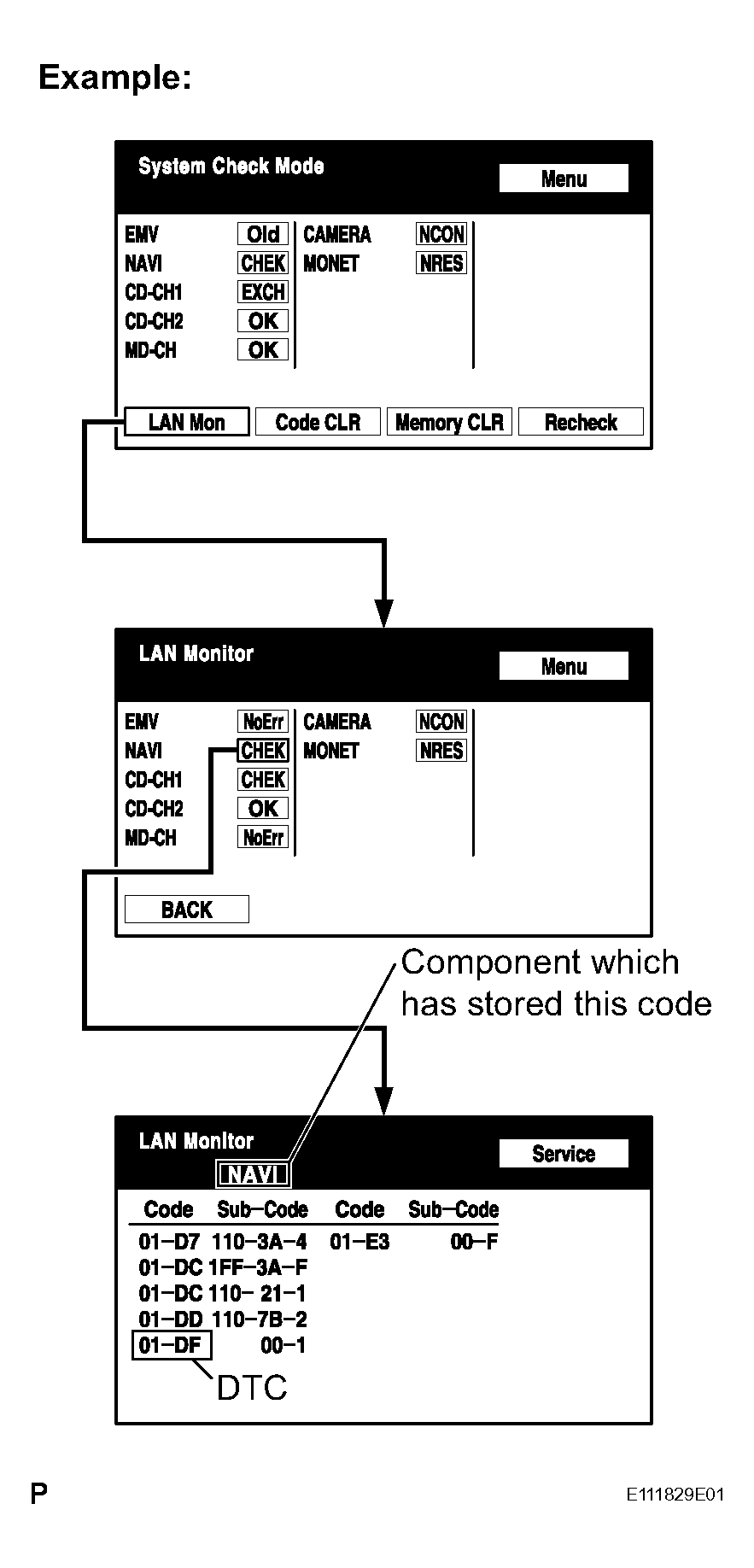

Fig 2: LAN Monitor Mode Change Display

Component Table

COMPONENT REFERENCE

Display	Component
AUDIO H/U	Radio receiver
DSP-AMP	Stereo component amplifier
G/W	Gateway ECU
NAVI	Navigation ECU
CAMERA	Television camera ECU
RSE	Multi-display controller

HINT:

"NAVI" is the component which has stored this code in the example shown in the illustration.

CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - COMPONENT WHICH HAS STORED THIS CODE)
HINT:

For details of the connectors, refer to "TERMINALS OF ECU " .
1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the multi-display and the component which has stored this code.
  1. Check for an open or short in the AVC-LAN circuit between the multi-display and the component which has stored this code.
    OK: There is no open or short circuit.

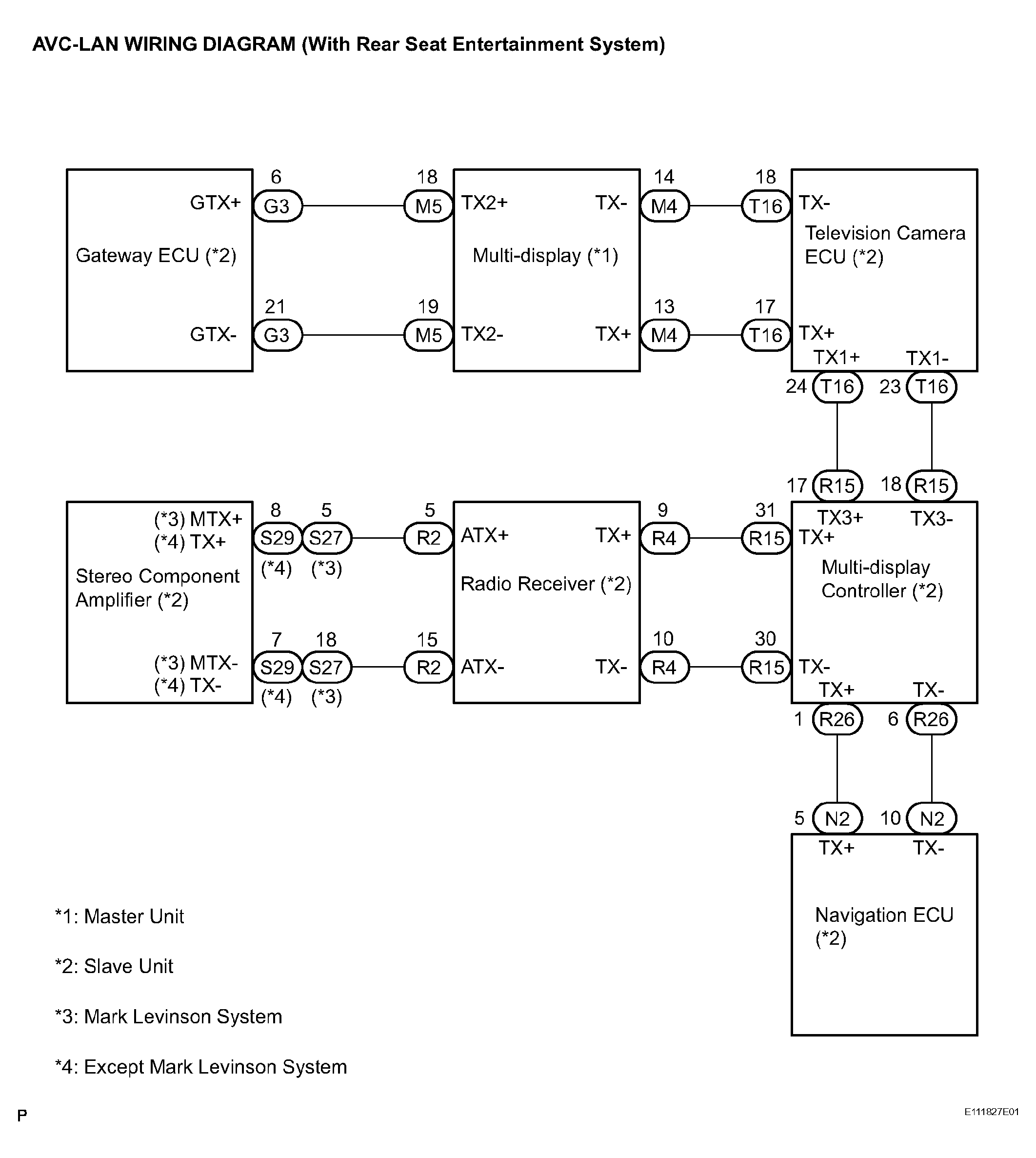

    Fig 3: AVC-LAN Communication - Wiring Diagram (With Rear Seat Entertainment System)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

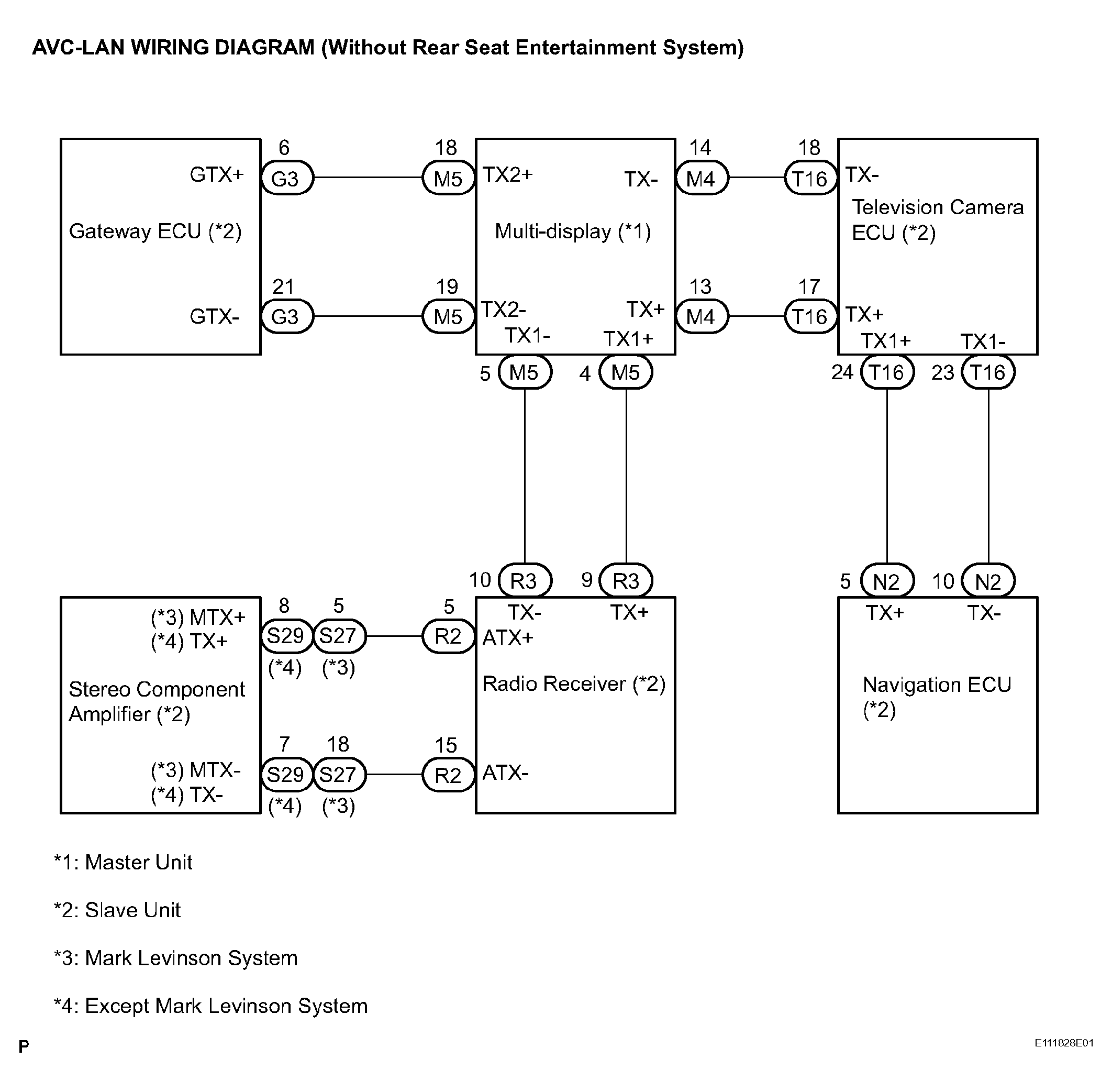

    Fig 4: AVC-LAN - Wiring Diagram (Without Rear Seat Entertainment System)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP.
CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - RADIO RECEIVER)
HINT:

For details of the connectors, refer to "TERMINALS OF ECU " .
1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the multi-display and the radio receiver.
  1. Check for an open or short in the AVC-LAN circuit between the multi-display and the radio receiver.
    OK: There is no open or short circuit.

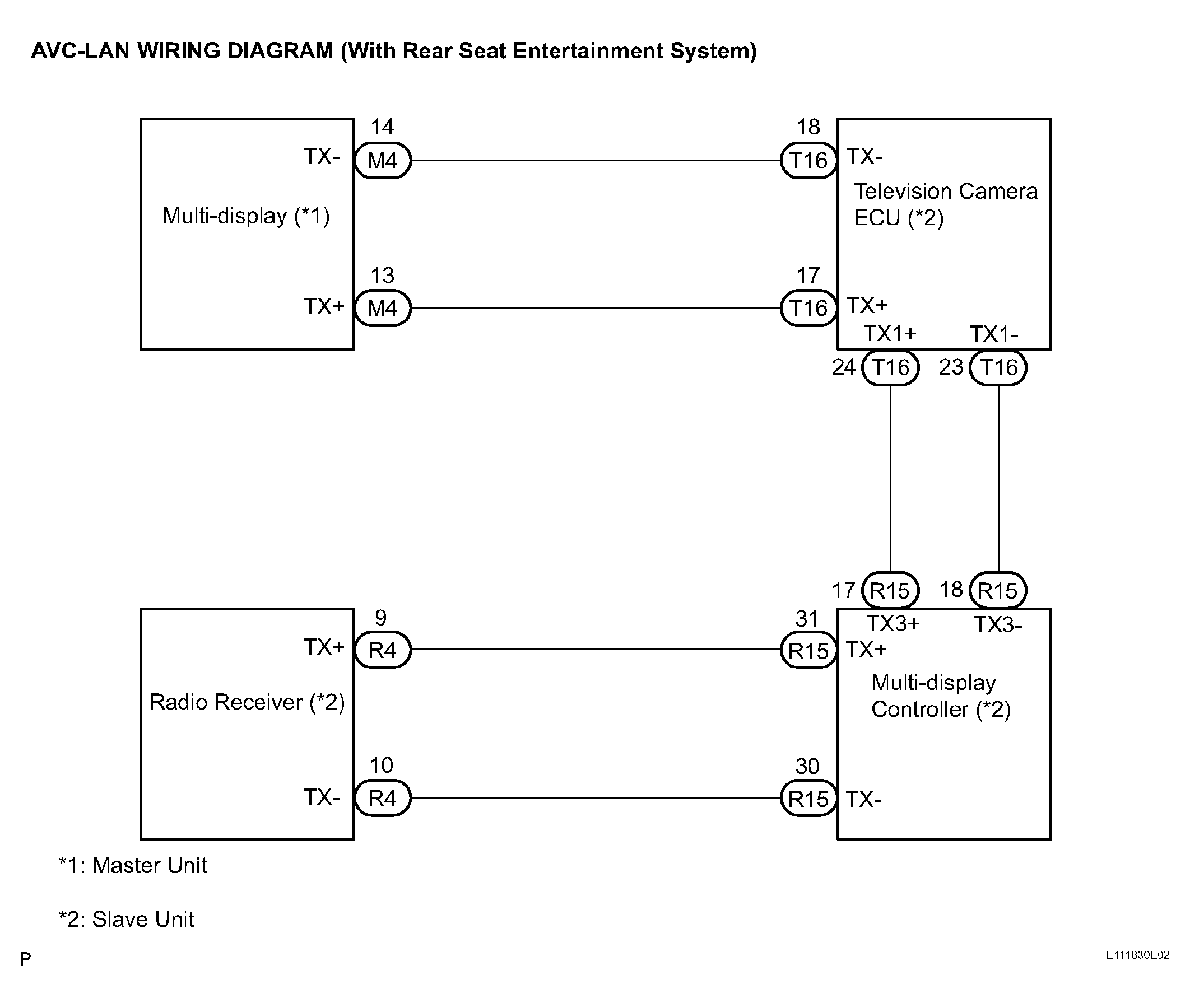

    Fig 5: AVC-LAN Communication Wiring Diagram (With Rear Seat Entertainment System)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

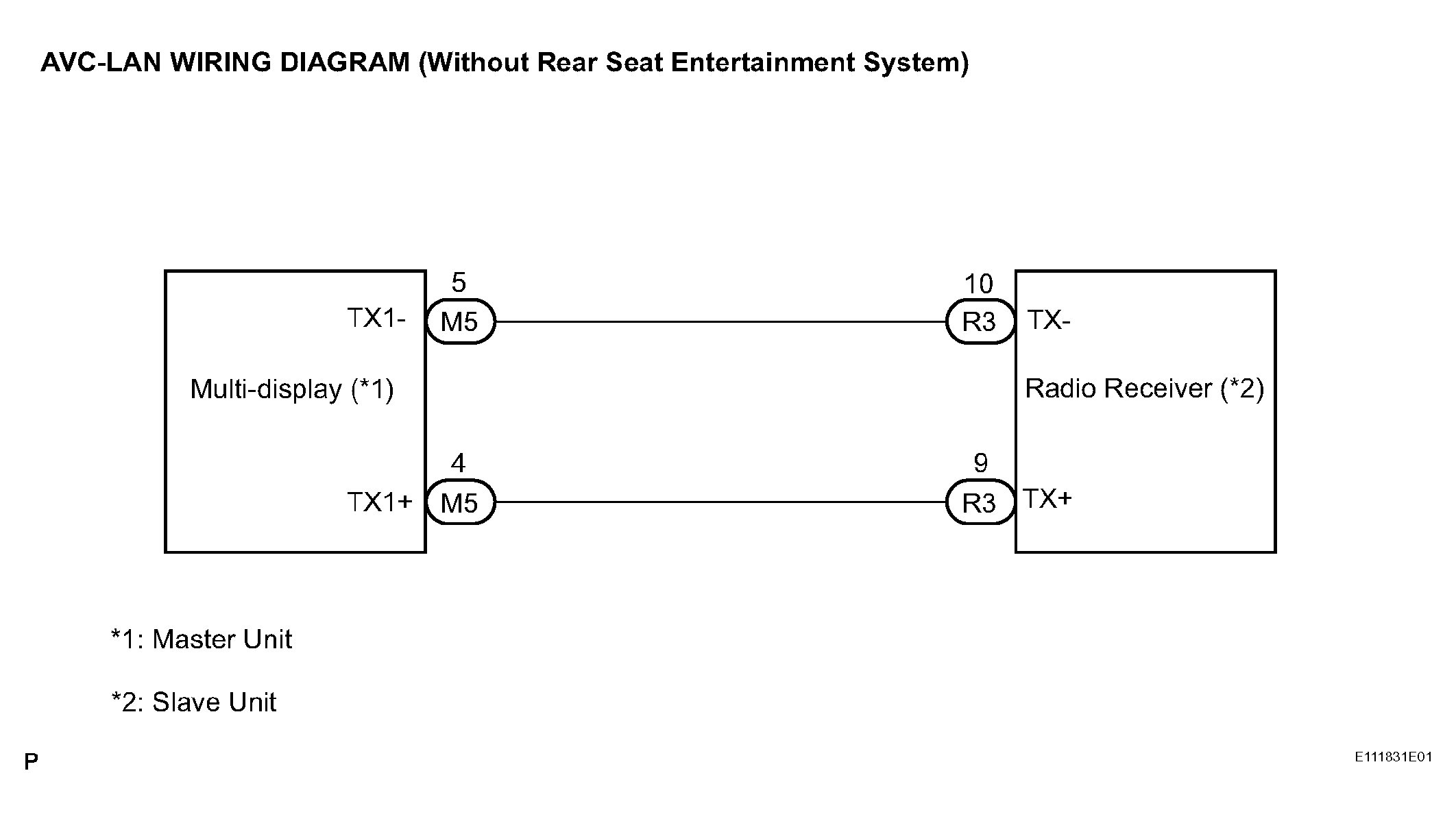

    Fig 6: AVC-LAN Communication Wiring Diagram (Without Rear Seat Entertainment System)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP.
REPLACE MULTI-DISPLAY
1. Replace the multi-display with a normal one and check if the same problem occurs again.
  OK: Same problem does not occur.
NG: REPLACE COMPONENT WHICH HAS STORED THIS CODE

OK: END
