Cruise Control Main Switch: Installation: Installation

WARNING: This page is about a different car, the 2010 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CRUISE CONTROL MAIN SWITCH
1. Install the switch with the 2 screws.

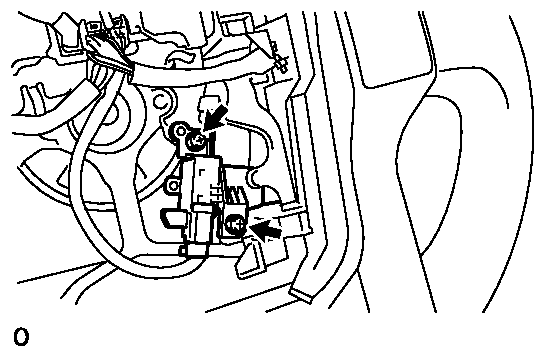

  Fig 1: Locating Screws And Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.

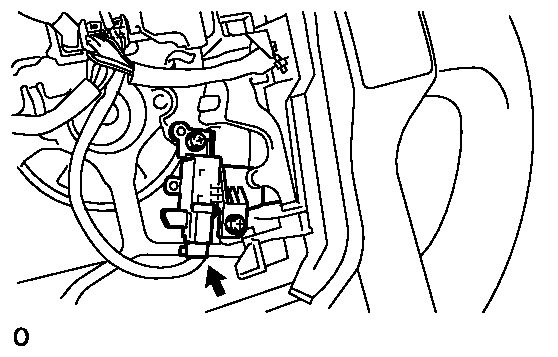

  Fig 2: Locating Cruise Control Main Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
INSTALL LOWER NO. 2 STEERING WHEEL COVER . Refer to INSTALLATION - Step 3
INSTALL LOWER NO. 3 STEERING WHEEL COVER . Refer to INSTALLATION - Step 2
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
CHECK SRS WARNING LIGHT
1. Check the SRS warning light. Refer to DIAGNOSIS SYSTEM .
