VVT Sensor: Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

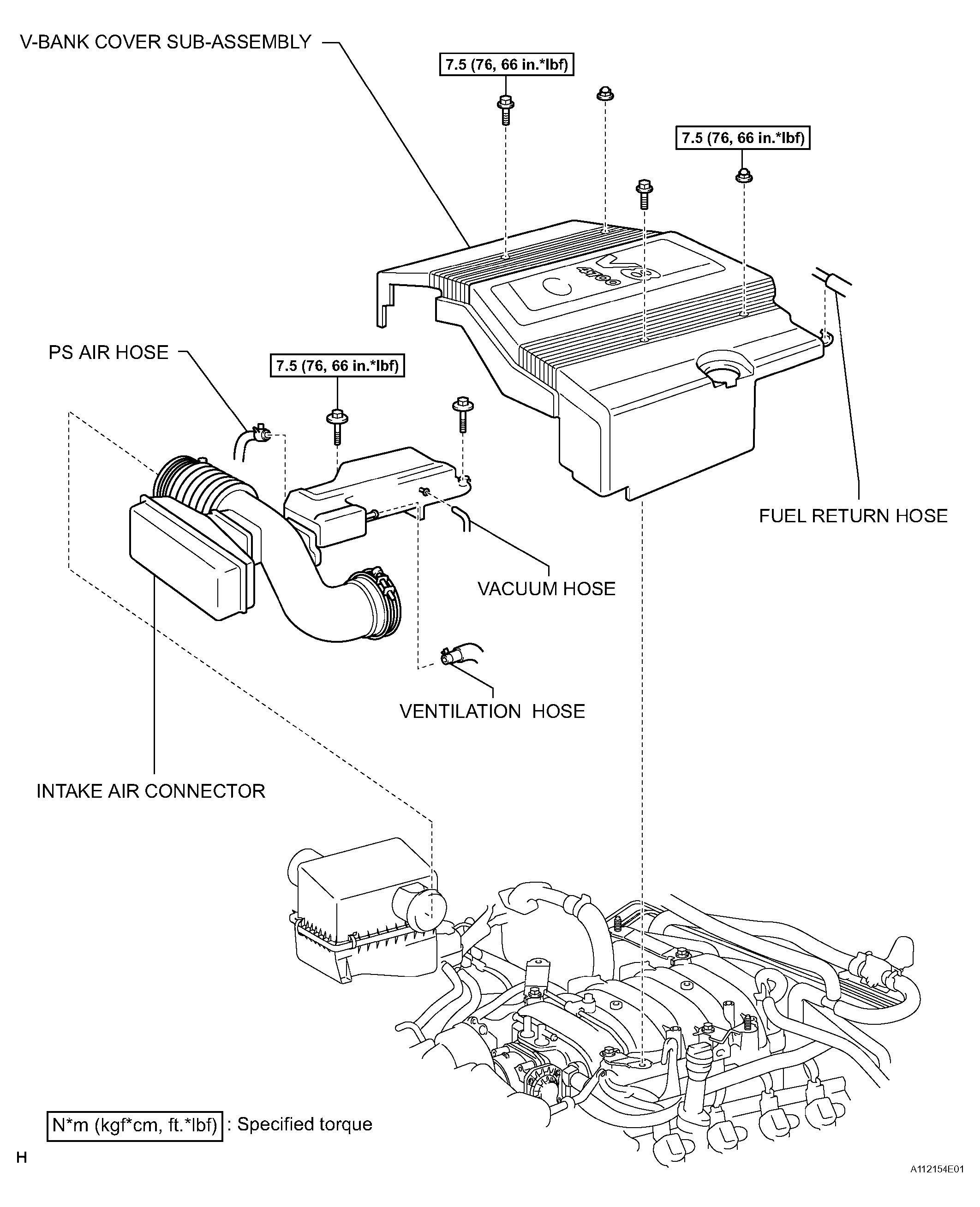

Fig 1: Identifying VVT Sensor Components & Replacements (1 Of 3)
G04436343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

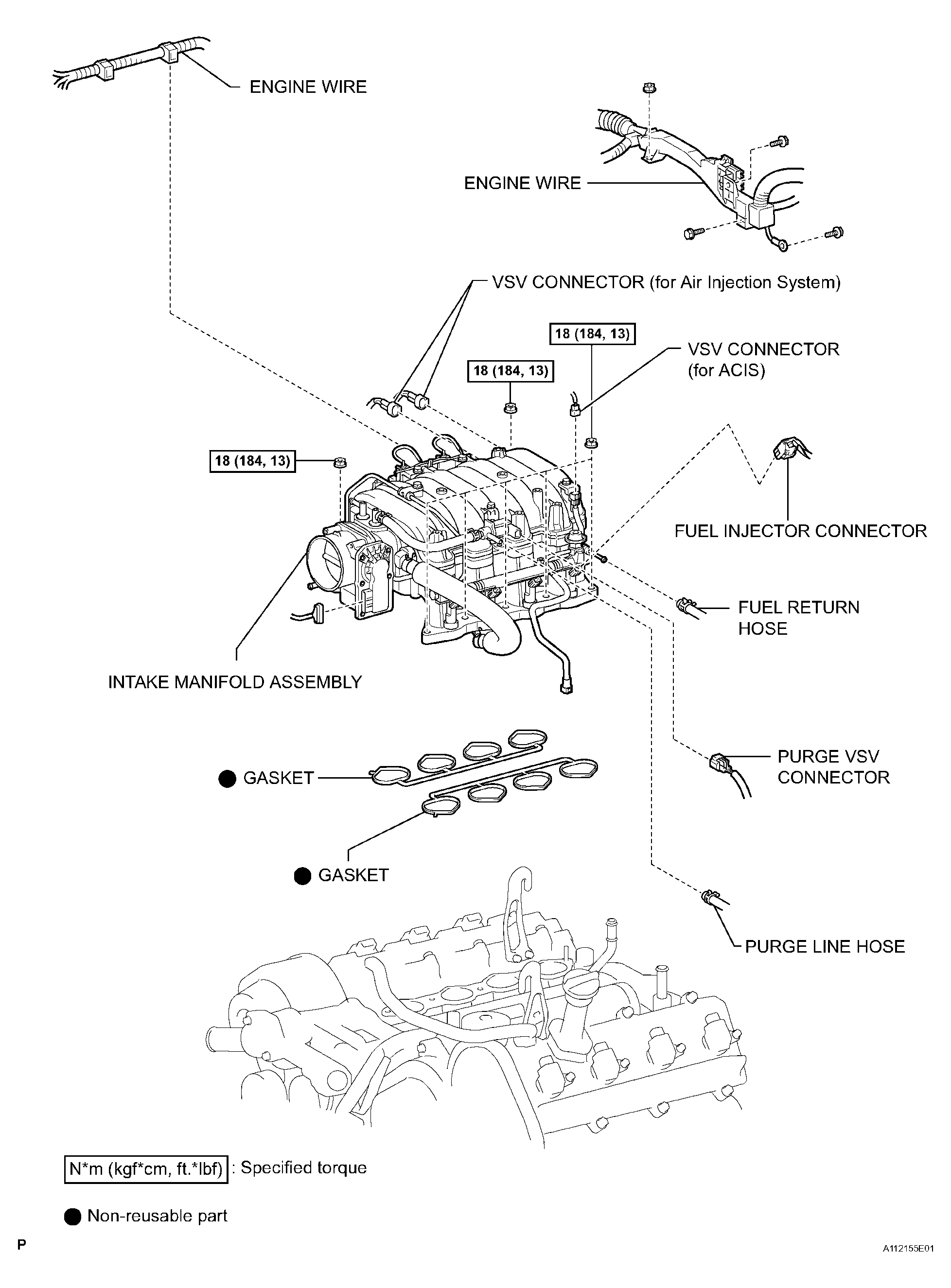

Fig 2: Identifying VVT Sensor Components & Replacements (2 Of 3)
G04436344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

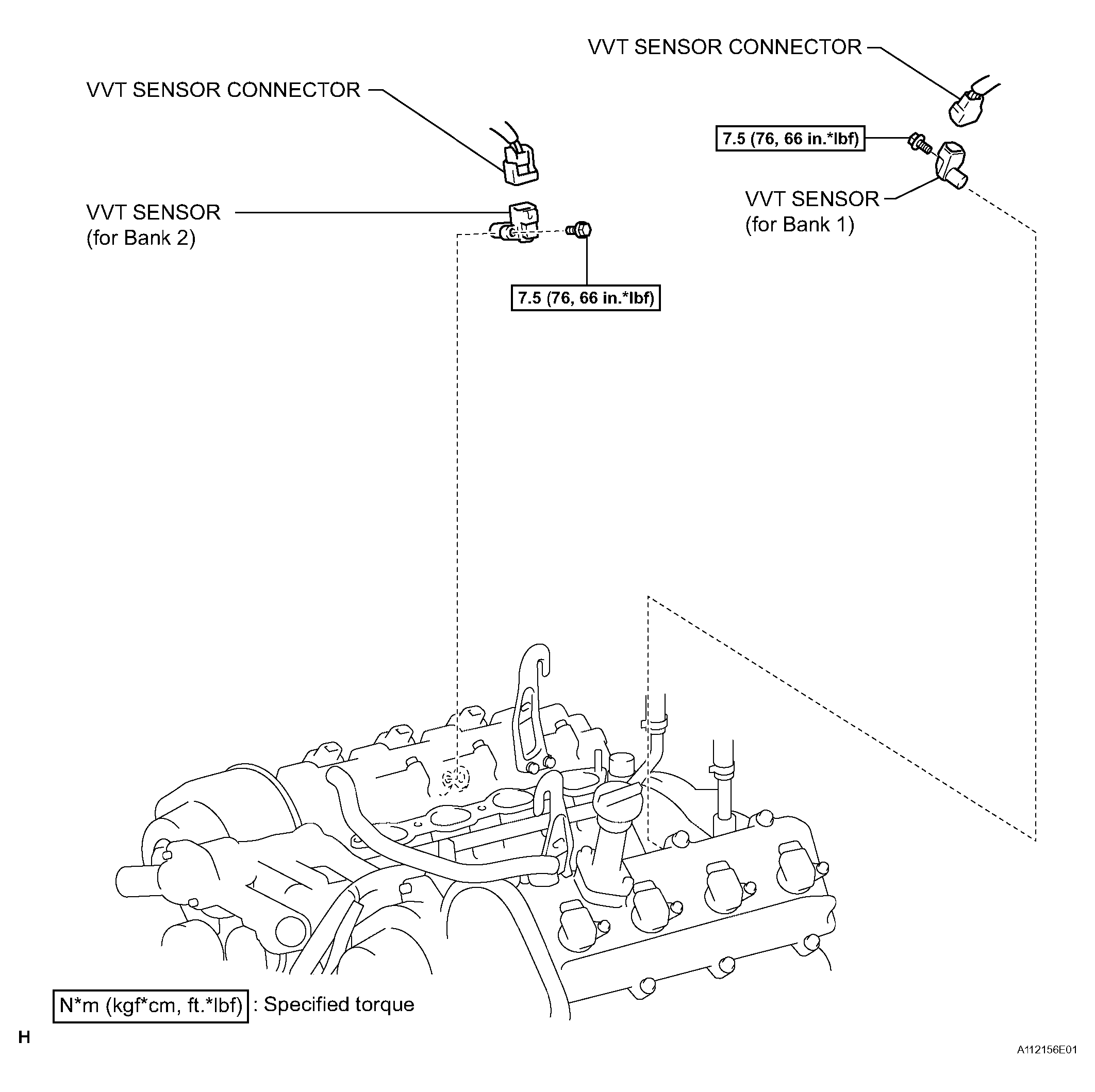

Fig 3: Identifying VVT Sensor Components & Replacements (3 Of 3)
G04436345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
