Air Conditioning Control Assembly: Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

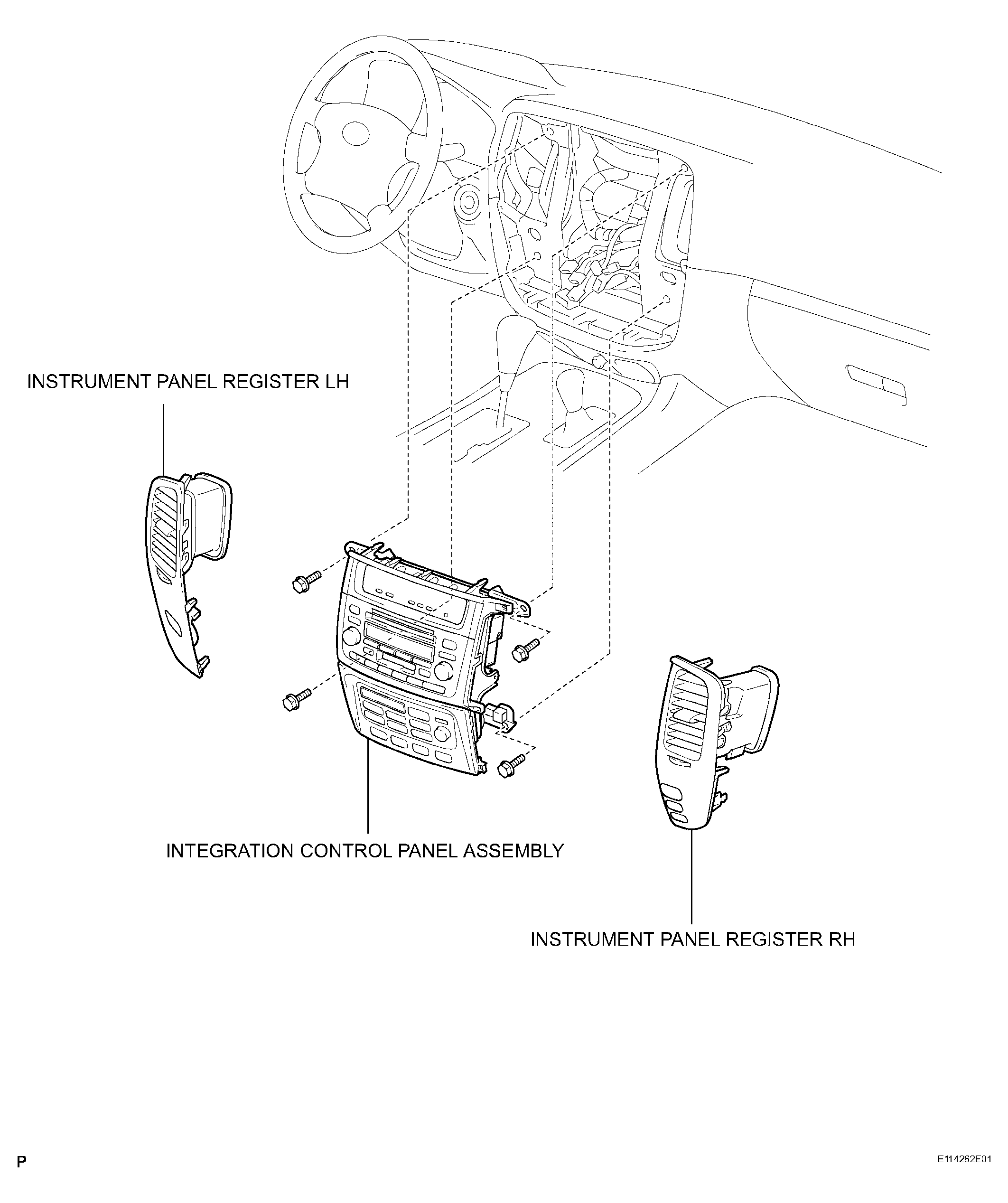

Fig 1: Identifying Air Conditioning Control Assembly Components (1 Of 3)
G04440653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

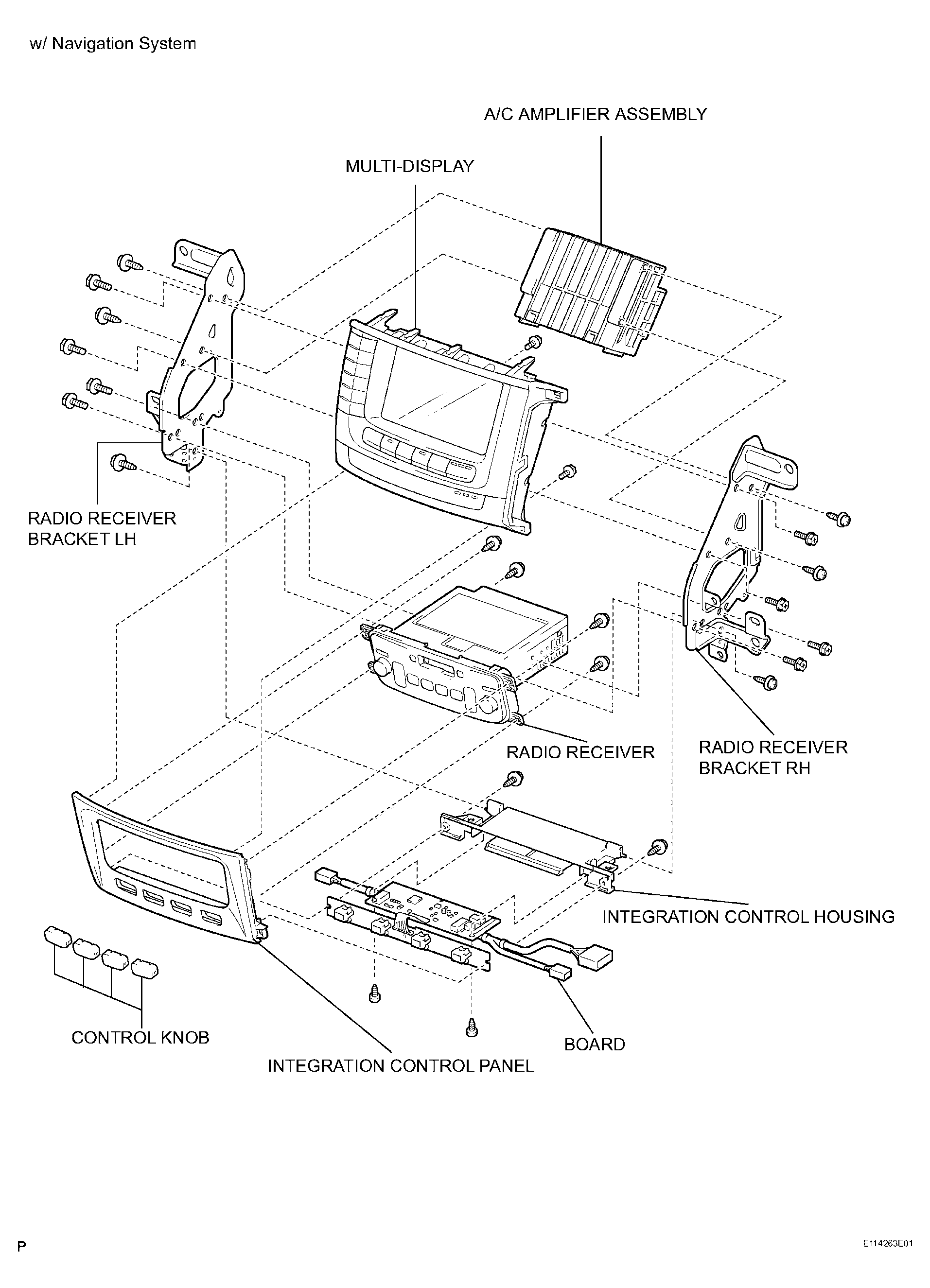

Fig 2: Identifying Air Conditioning Control Assembly Components (2 Of 3)
G04440654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

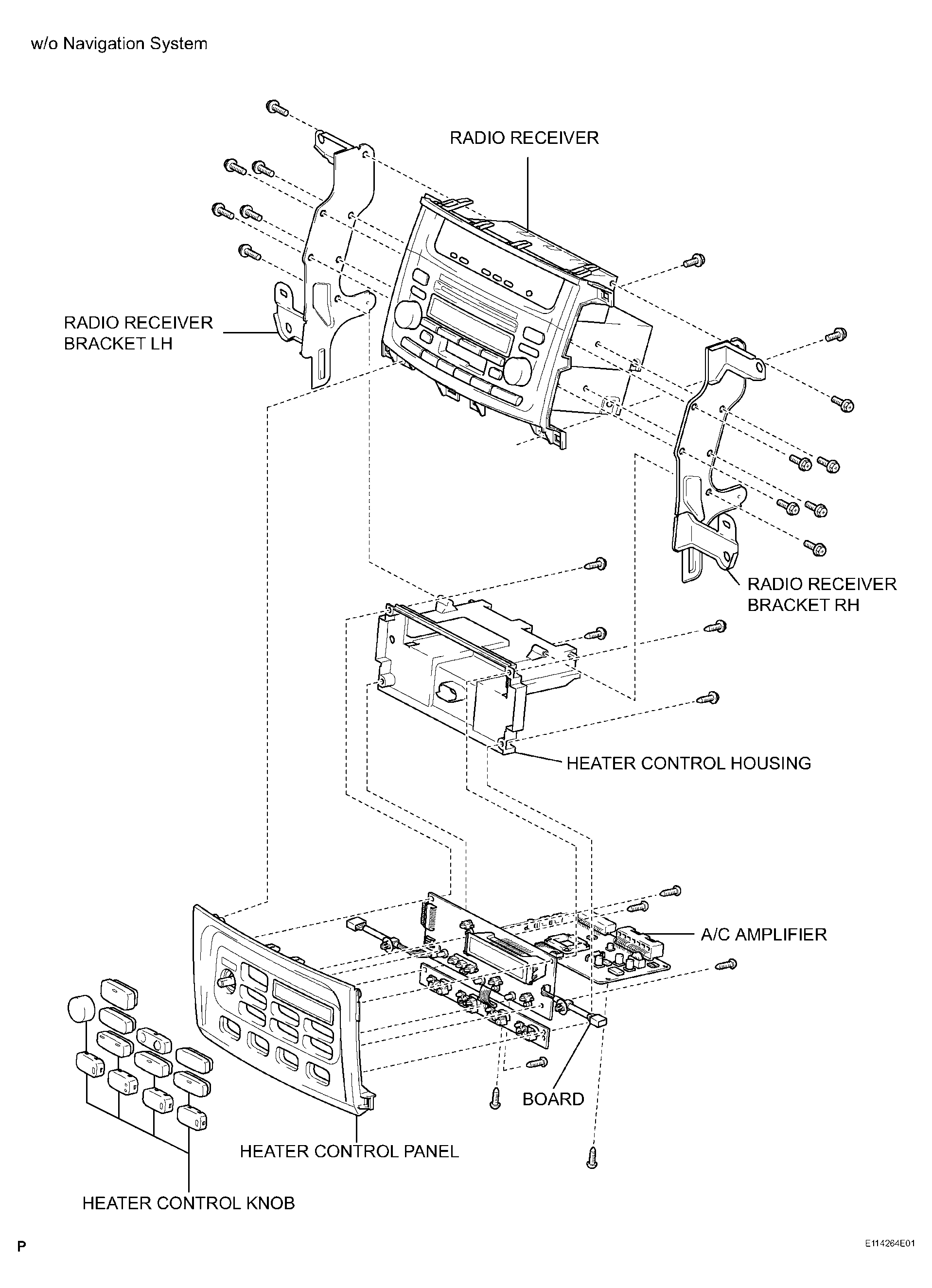

Fig 3: Identifying Air Conditioning Control Assembly Components (3 Of 3)
G04440655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
