Cruise Control Main Switch: Inspection

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      3 - 4 +/RES 216 to 264 Ω
      -/SET 567 to 693 Ω
      CANCEL 1,386 to 1,694 Ω
      Cruise control switch ON Below 1 Ω
      Cruise control switch OFF 10 kΩ or higher

      If the result is not as specified, replace the switch assembly.

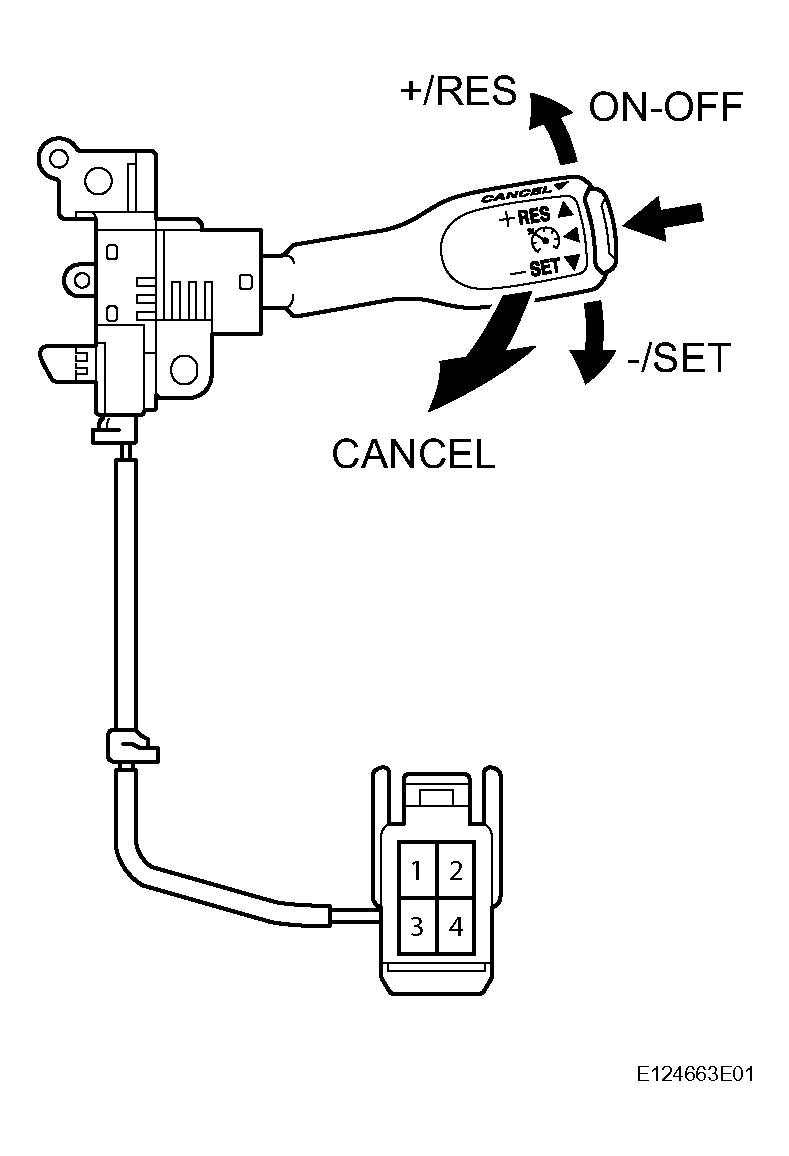

      Fig 1: Inspecting Cruise Control Main Switch
      G04490716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
