License Plate Light Assembly: Reassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LICENSE PLATE LIGHT BULB
    1. Install the bulb to the socket.
    2. Insert the bulb/socket unit into the headlight.
    3. Turn the bulb/socket unit in the direction indicated by the arrow to install it.

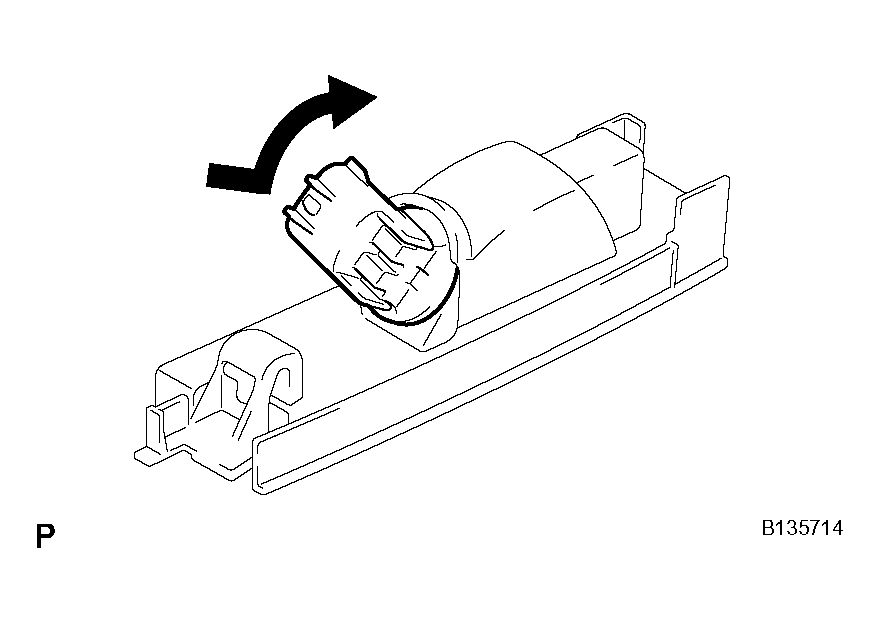

      Fig 1: Installing License Plate Light Bulb
      G04490850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
