Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WIRE HARNESS (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)

Disconnect the E62 receiver connector.
Disconnect the L13 amplifier connector.
Measure the resistance of the wire harness side connectors.

Standard resistance

STANDARD RESISTANCE SPECIFICATIONS

Tester Connection	Specified Condition
E62-7 (MUTE) - L13-1 (MUTE)	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

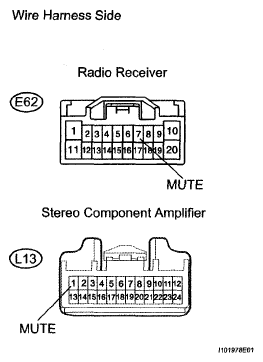

Fig 1: Identifying E62 And L13 Connectors Terminals

OK: GO to next step

INSPECT STEREO COMPONENT AMPLIFIER ASSEMBLY
1. Replace the stereo component amplifier and check if it operates normally.
OK:

The audio system operates normally.

OK: OK (REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY)

NG: REPLACE RADIO RECEIVER ASSEMBLY
