Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT COMBINATION METER (SPEEDOMETER)
    1. Drive the vehicle and check that the function of the speedometer on the combination meter is normal.

      OK:

      Actual vehicle speed and the speed indicated on the speedometer are the same.

      NG:  GO TO METER / GAUGE SYSTEM

      OK: GO to next step

  2. CHECK HARNESS AND CONNECTOR (COMBINATION METER - RADIO RECEIVER, STEREO COMPONENT AMP.)
    1. Disconnect the E19 meter connector.
    2. Disconnect the L13 (*1) amplifier or E49 (*2) receiver connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATIONS

      Tester Connection Specified Condition
      E19-39 (+S) - L13-11 (SPD) (*1) Below 1 Ω
      E19-39 (+S) - E49-3 (SPD) (*2) Below 1 Ω
      HINT:
      *1: for Premium sound models
      *2: for Standard models

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

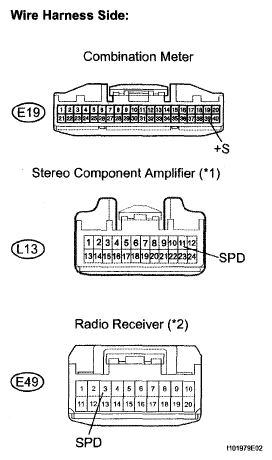

      Fig 1: Identifying E19 Meter Connector And L13 (*1) Amplifier Or E49 (*2) Receiver Connector
      G05184762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
