Connector Views

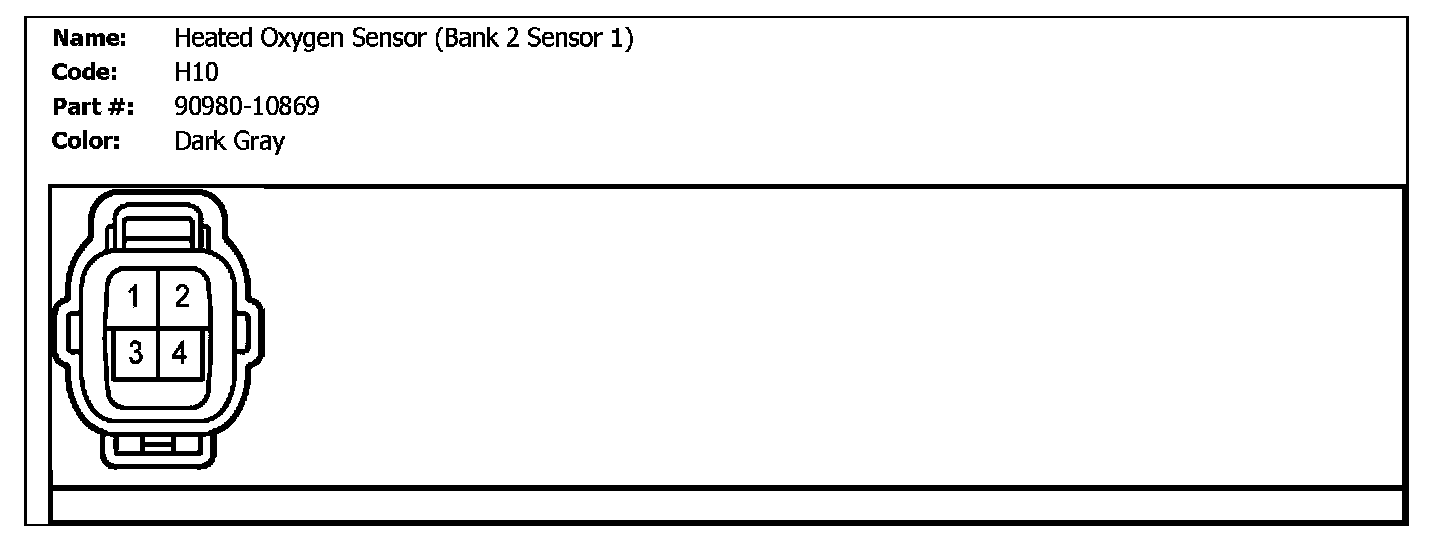

H10 (Heated Oxygen Sensor (Bank 2 Sensor 1)):

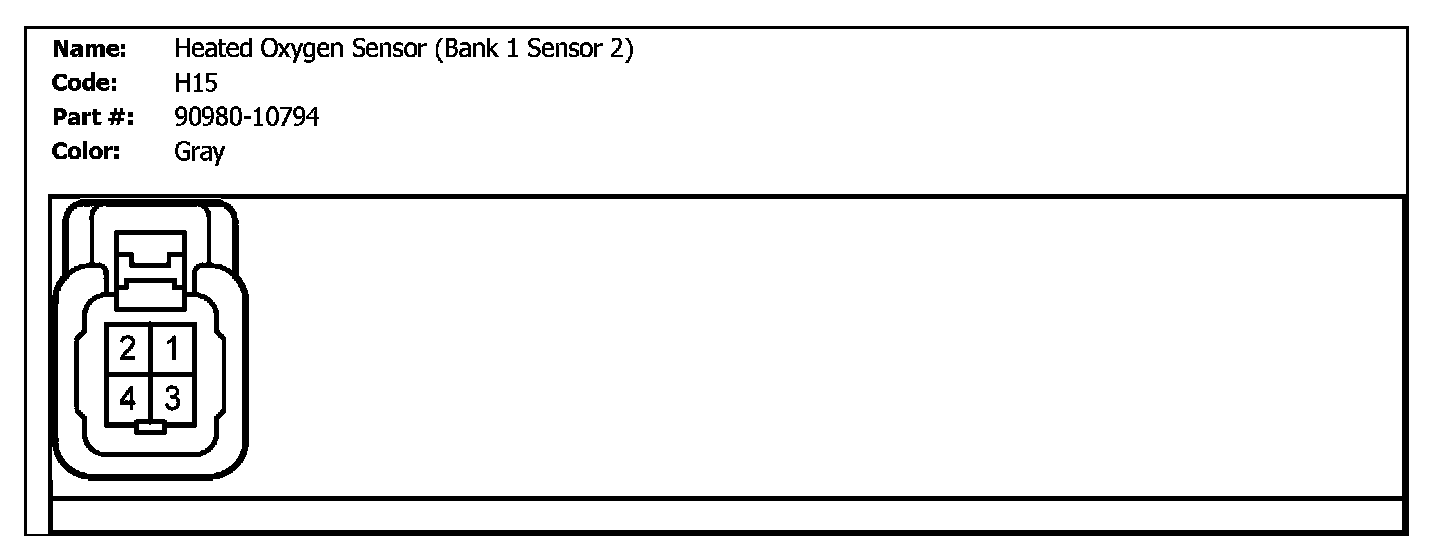

H15 (Heated Oxygen Sensor (Bank 1 Sensor 2)):

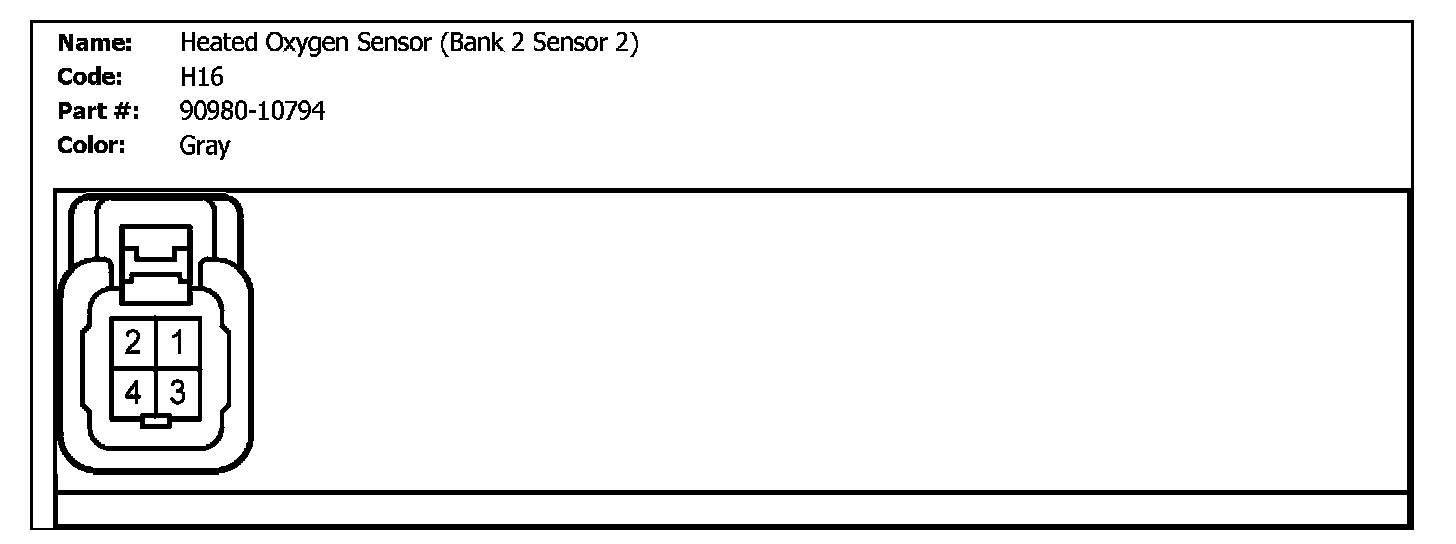

H16 (Heated Oxygen Sensor (Bank 2 Sensor 2)):

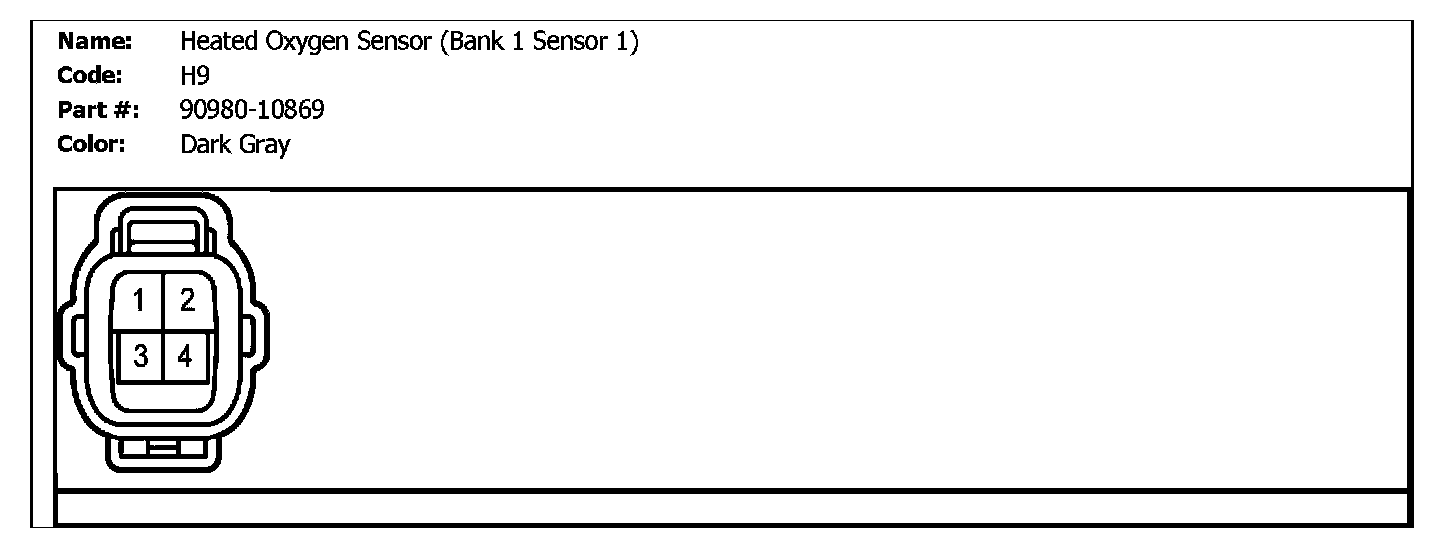

H9 (Heated Oxygen Sensor (Bank 1 Sensor 1)):
