Variable Valve Timing Actuator Position Sensor: Testing and Inspection

INSPECTION

1. INSPECT VVT SENSOR

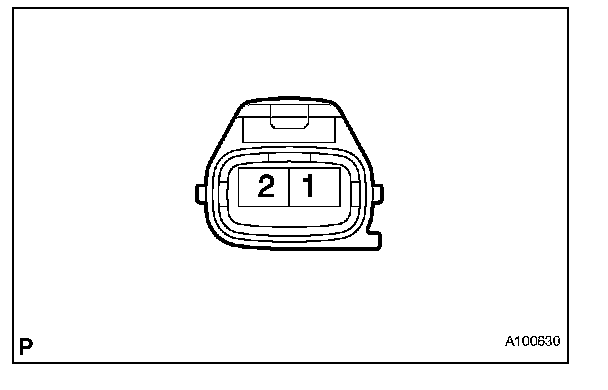

a. Measure the resistance between the terminals.

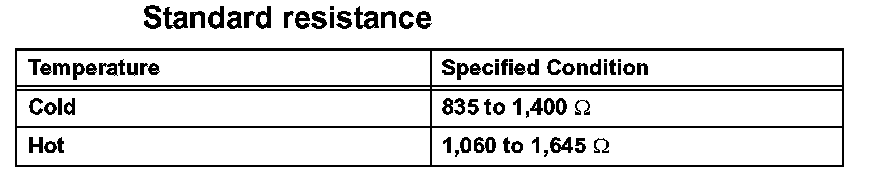

NOTE: In the table, the terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50 °C (14 to 122 °F). "Hot" means approximately 50 to 100 °C (122 to 212 °F).

If the resistance is not as specified, replace the sensor.
