DTC C1242/42 IG2 Power Source Circuit: Wiring Diagram

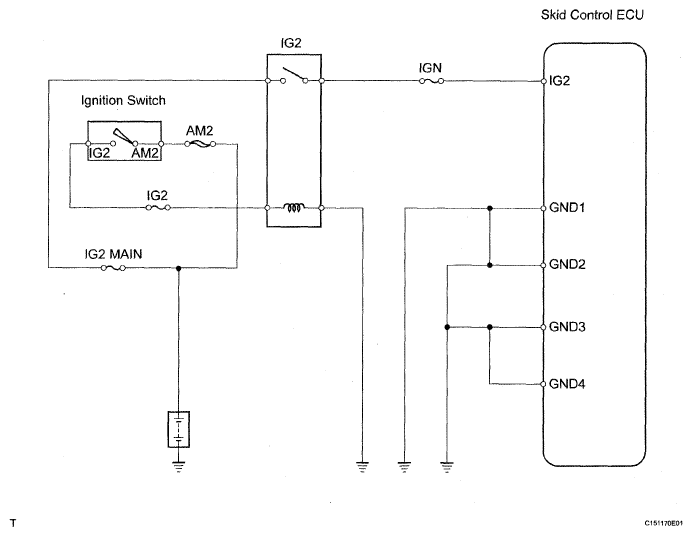

Fig 1: IG2 Power Source Circuit - Wiring Diagram
G05290650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
