DTC B1774 Pressure Sensor Circuit Malfunction; DTC B1775 Pressure function Sensor Power Source Circuit Malfunction: Wiring Diagram

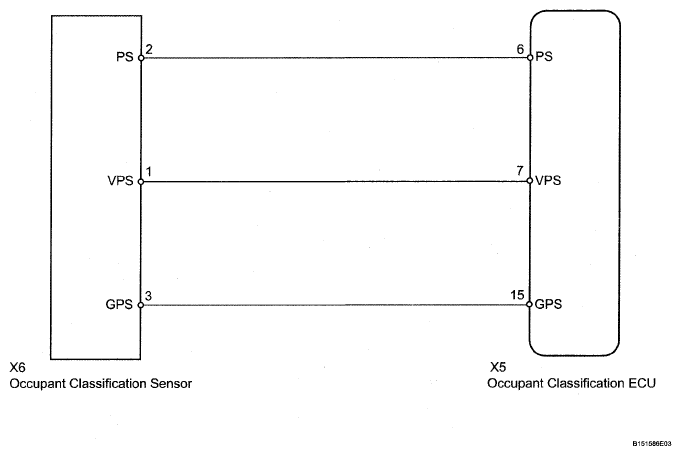

Fig 1: Occupant Classification Sensor - Wiring Diagram
G05292271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
