FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): Installation

1. Install the occupant classification sensor with the 2 clips.
2. Connect the connector to the connection in the bracket.

   HINT:

   If the connector cannot be connected securely, push the claws down on the bracket using a screwdriver.

3. Connect the connector.

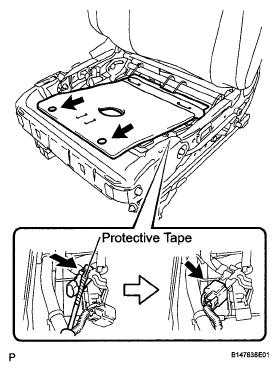

   Fig 1: Identifying Protective Tape

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the hooks.
2. Install the separate type front seat cushion assembly RH with the 2 clips.
   Fig 2: Identifying Front Seat Cushion Assembly RH Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the hooks.

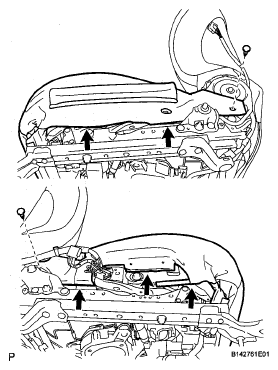

   Fig 3: Identifying Hooks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 4 hooks.
   Fig 4: Identifying Hooks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Engage the clamps.
   Fig 5: Identifying Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Engage the 2 hooks.
   Fig 6: Identifying Hooks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connector.
2. Install the front power seat switch RH with the 3 screws.
   Fig 7: Identifying Front Power Seat Switch RH Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and clip.
2. Install the front seat inner cushion shield LH with the screw.
   Fig 8: Identifying Front Seat Inner Cushion Shield LH Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connector.
2. Engage the 2 claws.
3. Install the front seat cushion shield assembly with the 7 screws.
   Fig 9: Identifying Front Seat Cushion Shield Assembly Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the reclining power seat switch knob.
   Fig 10: Identifying Power Seat Switch Knob

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the slide and vertical power seat switch knob.

Fig 11: Identifying Slide And Vertical Power Seat Switch Knob

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Place the seat in the cabin.
2. Connect the connectors under the seat.
3. Connect the cable to the negative battery terminal.
4. Move the front seat assembly RH fully forward by operating the slide and vertical power seat switch knob.
   NOTE: Check that the seat is locked.
5. Temporarily install the front side of the front seat assembly RH with the 2 bolts.
   Fig 12: Identifying Front Side Of Front Seat Assembly RH Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Move the front seat assembly RH fully forward by operating the slide and vertical power seat switch knob.
   NOTE: Check that the seat is locked.
7. Temporarily install the rear side of the front seat assembly RH with the 2 bolts.
   Fig 13: Identifying Rear Side Of Front Seat Assembly RH Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Move the front seat assembly RH to the rearmost position by operating the slide and vertical power seat switch knob.
   NOTE: Check that the seat is locked.
9. Fully tighten the 2 bolts on the front side of the front seat assembly RH in the order of the inner side bolt and then the outer side bolt.

   Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

10. Move the front seat assembly RH fully forward by operating the slide and vertical power seat switch knob.
    NOTE: Check that the seat is locked.
11. Fully tighten the 2 bolts on the rear side of the front seat assembly RH in the order of the inner side bolt and then the outer side bolt.

    Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

1. Engage the 4 claws and install the front seat rear outer track bracket cover RH.

Fig 14: Identifying Front Seat Rear Outer Track Bracket Cover RH Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the inner side and outer side.

1. Engage the 2 claws and install the front seat outer track bracket cover RH.

Fig 15: Identifying Front Seat Outer Track Bracket Cover RH Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the inner side and outer side.

1. Connect the front seat outer belt assembly RH with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

2. Connect the connector.
   Fig 16: Locating Front Seat Outer Belt Assembly RH Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 7 claws and install the seat belt anchor cover cap RH.

Fig 17: Identifying Seat Belt Anchor Cover Cap RH Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform initialization (See INITIALIZATION ).

   HINT:

   Some systems need initialization after reconnecting the cable to the negative battery terminal.

1. Perform zero point calibration and sensitivity check (See INITIALIZATION  ).

1. Inspect SRS warning light (See DIAGNOSIS SYSTEM  ).
