Engine Unit: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 3 V-BANK COVER BRACKET SUB-ASSEMBLY
    1. Install the No. 3 V-bank cover bracket sub-assembly with the bolt

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    Fig 1: Locating V-Bank Cover Bracket Bolt
    G05749571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 4 V-BANK COVER BRACKET SUB-ASSEMBLY
    1. Install the No. 4 V-bank cover bracket sub-assembly with the nut

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  3. INSTALL IGNITION COIL ASSEMBLY  (See INSTALLATION )
  4. INSTALL KNOCK SENSOR  (See INSTALLATION )
    Fig 2: Locating V-Bank Cover Bracket Nut
    G05749570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL E.F.I. ENGINE COOLANT TEMPERATURE SENSOR  (See INSTALLATION )
  6. INSTALL ENGINE OIL LEVEL SENSOR  (See INSTALLATION )
  7. INSTALL OIL TEMPERATURE SENSOR  (See INSTALLATION )
  8. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Apply adhesive to 2 or 3 threads of the oil pressure switch

      Adhesive:

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

      Fig 3: Applying Adhesive To Threads Of Oil Pressure Switch
      G05749753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a deep socket wrench (24 mm), install the oil pressure switch.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

    NOTE: Do not start the engine for at least 1 hour after installing the switch.
    Fig 4: Locating Engine Oil Pressure Switch Assembly
    G05749568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY
    1. Install the No 2 water by-pass pipe sub-assembly with the 4 bolts

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Connect the 3 water by-pass hoses with the 3 hose clamps.
    Fig 5: Locating Water By-Pass Pipe Bolts
    G05749569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL INLET WATER HOUSING
    1. Install the inlet water housing and a new gasket with the 3 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      Fig 6: Locating Inlet Water Housing Bolts
      G04943252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the inlet water hose with the hose clamp
  11. INSTALL WATER PUMP PULLEY  (See INSTALLATION )
  12. INSTALL OIL PUMP DRIVE SHAFT PULLEY  (See INSTALLATION )
    Fig 7: Locating Water Inlet Hose Clamp
    G05749566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY
    1. Install the bolt and idler pulley.

      Torque: 43 N*m (439 kgf*cm, 32 ft.*lbf)

    Fig 8: Locating Idler Pulley Bolt
    G05749565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 4 ENGINE COVER SUB-ASSEMBLY
    1. Install the engine cover
    Fig 9: Identifying Engine Cover
    G05749564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 5 ENGINE WIRE
    1. Install the engine wire with the 2 bolts

      Torque: 10 N*m (102 kgf*cm, 7 in.*lbf)

    2. Connect the 4 knock sensor connectors
  16. INSTALL FUEL INJECTOR SEAL  (See INSTALLATION )
  17. INSTALL FUEL INJECTOR ASSEMBLY (for Direct Injection)  (See INSTALLATION )
    Fig 10: Locating Engine Wire Bolts
    G05749563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL NO. 2 FUEL DELIVERY PIPE (for Direct Injection)  (See INSTALLATION )
  19. INSTALL FUEL DELIVERY PIPE (for Direct Injection)  (See INSTALLATION )
  20. INSTALL SEPARATOR CASE  (See INSTALLATION )
  21. INSTALL NO. 4 FUEL PIPE SUB-ASSEMBLY  (See INSTALLATION )
  22. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY LH  (See INSTALLATION )
  23. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY  (See INSTALLATION )
  24. INSTALL FUEL PUMP SPACER
    1. Install the 2 fuel pump spacers.
  25. INSTALL FUEL PUMP ASSEMBLY (for Bank 1)  (See INSTALLATION )
  26. INSTALL NO. 3 FUEL PIPE SUB-ASSEMBLY  (See INSTALLATION )
  27. INSTALL ENGINE COVER SUB-ASSEMBLY (for Bank 1)  (See INSTALLATION )
  28. INSTALL FUEL PUMP ASSEMBLY (for Bank 2)  (See INSTALLATION )
  29. INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY  (See INSTALLATION )
  30. INSTALL ENGINE COVER SUB-ASSEMBLY (for Bank 2)  (See INSTALLATION )
  31. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY (for Direct Injection)  (See INSTALLATION )
  32. INSTALL NO. 3 COVER SUB-ASSEMBLY  (See INSTALLATION )
  33. INSTALL INTAKE AIR SURGE TANK ASSEMBLY  (See INSTALLATION )
  34. CONNECT WATER BY-PASS HOSE
    1. Connect the water by-pass pipe hose, No. 3 water by-pass hose and No. 9 water by-pass hose with the 3 clamps to the water by-pass pipe sub-assembly.
  35. INSTALL INJECTOR DRIVER  (See INSTALLATION )
  36. INSTALL THROTTLE BODY ASSEMBLY  (See INSTALLATION )
  37. INSTALL TRANSMISSION BREATHER ASSEMBLY  (See INSTALLATION )
    Fig 11: Locating Water By-Pass Hose Clamps
    G05749562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL WIRE HARNESS CLAMP BRACKET
    1. Install the 2 wire harness clamp brackets with the 2 bolts

      Torque: for LH side

      21 N*m (214 kgf*cm, 15 ft.*lbf)

      for RH side

      29 N*m (296 kgf*cm, 21 ft.*lbf)

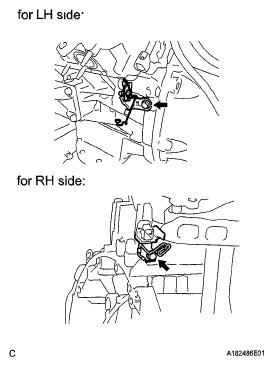

      Fig 12: Locating Wire Harness Clamp Brackets Bolts
      G05749561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET RH
    1. Install the mounting bracket with the 4 bolts.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

    Fig 13: Locating Engine Mounting Bracket RH Bolts
    G05749559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET LH
    1. Install the mounting bracket with the 4 bolts.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  41. INSTALL ENGINE WIRE
    1. Install the engine wire
    Fig 14: Locating Engine Mounting Bracket LH Bolts
    G05749560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL ENGINE HANGER
    1. Install the 2 engine hangers with the 2 bolts as shown in the illustration
    Fig 15: Locating Engine Hangers
    G05749485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Engine Hanger Part No.

    ENGINE HANGER AND BOLT REFERENCE

    Item Part No.
    Engine hanger 12081-38020
    Bolt 90119-14120

    Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  43. REMOVE ENGINE STAND
    1. Attach an engine sling device and hang the engine with a chain block.
      NOTE: When hanging the engine, make sure to hang the engine with the chain at an angle of 50° or less. Otherwise, the engine or engine hangers may be damaged.
    2. Remove the bolts and engine assembly from the engine stand.
    Fig 16: Identifying Chain Angle
    G04943182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
