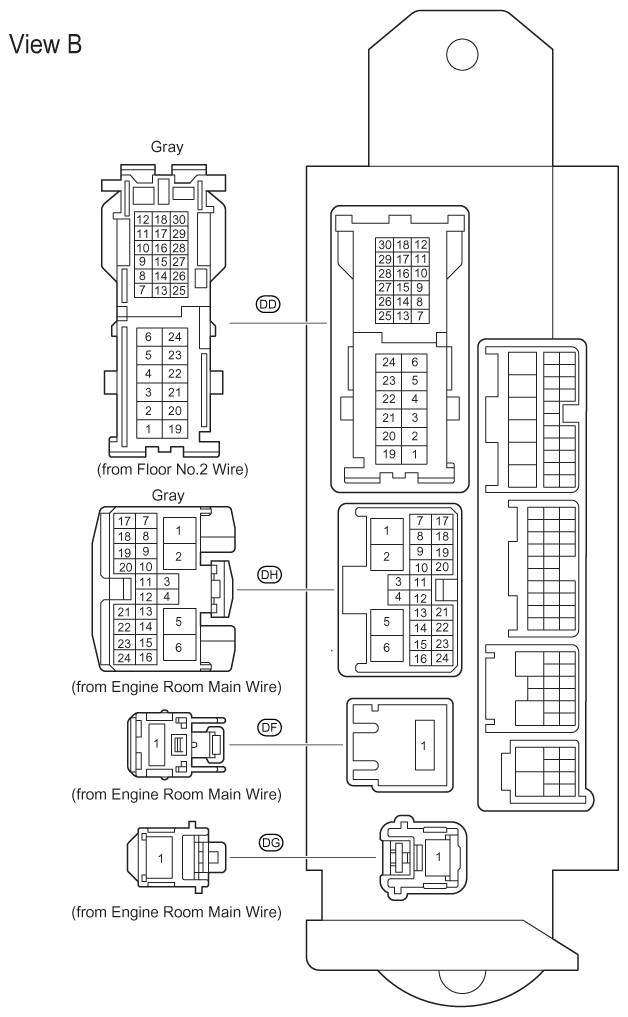

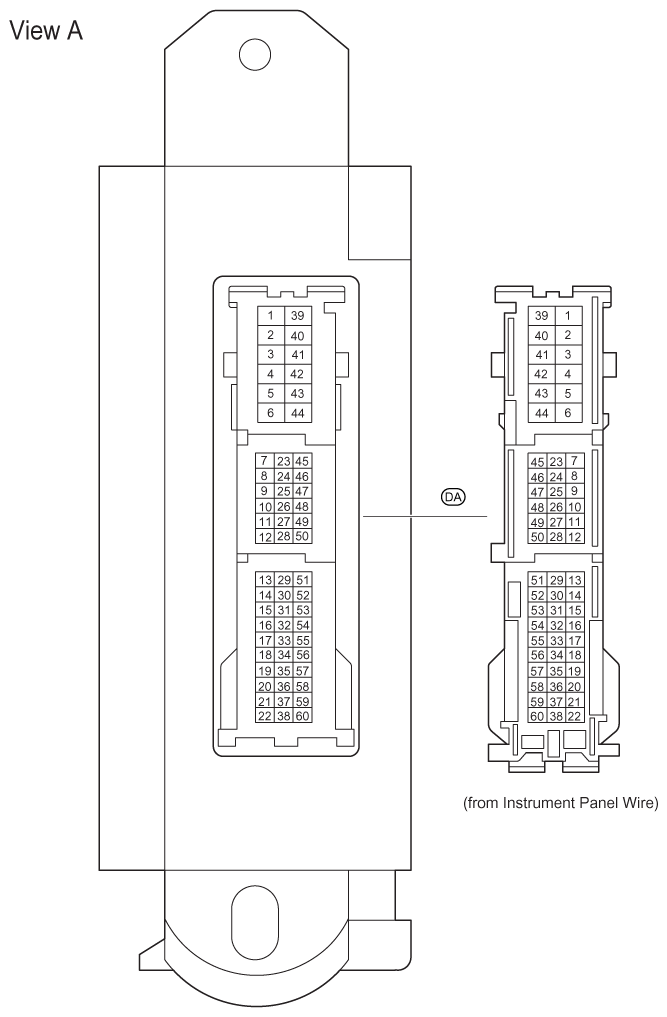

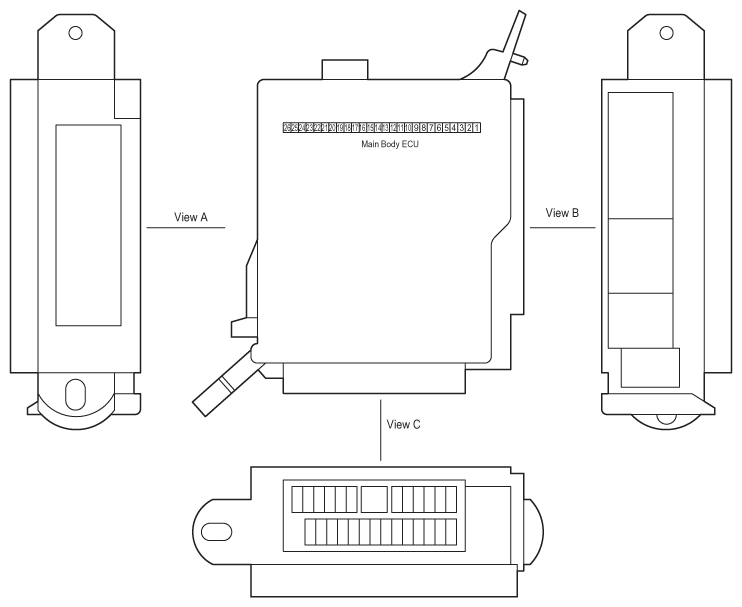

Driver Side Junction Block
WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

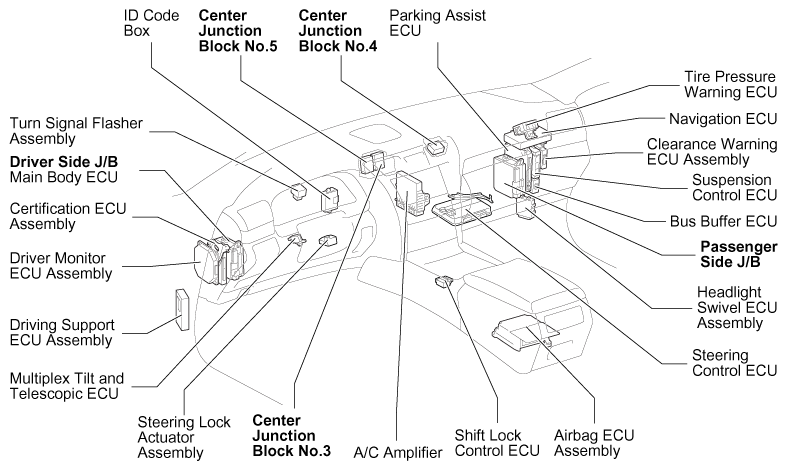

Cowl Side Left (See Figure)

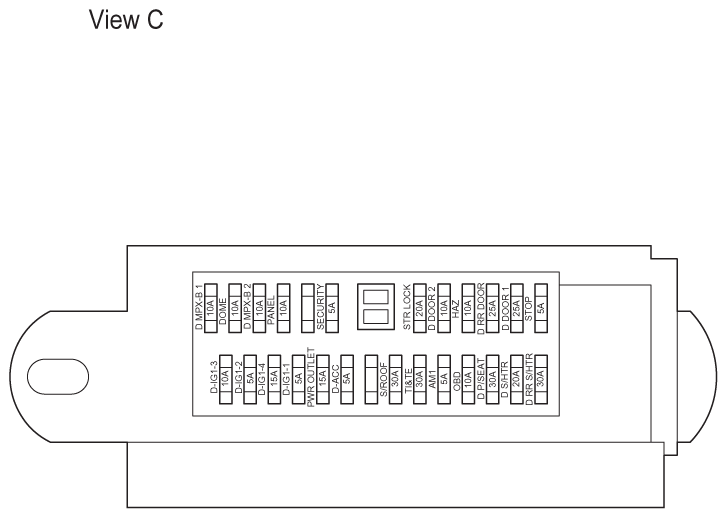

Driver Side J/B Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | AM1 | Air Suspension |
| Automatic Light Control and Light Auto Turn Off System | ||
| Combination Meter | ||
| Door Lock Control | ||
| Illumination | ||
| Interior Light | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Front Passenger's Seat w/ Rear Passenger's Seat Ottoman) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 5A | D-ACC | Air Suspension |
| Automatic Light Control and Light Auto Turn Off System | ||
| Combination Meter | ||
| Door Lock Control | ||
| Illumination | ||
| Interior Light | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Front Passenger's Seat w/ Rear Passenger's Seat Ottoman) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 5A | D-IG1-1 | Adaptive Front-Lighting System |
| Automatic Light Control and Light Auto Turn Off System | ||
| Dynamic Radar Cruise Control | ||
| Electric Tension Reducer | ||
| Fog Light | ||
| Headlight | ||
| Headlight Cleaner | ||
| Heated Steering Wheel System | ||
| Illumination | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Tilt and Power Telescopic | ||
| Pre-Collision System | ||
| Remote Control Mirror | ||
| Taillight | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| VGRS System | ||
| Wiper and Washer | ||
| 5A | D-IG1-2 | Dynamic Radar Cruise Control |
| Pre-Collision System | ||
| 5A | SECURITY | Power Seat (Driver's Seat) |
| Power Tilt and Power Telescopic | ||
| 5A | SECURITY | Power Trunk Opener and Closer |
| Power Window | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 5A | STOP | Air Suspension |
| Cruise Control | ||
| Dynamic Radar Cruise Control | ||
| Electric Parking Brake | ||
| Hybrid System and Shift Control System | ||
| Pre-Collision System | ||
| Shift Lock | ||
| Smart Access System with Push-Button Start | ||
| Stop Light | ||
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| 10A | D DOOR 2 | Door Closer |
| Door Lock Control | ||
| Illumination | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Seat (Driver's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 10A | D MPX-B 1 | Active Stabilizer Suspension System |
| Adaptive Front-Lighting System | ||
| Advanced Parking Guidance System | ||
| Air Suspension | ||
| Audio System (w/ SDARS) | ||
| Audio System (w/o SDARS) | ||
| Brake Hold System | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Closer | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electric Parking Brake | ||
| Engine Control | ||
| EPS | ||
| Fog Light | ||
| Garage Door Opener | ||
| Headlight | ||
| Heated Steering Wheel System | ||
| Hybrid System and Shift Control System | ||
| Illumination | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| LEXUS Navigation System, Parking Assist (Rear View Monitor) and Multi-Display (w/o LEXUS Navigation System) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Pre-Collision System | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| SRS | ||
| Stop Light | ||
| Taillight | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| VGRS System | ||
| 10A | D MPX-B 2 | Audio System (w/ SDARS) |
| Audio System (w/o SDARS) | ||
| 10A | D-IG1-3 | Active Stabilizer Suspension System |
| Air Conditioning | ||
| Air Suspension | ||
| Automatic Glare-Resistant EC Mirror | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Brake Hold System | ||
| Climate Control Seat (Driver's Seat and Front Passenger's Seat) | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Closer | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electric Parking Brake | ||
| Hybrid System and Shift Control System | ||
| Illumination | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Outlet (115V) | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Front Passenger's Seat w/ Rear Passenger's Seat Ottoman) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Pre-Collision System | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Shift Lock | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| Wiper and Washer | ||
| 10A | DOME | Clock |
| Interior Light | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 10A | HAZ | Turn Signal and Hazard Warning Light |
| 10A | OBD | Data Link Connector 3 |
| 10A | PANEL | Illumination |
| 15A | D-IG1-4 | Heated Steering Wheel System |
| 15A | PWR OUTLET | Power Outlet (12V) |
| 20A | D S/HTR | Climate Control Seat (Driver's Seat and Front Passenger's Seat) |
| Illumination | ||
| 20A | STR LOCK | Smart Access System with Push-Button Start |
| 25A | D DOOR 1 | Door Closer |
| Door Lock Control | ||
| Illumination | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Seat (Driver's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 25A | D RR DOOR | Air Conditioning |
| Door Closer | ||
| Door Lock Control | ||
| Illumination | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Window | ||
| Rear Door Sunshade | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 30A | D P/SEAT | Power Seat (Driver's Seat) |
| 30A | D RR S/HTR | Climate Control Seat (Rear Passenger's Seat) |
| 30A | S/ROOF | Sliding Roof |
| 30A | TI&TE | Power Tilt and Power Telescopic |
