Cowl Side Junction Block LH Assembly
WARNING: This page is about a different car, the 2008 Lexus LX 570. However, it is still accessible from the selected car via links, so may be relevant.

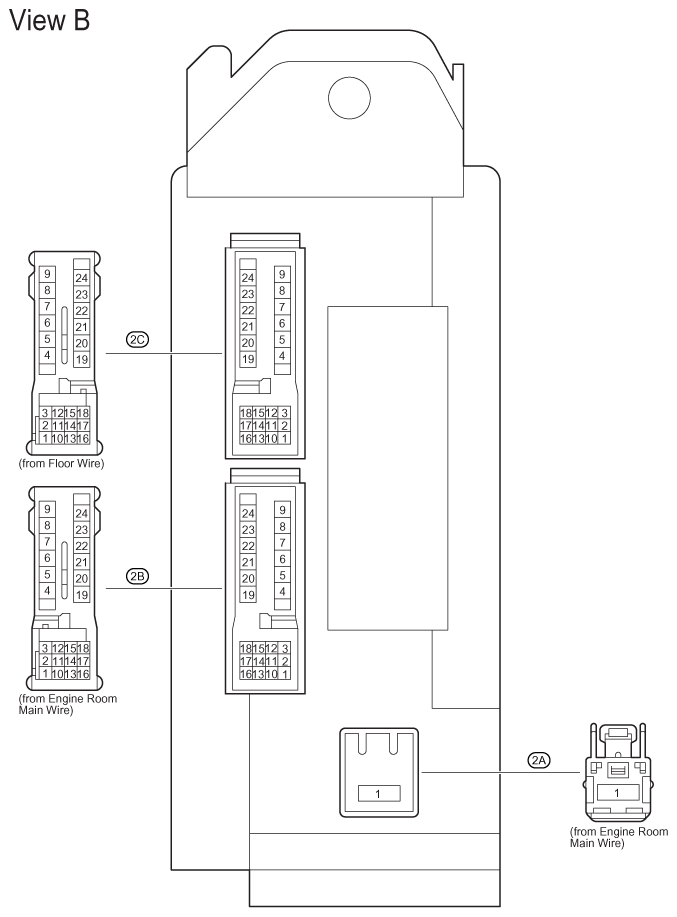

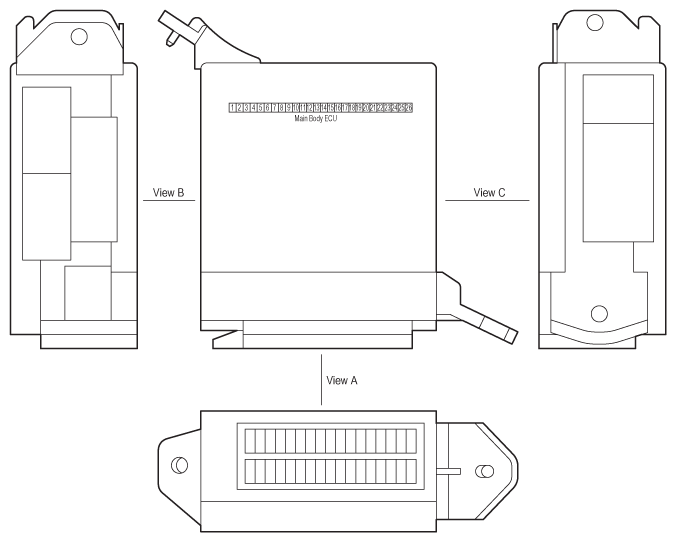

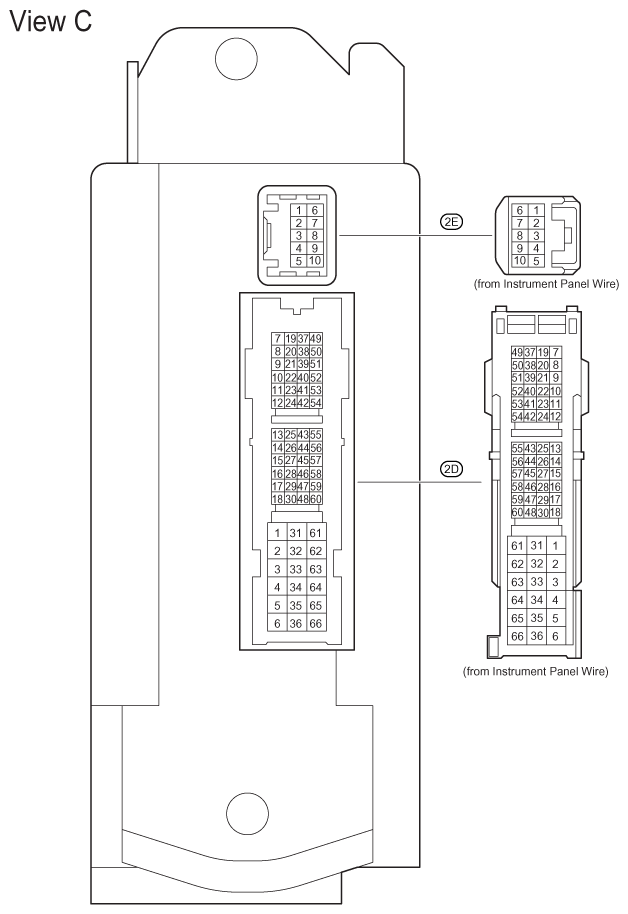

Cowl Side Left (See Figure)

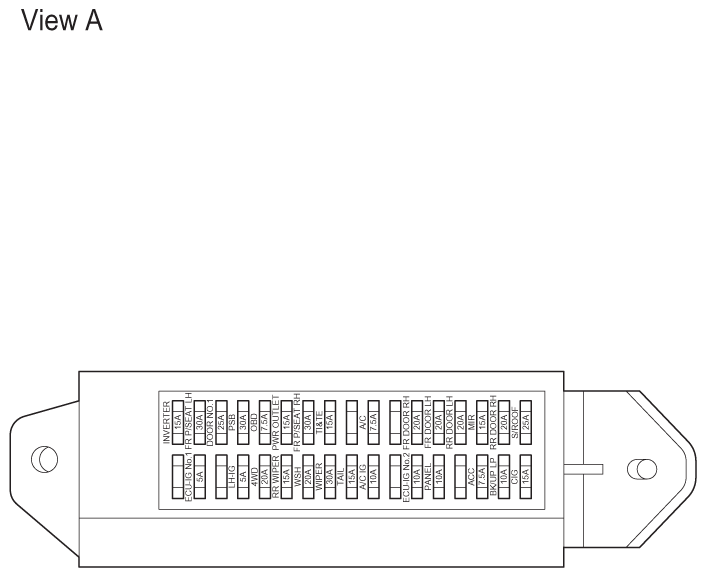

Cowl Side J/B LH Assembly Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | ECU-IG No. 1 | ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, A-TRAC and VSC |
| Audio System, Multi-Display, LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Front Wiper and Washer | ||
| Headlight Cleaner | ||
| Multiplex Communication System (CAN) | ||
| Parking Assist (Rear View Monitor, Wide-View Front & Side Monitor and Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat) | ||
| Power Tilt and Power Telescopic | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| Shift Lock | ||
| 5A | LH-IG | ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, A-TRAC and VSC |
| Charging | ||
| Climate Control Seat (Driver's Seat and Front Passenger's Seat) | ||
| Cruise Control | ||
| Dynamic Radar Cruise Control | ||
| Electric Tension Reducer | ||
| Engine Control, Electronically Controlled Transmission and A/T Indicator | ||
| Front Window Deicer | ||
| Power Outlet (115V) | ||
| Seat Heater (Front) | ||
| Trailer Towing | ||
| Turn Signal and Hazard Warning Light | ||
| 7.5A | A/C | Air Conditioning |
| 7.5A | ACC | Adaptive Front-Lighting System |
| Audio System, Multi-Display, LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Door Lock Control | ||
| Front Fog Light | ||
| Headlight | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Multiplex Communication System (CAN) | ||
| Parking Assist (Rear View Monitor, Wide-View Front & Side Monitor and Intuitive Parking Assist) | ||
| Power Back Door | ||
| Power Window | ||
| Rear Wiper and Washer | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start, Theft Deterrent and Back Door Opener | ||
| Taillight and Illumination | ||
| 7.5A | OBD | Data Link Connector 3 |
| 10A | A/C IG | Air Conditioning |
| Condenser Fan | ||
| Cool Box | ||
| Rear Window Defogger and Mirror Heater | ||
| 10A | BK/UP LP | ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, A-TRAC and VSC |
| Active Height Control Suspension and Adaptive Variable Suspension | ||
| Audio System, Multi-Display, LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Back-Up Light | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Engine Control, Electronically Controlled Transmission and A/T Indicator | ||
| Multi Mode 4WD | ||
| Parking Assist (Rear View Monitor, Wide-View Front & Side Monitor and Intuitive Parking Assist) | ||
| Power Back Door | ||
| Power Seat (Driver's Seat) | ||
| Power Tilt and Power Telescopic | ||
| Rear Power Seat Control System (for Rear No. 2 Seat with Folding-Up Function) | ||
| Rear Wiper and Washer | ||
| Remote Control Mirror | ||
| Trailer Towing | ||
| 10A | ECU-IG No. 2 | ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, A-TRAC and VSC |
| Adaptive Front-Lighting System | ||
| Air Conditioning | ||
| Automatic Glare-Resistant EC Mirror | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Headlight | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Back Door | ||
| Power Window | ||
| Rear Wiper and Washer | ||
| Remote Control Mirror | ||
| Seat Heater (Rear) | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start, Theft Deterrent and Back Door Opener | ||
| Stop Light | ||
| Taillight and Illumination | ||
| VGRS System | ||
| 10A | PANEL | Taillight and Illumination |
| Trailer Towing | ||
| 15A | CIG | Cigarette Lighter |
| 15A | INVERTER | Power Outlet (115V) |
| 15A | MIR | Interior Light |
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| 15A | PWR OUTLET | Power Outlet (12V) |
| 15A | RR WIPER | Rear Wiper and Washer |
| 15A | TAIL | Front Fog Light |
| Taillight and Illumination | ||
| 15A | TI&TE | Power Tilt and Power Telescopic |
| 20A | 4WD | Multi Mode 4WD |
| 20A | FR DOOR LH | Door Lock Control |
| Power Window | ||
| 20A | FR DOOR RH | Power Window |
| 20A | RR DOOR LH | Power Window |
| 20A | RR DOOR RH | Power Window |
| 20A | WSH | Front Wiper and Washer |
| 25A | DOOR NO. 1 | Adaptive Front-Lighting System |
| Automatic Light Control and Light Auto Turn Off System | ||
| Door Lock Control | ||
| Front Fog Light | ||
| Headlight | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Back Door | ||
| Power Window | ||
| Rear Wiper and Washer | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Taillight and Illumination | ||
| 25A | S/ROOF | Sliding Roof |
| 30A | FR P/SEAT LH | Power Seat (Driver's Seat) |
| 30A | FR P/SEAT RH | Power Seat (Front Passenger's Seat) |
| 30A | PSB | Pre-Collision System |
| 30A | WIPER | Dynamic Radar Cruise Control |
| Front Wiper and Washer | ||
