Driver Side Junction Block
WARNING: This page is about a different car, the 2008 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

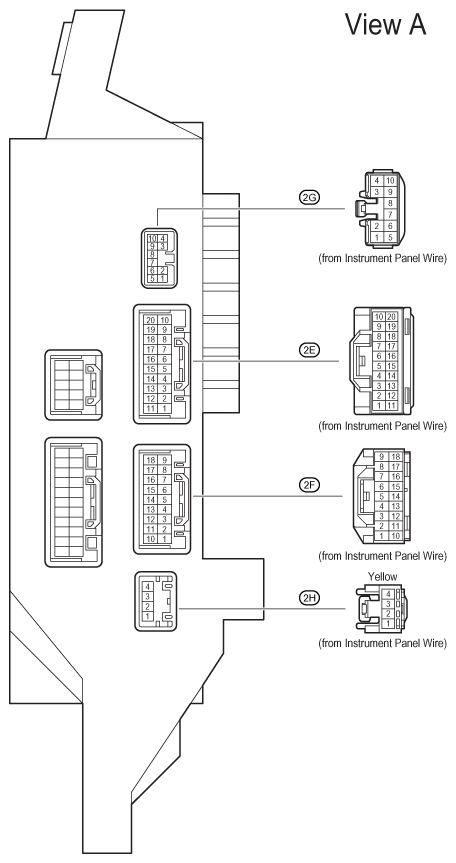

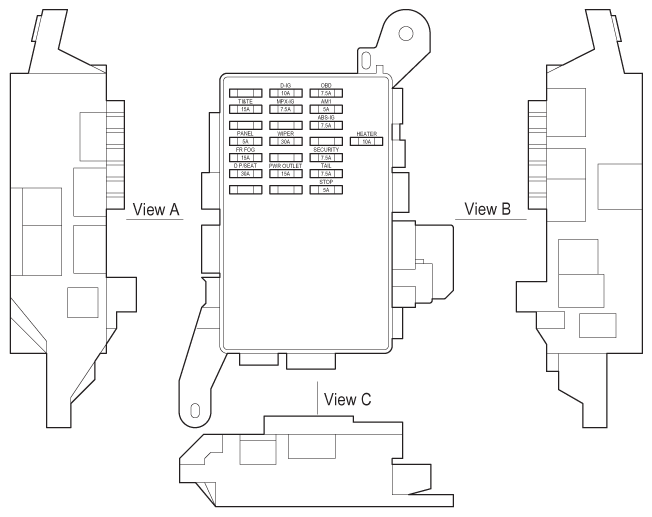

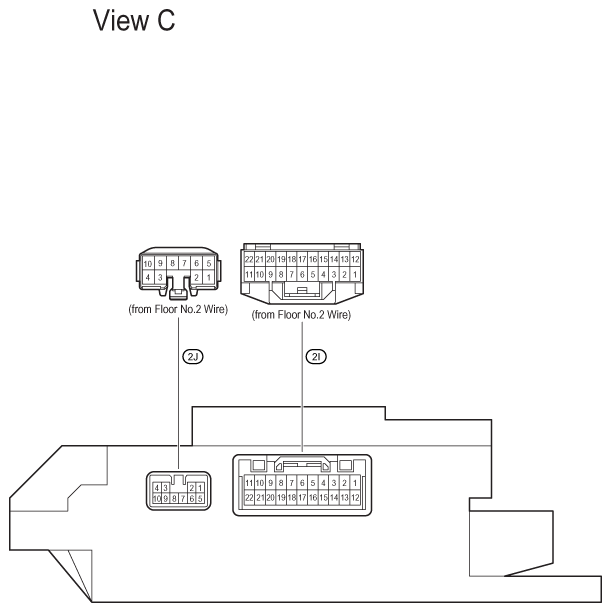

Left Kick Panel (See Figure)
(Inner Circuit : See [DRIVER SIDE J/B INNER CIRCUIT] )
Driver Side J/B Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | AM1 | Multiplex Communication System (J/B ECU) |
| 5A | PANEL | Illumination |
| Multiplex Communication System (J/B ECU) | ||
| 5A | STOP | ABS, TRAC, VSC and PPS |
| Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Multiplex Communication System (J/B ECU) | ||
| Shift Lock | ||
| Stop Light | ||
| 7.5A | ABS-IG | ABS, TRAC, VSC and PPS |
| Adaptive Front-Lighting System | ||
| 7.5A | MPX-IG | Automatic Air Conditioning |
| Automatic Light Control | ||
| Front Fog Light | ||
| Headlight | ||
| Illumination | ||
| LEXUS Navigation System | ||
| Light Auto Turn Off System | ||
| Mirror Heater | ||
| Multiplex Communication System (Communication Bus) | ||
| Multiplex Communication System (Door ECU) | ||
| Multiplex Communication System (J/B ECU) | ||
| Power Seat | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Remote Control Mirror | ||
| Retractable Hardtop | ||
| Taillight | ||
| Theft Deterrent and Door Lock Control | ||
| Turn Signal and Hazard Warning Light | ||
| Wiper and Washer | ||
| Wireless Door Lock Control | ||
| 7.5A | OBD | ABS, TRAC, VSC and PPS |
| Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| SRS | ||
| 7.5A | SECURITY | Audio System |
| Horn | ||
| Multiplex Communication System (Door ECU) | ||
| Multiplex Communication System (J/B ECU) | ||
| Power Window | ||
| Theft Deterrent and Door Lock Control | ||
| Wireless Door Lock Control | ||
| 7.5A | TAIL | Automatic Light Control |
| Light Auto Turn Off System | ||
| Multiplex Communication System (J/B ECU) | ||
| Taillight | ||
| Theft Deterrent and Door Lock Control | ||
| 10A | D-IG | ABS, TRAC, VSC and PPS |
| Adaptive Front-Lighting System | ||
| Audio System | ||
| Automatic Air Conditioning | ||
| Back-Up Light | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control | ||
| Electric Tension Reducer | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Cleaner | ||
| Illumination | ||
| Interior Light | ||
| Key Reminder and Seat Belt Warning | ||
| LEXUS Navigation System | ||
| Luggage Compartment Door Opener | ||
| Multiplex Communication System (J/B ECU) | ||
| Power Tilt and Power Telescopic | ||
| Remote Control Mirror | ||
| Retractable Hardtop | ||
| SRS | ||
| Stop Light | ||
| Taillight | ||
| Theft Deterrent and Door Lock Control | ||
| Tire Pressure Warning System | ||
| Wiper and Washer | ||
| 10A | HEATER | Automatic Air Conditioning |
| Multiplex Communication System (J/B ECU) | ||
| Radiator Fan | ||
| 15A | FR FOG | Front Fog Light |
| Multiplex Communication System (J/B ECU) | ||
| 15A | PWR OUTLET | Cigarette Lighter and Power Outlet |
| 15A | TI&TE | Power Tilt and Power Telescopic |
| 30A | D P/SEAT | Power Seat |
| 30A | WIPER | Multiplex Communication System (J/B ECU) |
| Wiper and Washer | ||

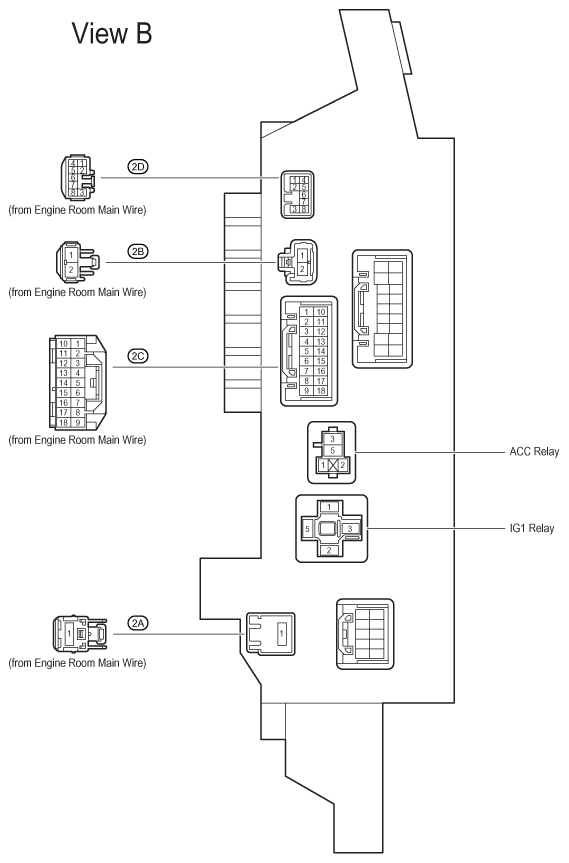

DRIVER SIDE J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ACC Relay |
| IG1 Relay |
