Passenger Side Junction Block
WARNING: This page is about a different car, the 2008 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

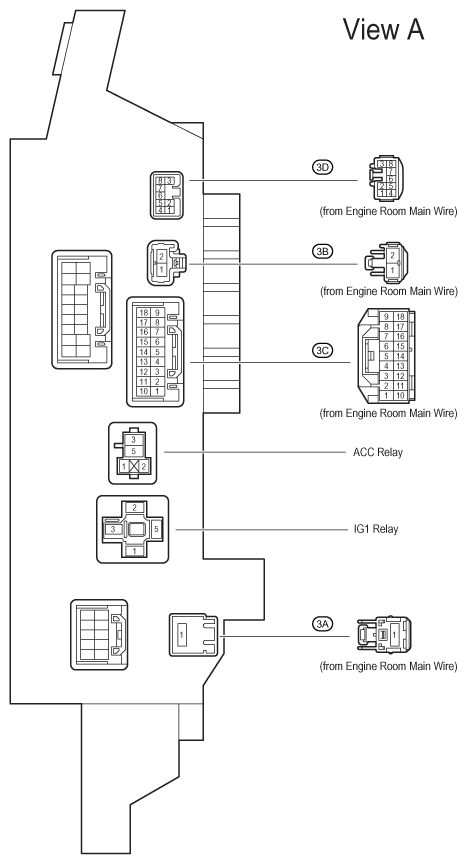

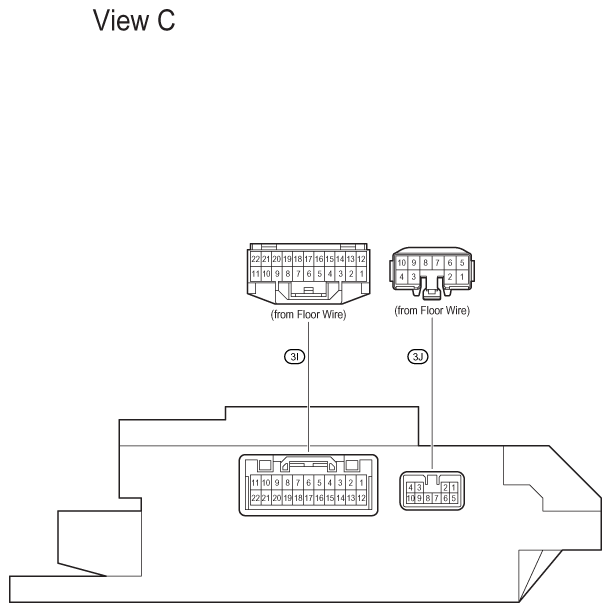

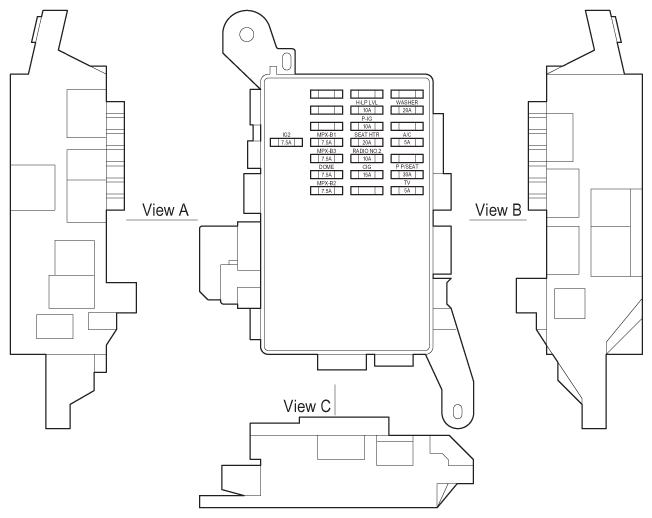

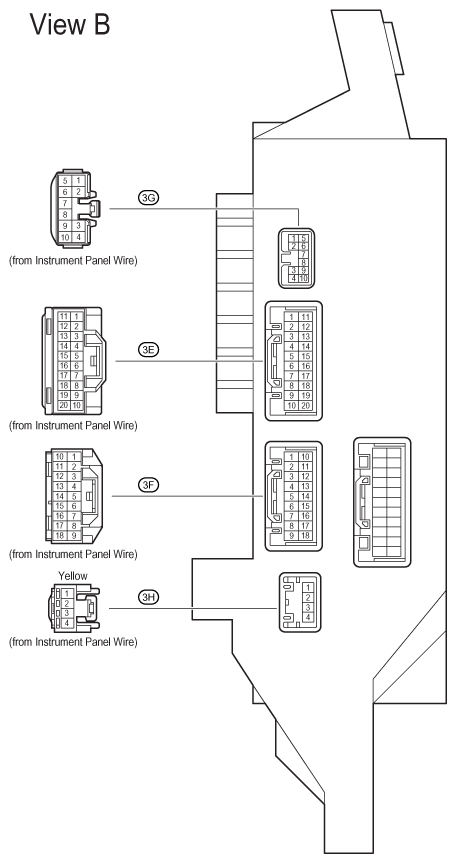

Right Kick Panel (See Figure)
(Inner Circuit : See [PASSENGER SIDE J/B INNER CIRCUIT] )
Passenger Side J/B Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | A/C | Automatic Air Conditioning |
| Clock | ||
| LEXUS Navigation System | ||
| 5A | TV LEXUS | Navigation System |
| 7.5A | DOME | Audio System |
| Garage Door Opener | ||
| Interior Light | ||
| Multiplex Communication System (J/B ECU) | ||
| Rear Window Defogger | ||
| Theft Deterrent and Door Lock Control | ||
| 7.5A | IG2 | SRS |
| 7.5A | MPX-B1 | Engine Immobiliser System |
| Mirror Heater | ||
| Multiplex Communication System (Door ECU) | ||
| Power Seat | ||
| Power Window | ||
| Remote Control Mirror | ||
| Retractable Hardtop | ||
| Theft Deterrent and Door Lock Control | ||
| Wireless Door Lock Control | ||
| 7.5A | MPX-B2 | ABS, TRAC, VSC and PPS |
| Adaptive Front-Lighting System | ||
| Audio System | ||
| Automatic Air Conditioning | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Front Fog Light | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| Key Reminder and Seat Belt Warning | ||
| LEXUS Navigation System | ||
| Luggage Compartment Door Opener | ||
| Multiplex Communication System (Communication Bus) | ||
| Multiplex Communication System (J/B ECU) | ||
| Power Tilt and Power Telescopic | ||
| Retractable Hardtop | ||
| SRS | ||
| Stop Light | ||
| Taillight | ||
| Tire Pressure Warning System | ||
| Wiper and Washer | ||
| 7.5A | MPX-B3 | Automatic Light Control |
| Front Fog Light | ||
| Fuel Lid Opener | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Multiplex Communication System (J/B ECU) | ||
| Power Tilt and Power Telescopic | ||
| Remote Control Mirror | ||
| Taillight | ||
| Turn Signal and Hazard Warning Light | ||
| Wiper and Washer | ||
| 10A | H-LP LVL | Adaptive Front-Lighting System |
| 10A | P-IG | Auto Antenna |
| Automatic Glare-Resistant EC Mirror | ||
| Key Reminder and Seat Belt Warning | ||
| LEXUS Navigation System | ||
| Seat Heater | ||
| Shift Lock | ||
| Tire Pressure Warning System | ||
| 10A | RADIO NO. 2 | Audio System |
| Auto Antenna | ||
| Automatic Air Conditioning | ||
| Clock | ||
| LEXUS Navigation System | ||
| Multiplex Communication System (Communication Bus) | ||
| Multiplex Communication System (Door ECU) | ||
| Power Window | ||
| Shift Lock | ||
| SRS | ||
| Theft Deterrent and Door Lock Control | ||
| Wireless Door Lock Control | ||
| 15A | CIG | Cigarette Lighter and Power Outlet |
| 20A | SEAT HTR | Seat Heater |
| 20A | WASHER | Headlight Cleaner |
| Multiplex Communication System (J/B ECU) | ||
| Wiper and Washer | ||
| 30A | P P/SEAT | Power Seat |
PASSENGER SIDE J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ACC Relay |
| IG1 Relay |
