Pattern Select Switch Eco Mode Circuit: Wiring Diagram

Refer to the wiring diagram for Pattern select switch SPORT mode circuit. Refer WIRING DIAGRAM .

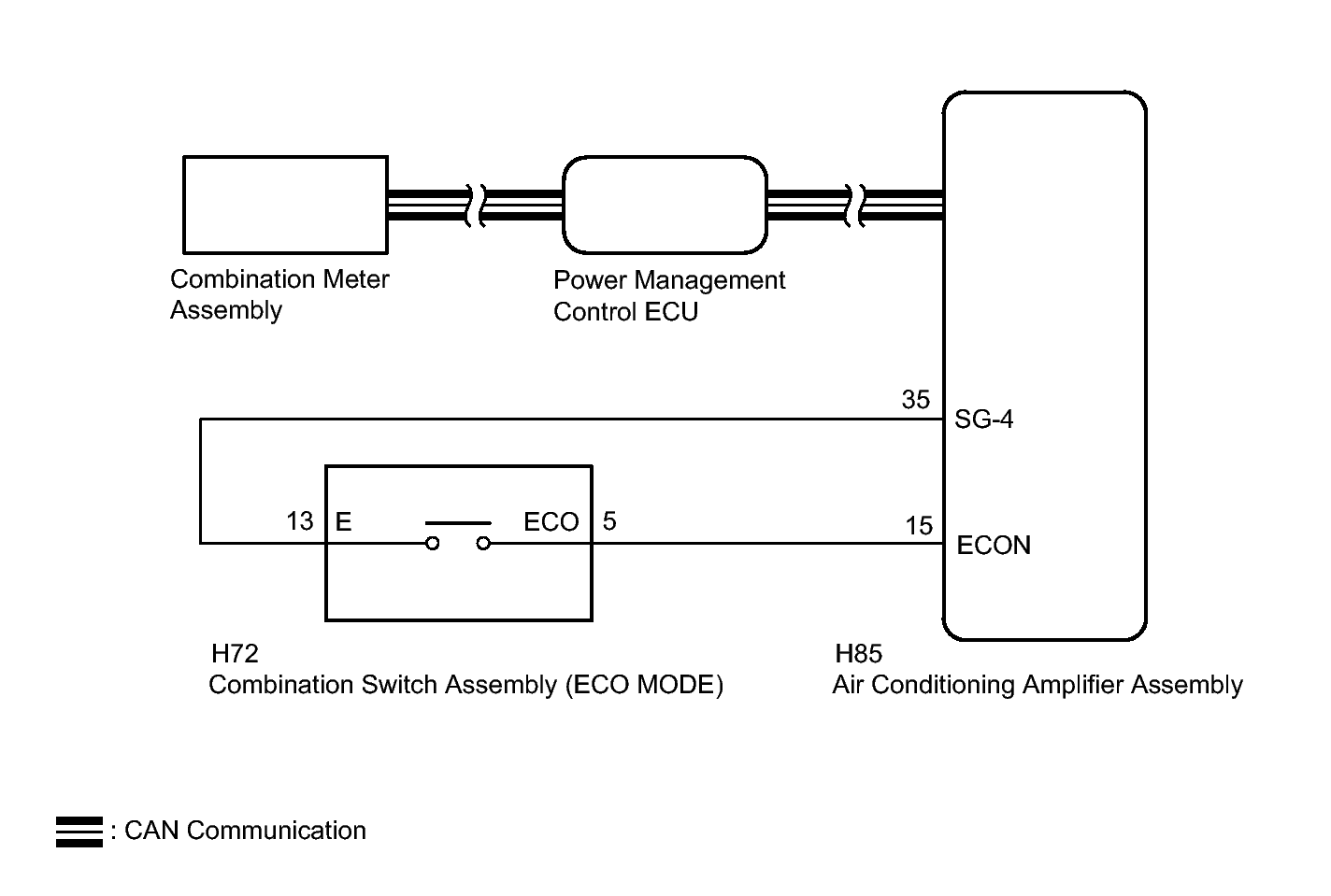

Fig 1: Identifying Air Conditioning Amplifier Assembly Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
