Driver Side Junction Block
WARNING: This page is about a different car, the 2010 Lexus LS 460L and 2010 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

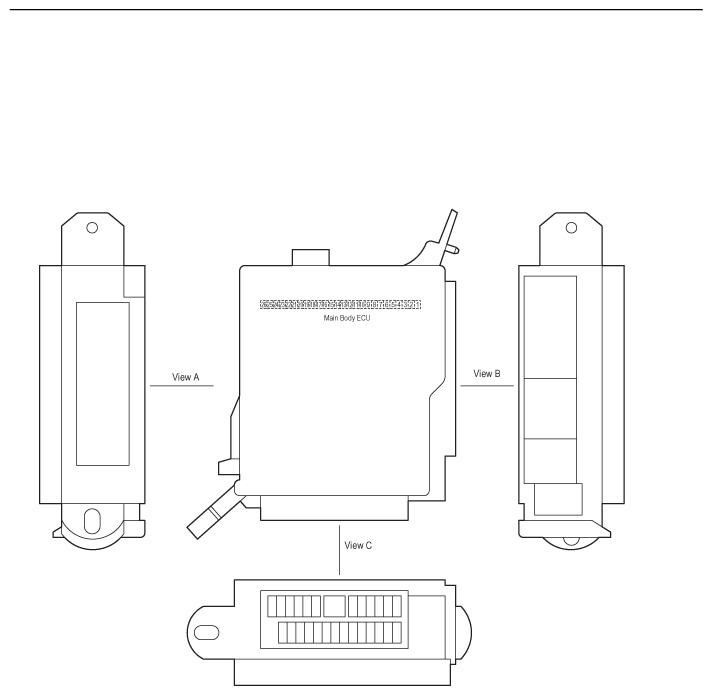

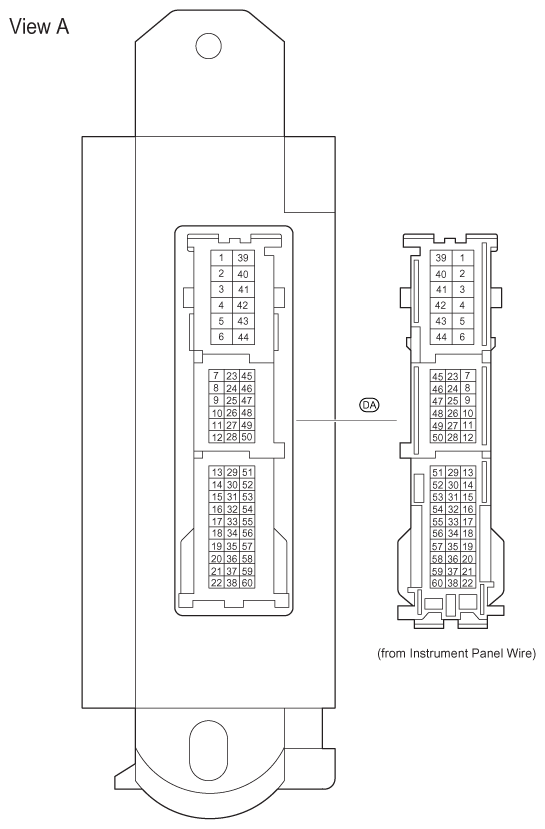

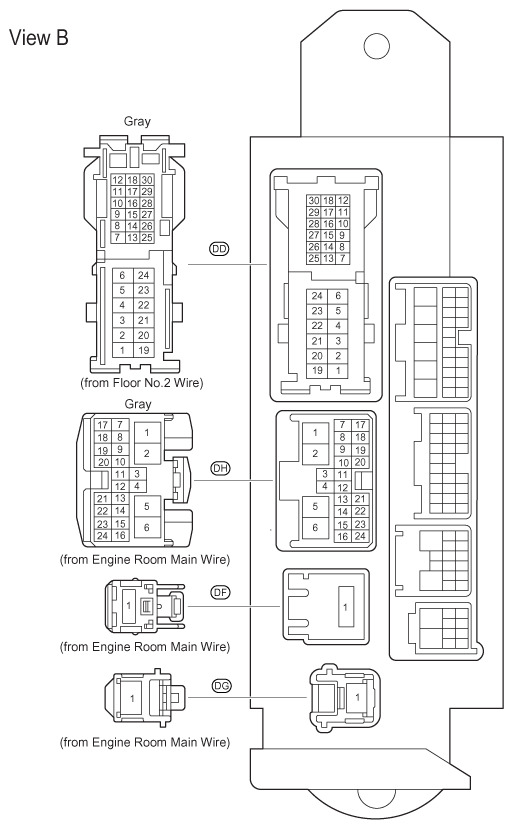

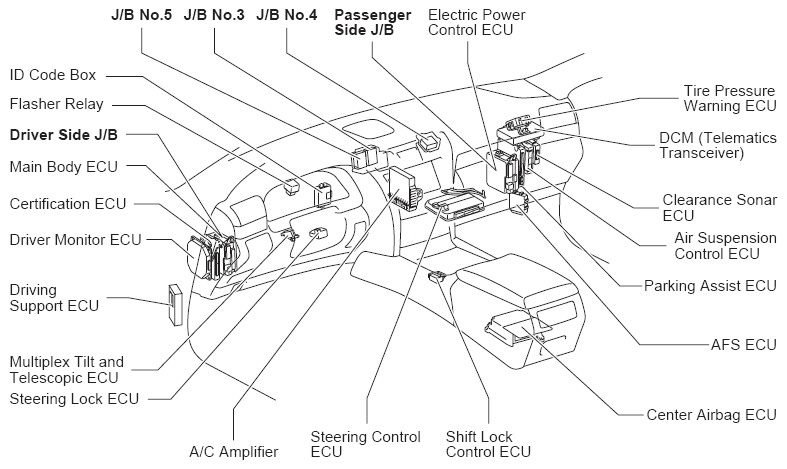

Cowl Side Left (See Figure)

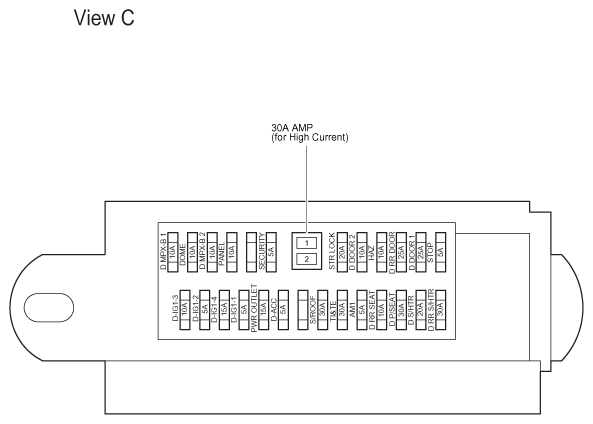

Driver Side J/B Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | AM1 | Air Suspension |
| Automatic Light Control and Light Auto Turn Off System | ||
| Combination Meter | ||
| Door Lock Control | ||
| Fuel Lid Opener | ||
| Illumination | ||
| Interior Light | ||
| Luggage Compartment Door Opener and Closer | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Front Passenger's Seat) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 5A | D-ACC | Air Suspension |
| Automatic Light Control and Light Auto Turn Off System | ||
| Combination Meter | ||
| Door Lock Control | ||
| Fuel Lid Opener | ||
| Illumination | ||
| Interior Light | ||
| Luggage Compartment Door Opener and Closer | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Front Passenger's Seat) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 5A | D-IG1-1 | Adaptive Front-Lighting System |
| Automatic Light Control and Light Auto Turn Off System | ||
| Dynamic Radar Cruise Control | ||
| Electric Tension Reducer | ||
| Fog Light | ||
| Headlight | ||
| Headlight Cleaner | ||
| Heated Steering Wheel System | ||
| Illumination | ||
| Lane Keeping Assist | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Tilt and Power Telescopic | ||
| Pre-Collision System | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Taillight | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management | ||
| VGRS System | ||
| Wiper and Washer | ||
| 5A | D-IG1-2 | Dynamic Radar Cruise Control |
| Lane Keeping Assist | ||
| Pre-Collision System | ||
| 5A | SECURITY | Power Seat (Driver's Seat) |
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 5A | STOP | Air Suspension |
| Cruise Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Lane Keeping Assist | ||
| Pre-Collision System | ||
| Shift Lock | ||
| Smart Access System with Push-Button Start | ||
| Stop Light | ||
| Vehicle Dynamics Integrated Management | ||
| 10A | D DOOR 2 | Door Closer |
| Door Lock Control | ||
| Illumination | ||
| Interior Light | ||
| Power Seat (Driver's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 10A | D MPX-B 1 | Adaptive Front-Lighting System |
| Door Closer | ||
| Door Lock Control | ||
| Garage Door Opener | ||
| Heated Steering Wheel System | ||
| Illumination | ||
| Interior Light | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 10A | D MPX-B 2 | Adaptive Front-Lighting System |
| Advanced Parking Guidance System | ||
| Air Conditioning | ||
| Air Suspension | ||
| Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) and Multi-Display (w/o LEXUS Navigation System) | ||
| Brake Hold System | ||
| Charging | ||
| Combination Meter | ||
| Cooling Fan | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electric Parking Brake | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| EPS | ||
| Fog Light | ||
| Headlight | ||
| Illumination | ||
| Lane Keeping Assist | ||
| LEXUS ENFORM or Safety Connect | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Pre-Collision System | ||
| Rear Seat Entertainment System (Console Type) | ||
| Rear Seat Entertainment System (Roof Type) | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| SRS | ||
| Stop Light | ||
| Taillight | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management | ||
| VGRS System | ||
| Wiper and Washer | ||
| 10A | D RR SEAT | Vibration Seat |
| 10A | D-IG1-3 | Air Conditioning |
| Air Suspension | ||
| Automatic Glare-Resistant EC Mirror with Compass | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Brake Hold System | ||
| Climate Control Seat (Driver's Seat and Front Passenger's Seat) | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Closer | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electric Parking Brake | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Fuel Lid Opener | ||
| Illumination | ||
| Interior Light | ||
| Lane Keeping Assist | ||
| Luggage Compartment Door Opener and Closer | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Front Passenger's Seat) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Pre-Collision System | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Shift Lock | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management | ||
| Wiper and Washer | ||
| 10A | DOME | Clock |
| Interior Light | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 10A | HAZ | Turn Signal and Hazard Warning Light |
| 10A | PANEL | Illumination |
| 15A | D-IG1-4 | Heated Steering Wheel System |
| 15A | PWR OUTLET | Power Outlet (12V) |
| 20A | D S/HTR | Climate Control Seat (Driver's Seat and Front Passenger's Seat) |
| Illumination | ||
| 20A | STR | LOCK Smart Access System with Push-Button Start |
| 25A | D DOOR 1 | Door Closer |
| Door Lock Control | ||
| Illumination | ||
| Interior Light | ||
| Power Seat (Driver's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 25A | D RR DOOR | Air Conditioning |
| Door Closer | ||
| Door Lock Control | ||
| Illumination | ||
| Interior Light | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Window | ||
| Rear Door Sunshade | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 30A | AMP | Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) and Multi-Display (w/o LEXUS Navigation System) |
| Rear Seat Entertainment System (Console Type) | ||
| Rear Seat Entertainment System (Roof Type) | ||
| 30A | D P/SEAT | Power Seat (Driver's Seat) |
| 30A | D RR | S/HTR Climate Control Seat (Rear Passenger's Seat) |
| 30A | S/ROOF | Sliding Roof |
| 30A | TI&TE | Power Tilt and Power Telescopic |
