Installation [04/2013 - 10/2017]: Procedure

HINT:

Perform "Inspection After Repair" after replacing an air fuel ratio sensor.

Refer to INITIALIZATION [04/2013 - 10/2017]

1. For Bank 2:
   1. Using SST, install the air fuel ratio sensor to the exhaust manifold LH.
      • SST: 09224-00010

      Without SST [Torque (N*m (kgf*cm, ft.*lbf))]

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      With SST [Reading of Torque wrench (N*m (kgf*cm, ft.*lbf))]

      Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

      NOTE:

      If an air fuel ratio sensor has been struck or dropped, replace it.

      HINT:

      • This torque value is effective when SST is parallel to the torque wrench.
      • The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
      • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 260 mm (10.2 in.).
      • If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values.

        Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016] , or refer to PRECAUTION [10/2016 - 10/2017]

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

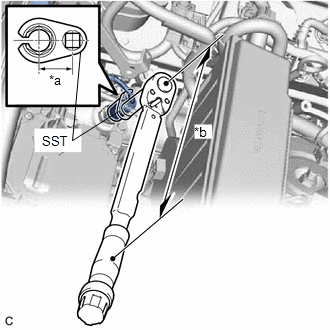

      *a	Length of SST 30 mm (1.18 in.)
      *b	Length of Torque Wrench 260 mm (10.2 in.)

   2. Connect the air fuel ratio sensor connector.
2. For Bank 1:
   1. Using SST, install the air fuel ratio sensor to the exhaust manifold RH.
      • SST: 09224-00010

      Without SST [Torque (N*m (kgf*cm, ft.*lbf))]

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      With SST [Reading of Torque wrench (N*m (kgf*cm, ft.*lbf))]

      Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

      NOTE:

      If an air fuel ratio sensor has been struck or dropped, replace it.

      HINT:

      • This torque value is effective when SST is parallel to the torque wrench.
      • The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
      • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 260 mm (10.2 in.).
      • If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values.

        Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016] , or refer to PRECAUTION [10/2016 - 10/2017]

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

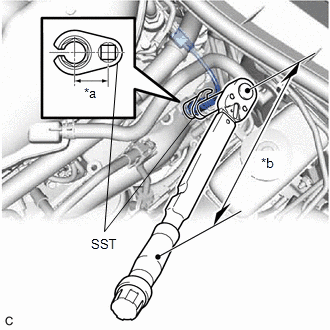

      *a	Length of SST 30 mm (1.18 in.)
      *b	Length of Torque Wrench 260 mm (10.2 in.)

   2. Connect the 2 wire harness clamps to the wire harness bracket.
   3. Connect the air fuel ratio sensor connector.

1. Install the battery tray with the 3 bolts.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

2. Connect the fuel pipe clamp to the battery tray.

Refer to INSTALLATION [04/2013 - 09/2020]

Refer to PROCEDURE - Step 105 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 106 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 106 [10/2016 - 10/2017]

Refer to PROCEDURE - Step 9 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 10/2017]

1. Perform "Inspection After Repair" after replacing an air fuel ratio sensor.

   Refer to INITIALIZATION [04/2013 - 10/2017]
