VC Output Circuit [10/2015 - ]: Wiring Diagram
WARNING: This page is about a different car, the 2019 Lexus GS 300, 2018 Lexus GS 300, 2017 Lexus GS 200t, and 2016 Lexus GS 200t. However, it is still accessible from the selected car via links, so may be relevant.
- For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to WIRING DIAGRAM

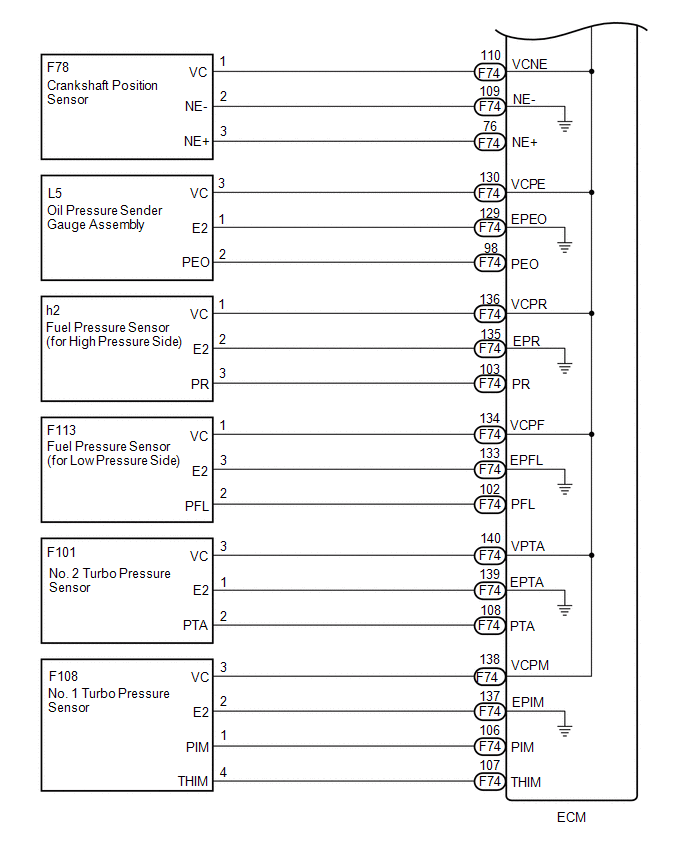

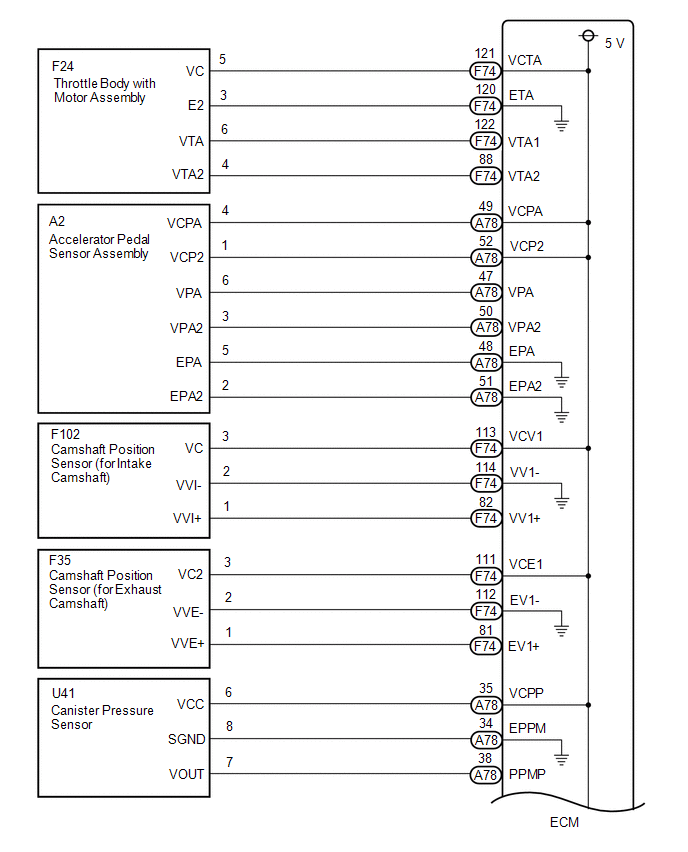

- VC Output Circuit
