Installation [10/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus LS 500, 2023 Lexus LS 500, 2022 Lexus LS 500, and 2021 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL DRIVER MONITOR CAMERA
    NOTE:

    Do not reuse the driver monitor camera if it has been dropped or subjected to a severe impact.

    1. Align the driver monitor camera contact surface with the positioning rib of the upper steering column cover as shown in the illustration.

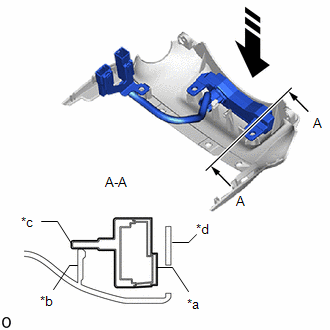

      GTY1228913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Driver monitor camera design surface
      *b Positioning rib
      *c Driver monitor camera contact surface
      *d Upper steering column cover
      Install in this Direction
      NOTE:

      Make sure that the driver monitor camera design surface does not contact the upper steering column cover.

    2. Slide the driver monitor camera in the direction of the arrow shown in the illustration along the positioning rib.

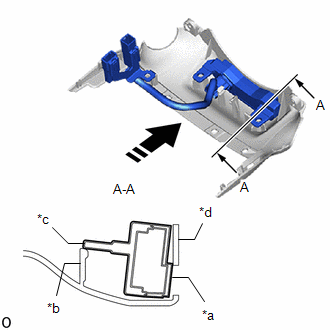

      GTY1229195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Driver monitor camera design surface
      *b Positioning rib
      *c Driver monitor camera contact surface
      *d Upper steering column cover
      Slide in this direction
      NOTE:

      Make sure that the driver monitor camera design surface does not contact the upper steering column cover.

    3. Rotate the driver monitor camera in the direction of the arrow shown in the illustration along the positioning rib and attach the driver monitor camera contact surface to the positioning rib.

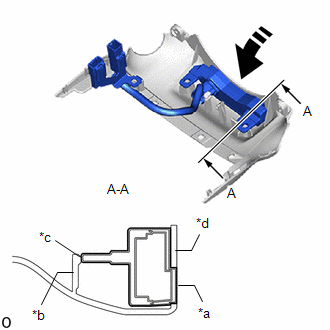

      GTY1232212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Driver monitor camera design surface
      *b Positioning rib
      *c Driver monitor camera contact surface
      *d Upper steering column cover
      Rotate in this direction
    4. Press in the driver monitor camera to temporarily secure it.
    5. Tighten the 3 screws in the order shown in the illustration.

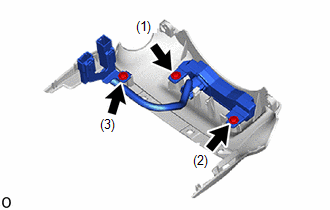

      Fig 1: Driver Monitor Camera Tightening Sequence
      GTY1229997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 1.8 N.m (18 kgf/cm, 16 in.lbf)

      NOTE:

      Visually check that there is no step between the driver monitor camera design surface and upper steering column cover surface.

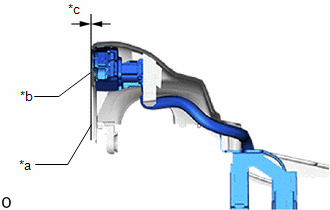

      GTY1232210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Upper Steering Column Cover Surface.
      *b Driver Monitor Camera Design Surface
      *c Difference between the Driver Monitor Camera Design Surface and Upper Steering Column Cover Surface
  2. INSTALL UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 2

  3. INSTALL LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 3

  4. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 20

  5. REMOVE DRIVER MONITOR CAMERA PROTECTIVE TAPE

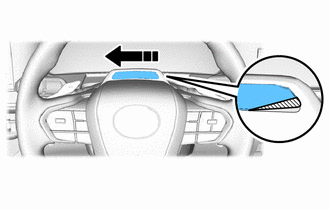

    1. GTY1232470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Hold Here

      Remove the driver monitor camera protective tape as shown in the illustration.
