Installation [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL AIR FUEL RATIO SENSOR

    HINT:

    Perform "Inspection After Repair" after replacing an air fuel ratio sensor.

    Refer to INITIALIZATION [09/2014 - 11/2017]

    1. for Bank 2:
      1. Using SST, install the air fuel ratio sensor to the exhaust manifold LH.
        • SST: 09224-00010

        Specified tightening torque

        Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

        NOTE:

        If the air fuel ratio sensor has been struck or dropped, replace it.

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [09/2014 - 11/2017]

        • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 260 mm (10.2 in.)):

          39 N.m (398 kgf/cm, 29 ft.lbf)

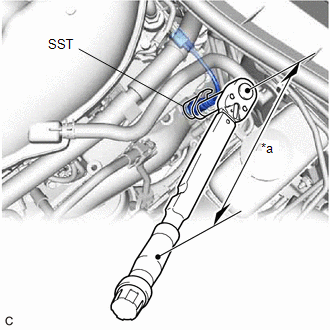

        GTY511378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Torque Wrench Fulcrum Length
      2. Connect the air fuel ratio sensor connector.
    2. for Bank 1:
      1. Using SST, install the air fuel ratio sensor to the exhaust manifold RH.
        • SST: 09224-00010

        Specified tightening torque

        Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

        NOTE:

        If the air fuel ratio sensor has been struck or dropped, replace it.

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [09/2014 - 11/2017]

        • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 260 mm (10.2 in.)):

          39 N.m (398 kgf/cm, 29 ft.lbf)

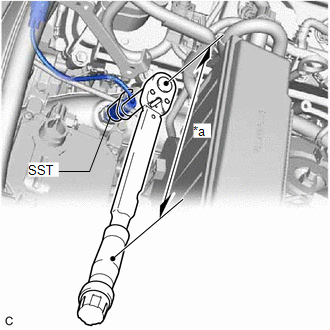

        GTY514710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Torque Wrench Fulcrum Length
      2. Engage the 2 wire harness clamps.
      3. Connect the air fuel ratio sensor connector.
  2. INSTALL BATTERY TRAY
    1. Install the battery tray with the 2 bolts.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

    2. Engage the fuel pipe clamp to the battery tray.
  3. INSTALL POWER STEERING ECU ASSEMBLY

    Refer to INSTALLATION [09/2014 - ]

  4. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 117 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 118 [10/2015 - 11/2017]

  5. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 9

  6. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after replacing an air fuel ratio sensor.

      Refer to INITIALIZATION [09/2014 - 11/2017]
