DTC C1A05: Stop Light Switch Circuit [11/2017 - 01/2023]: Procedure

  1. CHECK TERMINAL VOLTAGE (POWER SOURCE OF STOP LIGHT SWITCH ASSEMBLY)
    1. Disconnect the A52 stop light switch assembly connector.

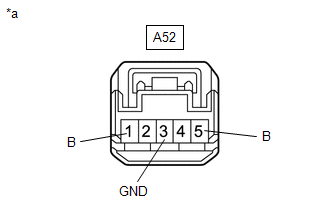

      GTY788114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Stop Light Switch Assembly)
    2. Measure the voltage and resistance according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A52-1 (B) - Body ground Always 11 to 14 V
      A52-5 (B) - Body ground Engine switch on (IG) 11 to 14 V

      Standard Resistance

      Tester Connection Condition Specified Condition
      A52-3 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  2

  2. INSPECT STOP LIGHT SWITCH ASSEMBLY
    1. Inspect the stop light switch assembly.

      Refer to ON-VEHICLE INSPECTION [09/2014 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE STOP LIGHT SWITCH ASSEMBLY. Refer to  COMPONENTS [09/2014 - ]

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (DRIVING SUPPORT ECU ASSEMBLY - STOP LIGHT SWITCH ASSEMBLY)
    1. Disconnect the Q2 driving support ECU assembly connector.
    2. Disconnect the A52 stop light switch assembly connector.
    3. Disconnect the A13 certification ECU (smart key ECU assembly) connector.
    4. Disconnect the A86 brake actuator assembly (skid control ECU) connector.
    5. Disconnect the O45 transmission floor shift assembly (shift lock control unit) connector.
    6. Disconnect the 2D stop light relay (semiconductor power integration ECU) connector.
    7. Disconnect the A77 ECM connector.
    8. Disconnect the A79 TCM connector.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q2-15 (STP-) - A52-2 (L) Always Below 1 Ω
      Q2-1 (ST1-) - A52-4 (L) Always Below 1 Ω
      Q2-15 (STP-) or A52-2 (L) - Body ground Always 10 kΩ or higher
      Q2-1 (ST1-) or A52-4 (L) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE DRIVING SUPPORT ECU ASSEMBLY. Refer to  COMPONENTS [09/2014 - 01/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
