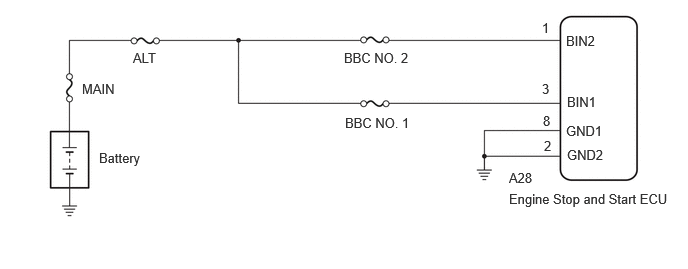

DTC P0606-29: Backup Boost Converter "A" Control CPU Signal Invalid [11/2021 - 03/2023]: Wiring Diagram

GTY1080229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
