System Diagram [11/2021 - ]

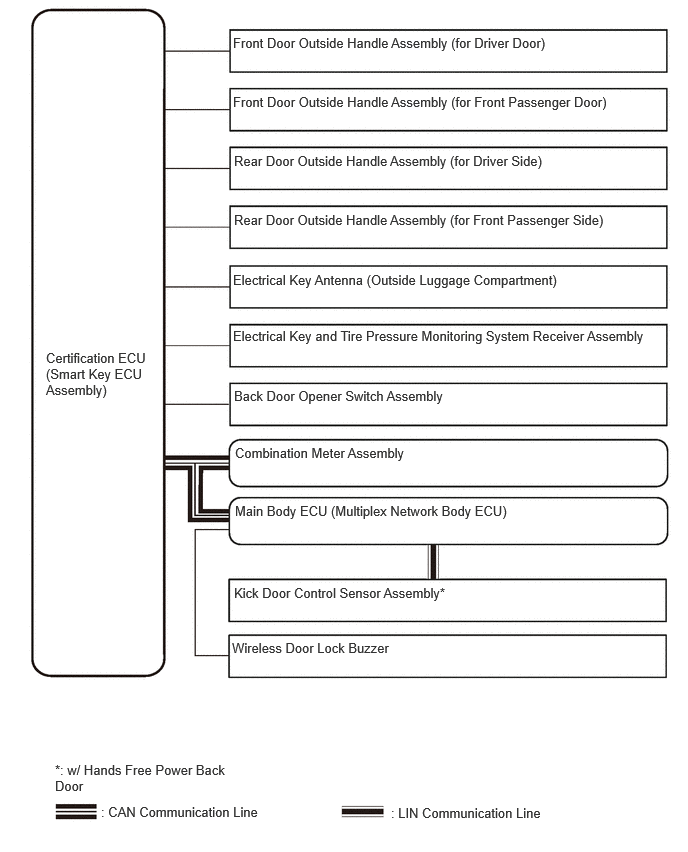

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)
    GTY1058371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

    Refer to SYSTEM DIAGRAM [11/2021 - 03/2023] , or refer to SYSTEM DIAGRAM [03/2023 - ]

  3. E-LATCH SYSTEM

    Refer to SYSTEM DIAGRAM [11/2021 - ]

  4. WIRELESS DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [11/2021 - ]
