Operation Method [11/2021 - ]: Procedure

1. Fully apply the parking brake and chock a wheel.

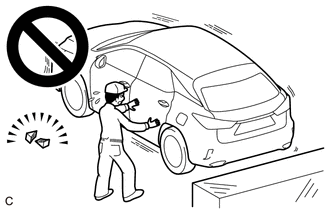

   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.
   • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to REMOVAL [11/2021 - ]

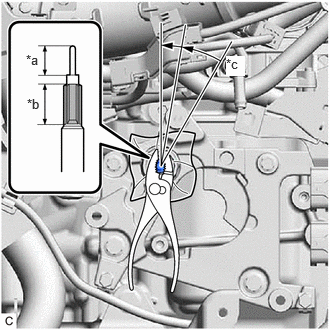

1. Using a pair of pliers, grip the spline portion (*b) of the parking lock shaft that has been wrapped with a cloth or other material and rotate it 2 notches in the direction shown by the arrow in the illustration to release the parking lock.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	2-flats Portion of Parking Lock Shaft
   *b	Spline Portion of Parking Lock Shaft
   *c	Rotate 2 Notches

   NOTE:

   • Do not grip the 2-flats portion (*a) of the parking lock shaft.
   • Make sure to use a cloth or other material to prevent damage to the spline portion (*b) of the parking lock shaft.

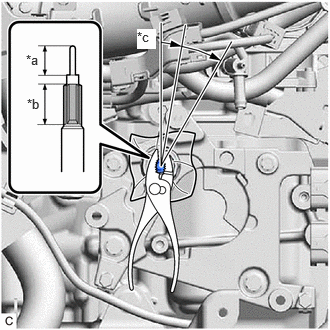

1. Using a pair of pliers, grip the spline portion (*b) of the parking lock shaft that has been wrapped with a cloth or other material and rotate it 2 notches in the direction shown by the arrow in the illustration to apply the parking lock.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	2-flats Portion of Parking Lock Shaft
   *b	Spline Portion of Parking Lock Shaft
   *c	Rotate 2 Notches

   NOTE:

   • Do not grip the 2-flats portion (*a) of the parking lock shaft.
   • Make sure to use a cloth or other material to prevent damage to the spline portion (*b) of the parking lock shaft.
