Reassembly [11/2021 - ]: Procedure

  1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU
  2. INSTALL STEERING LOCK ACTUATOR WITH ECU ASSEMBLY (w/ Steering Lock Actuator Assembly)

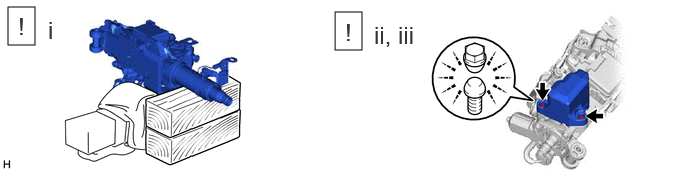

    1. GTY1061357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Secure the steering column assembly in a vise between aluminum plates.
        NOTE:

        Do not overtighten the vise.

      2. Temporarily install the steering lock actuator with ECU assembly with 2 new steering lock set bolts.
      3. Tighten the 2 steering lock set bolts until the bolt head breaks off.
