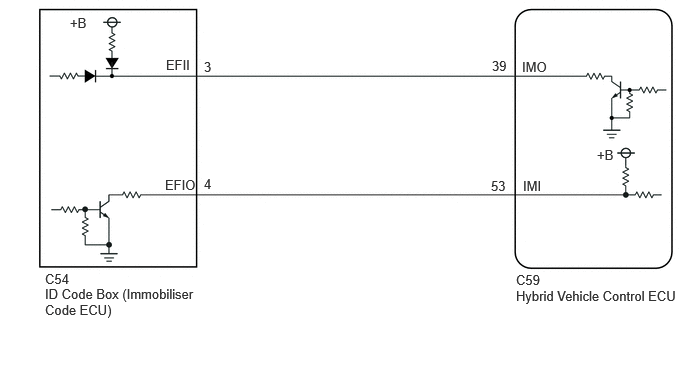

DTC B2799-86: Engine Immobilizer System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid [10/2022 - ]: Wiring Diagram

GTY1132748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
