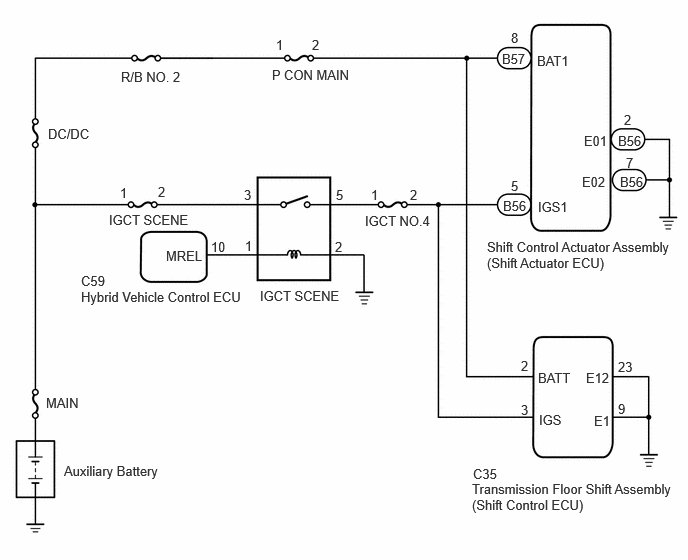

DTC P18A8-62: Gear Shift Control Module "A"/"B" IGCT-Scene Signal Compare Failure [08/2023 - ]: Wiring Diagram

GTY1207152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
