4WD

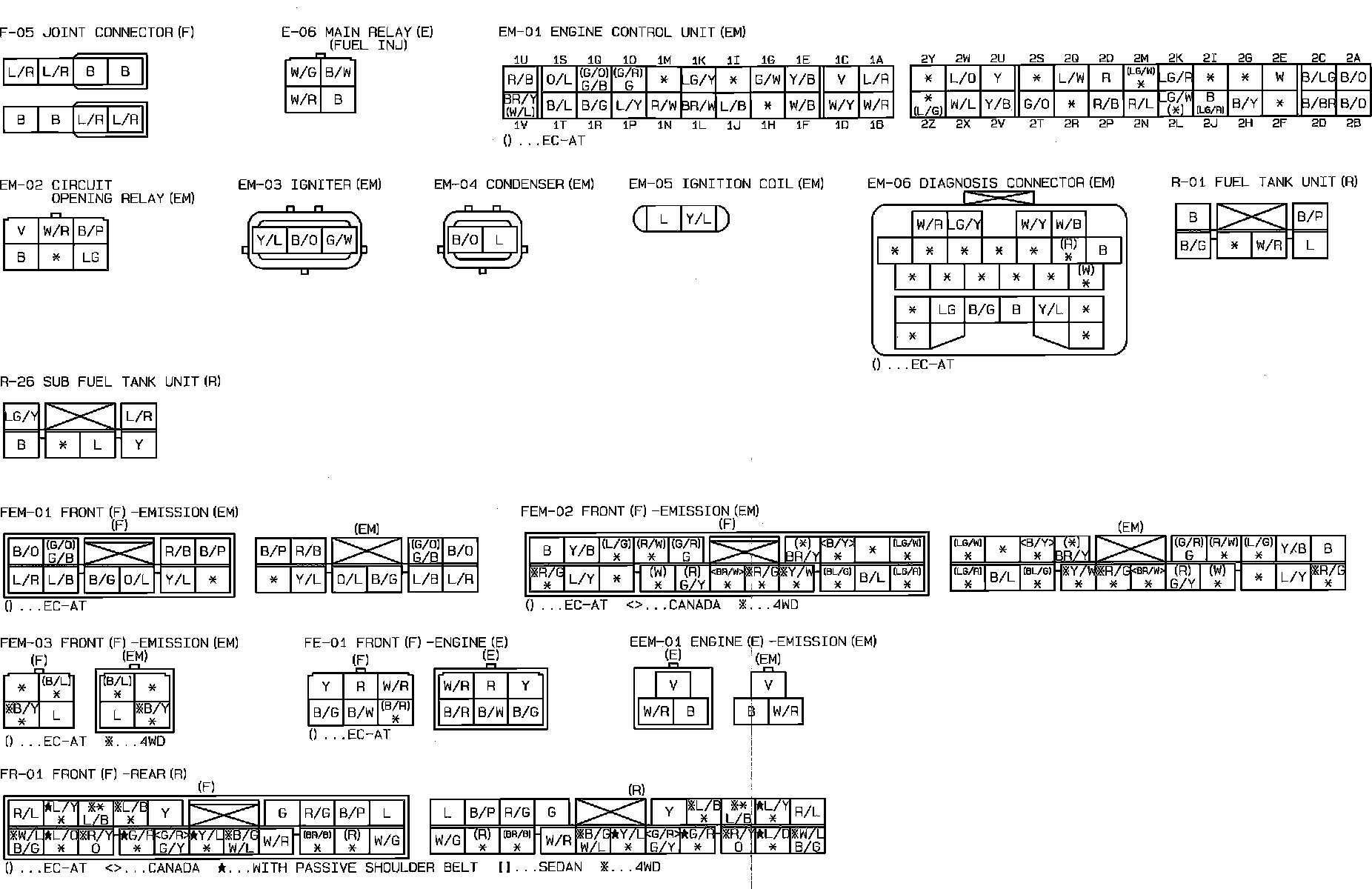

Engine Control System. 4WD. Connector Identification:

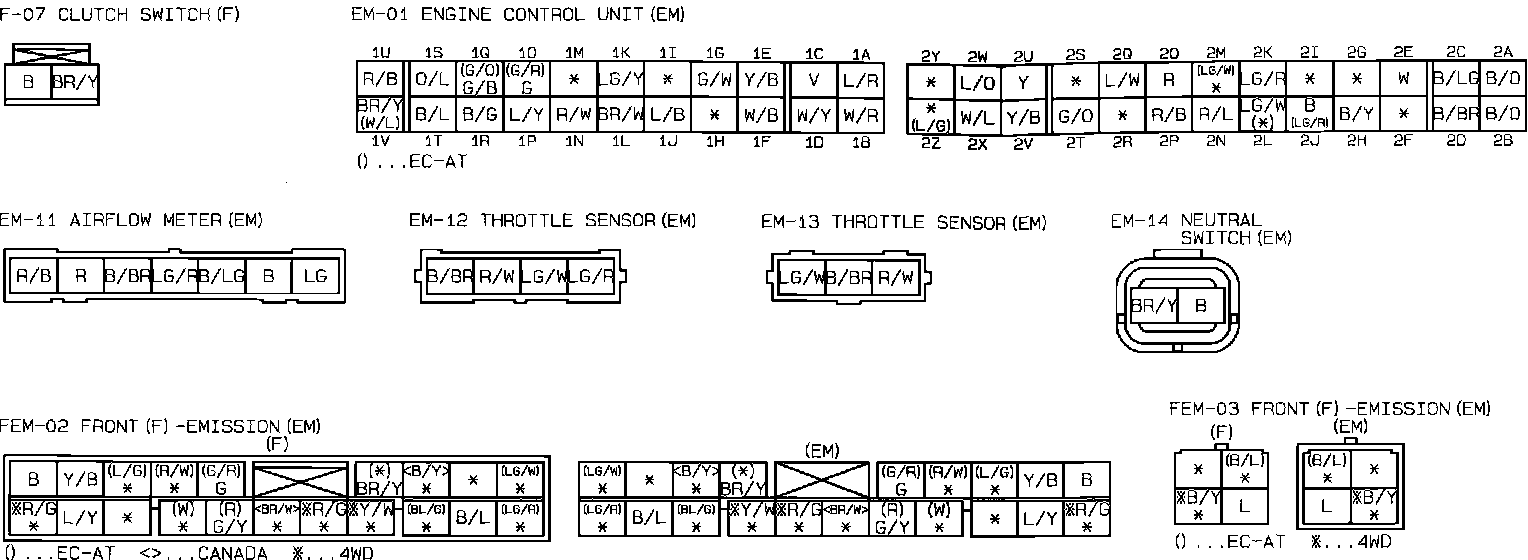

Engine Control System. 4WD. Connector Identification:

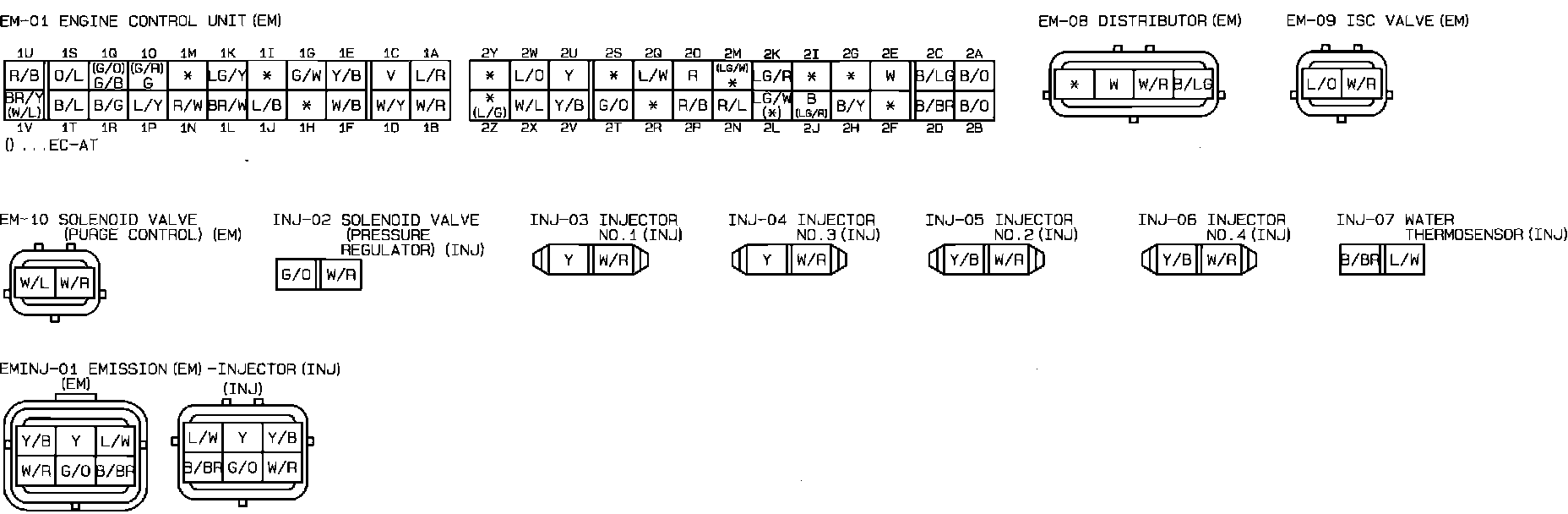

Engine Control System. 4WD. Connector Identification:

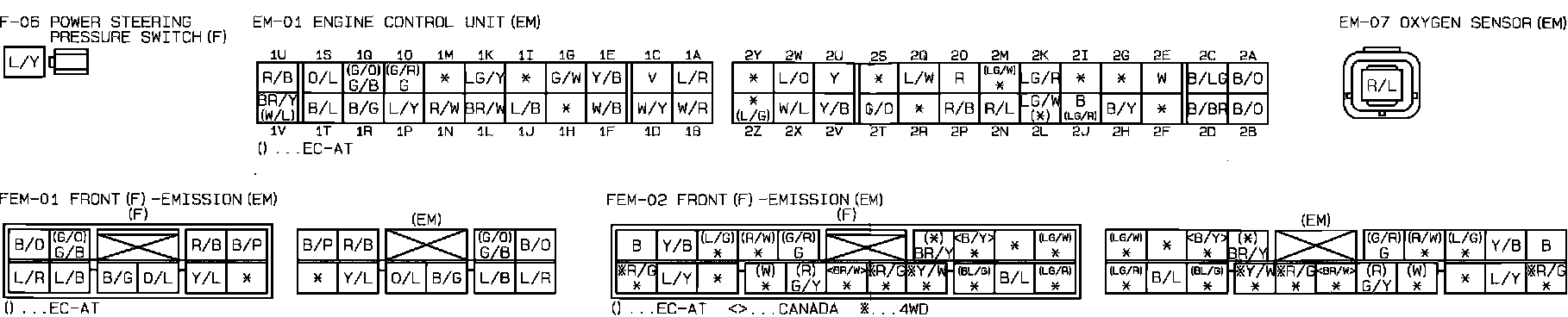

Engine Control System. 4WD. Connector Identification:
