4WD

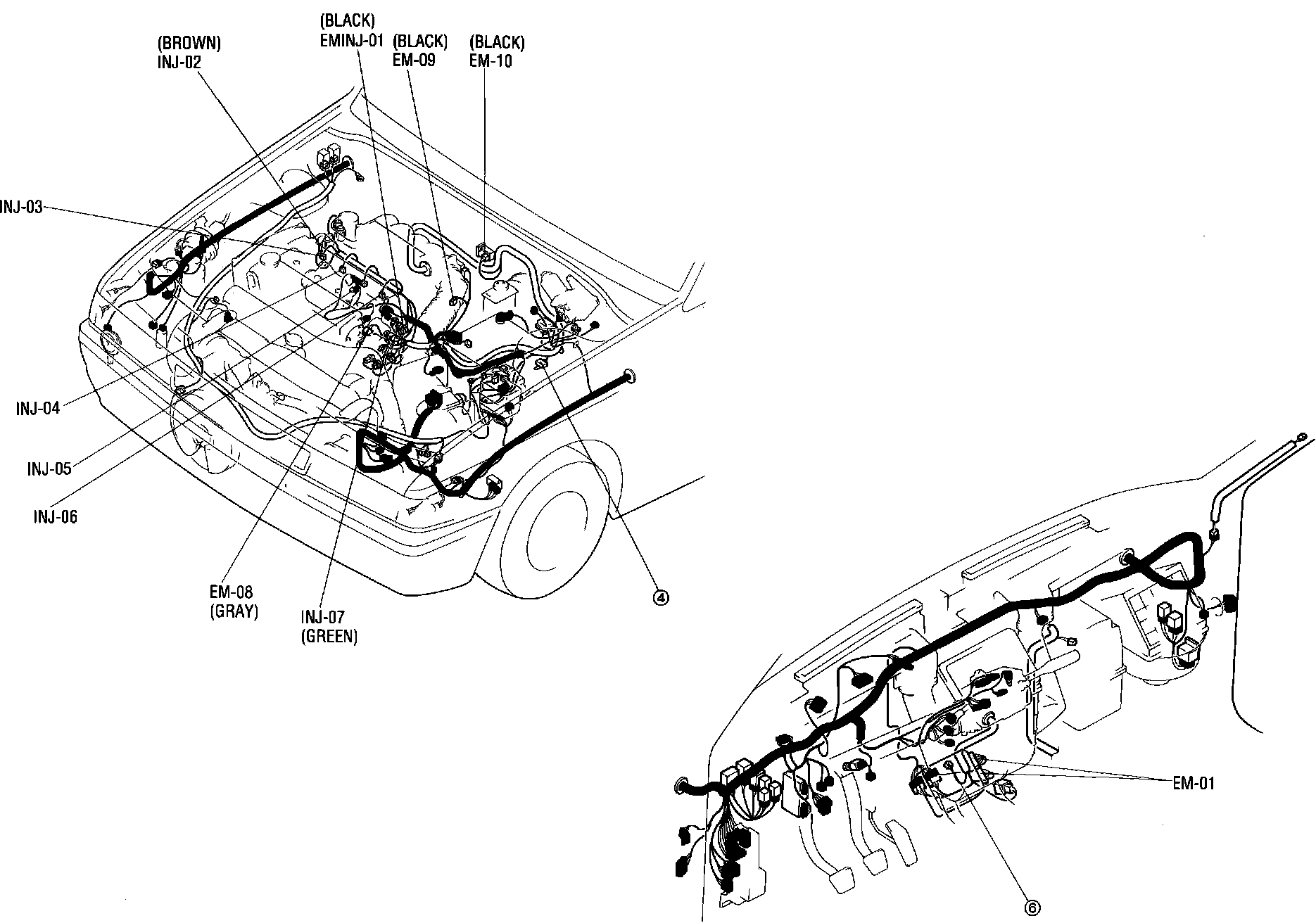

Engine Control System. 4WD. Harness Locations:

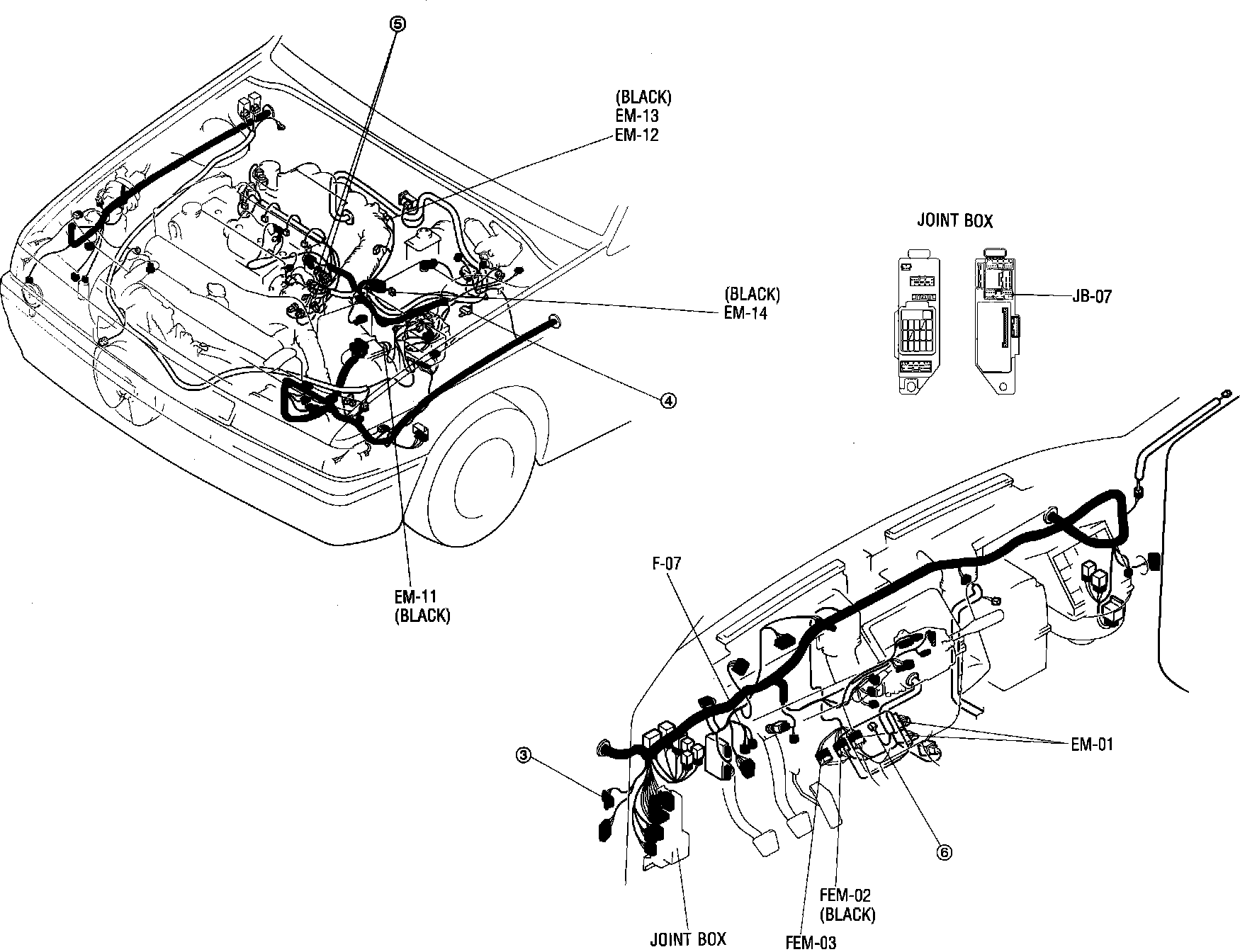

Engine Control System. 4WD. Harness Locations:

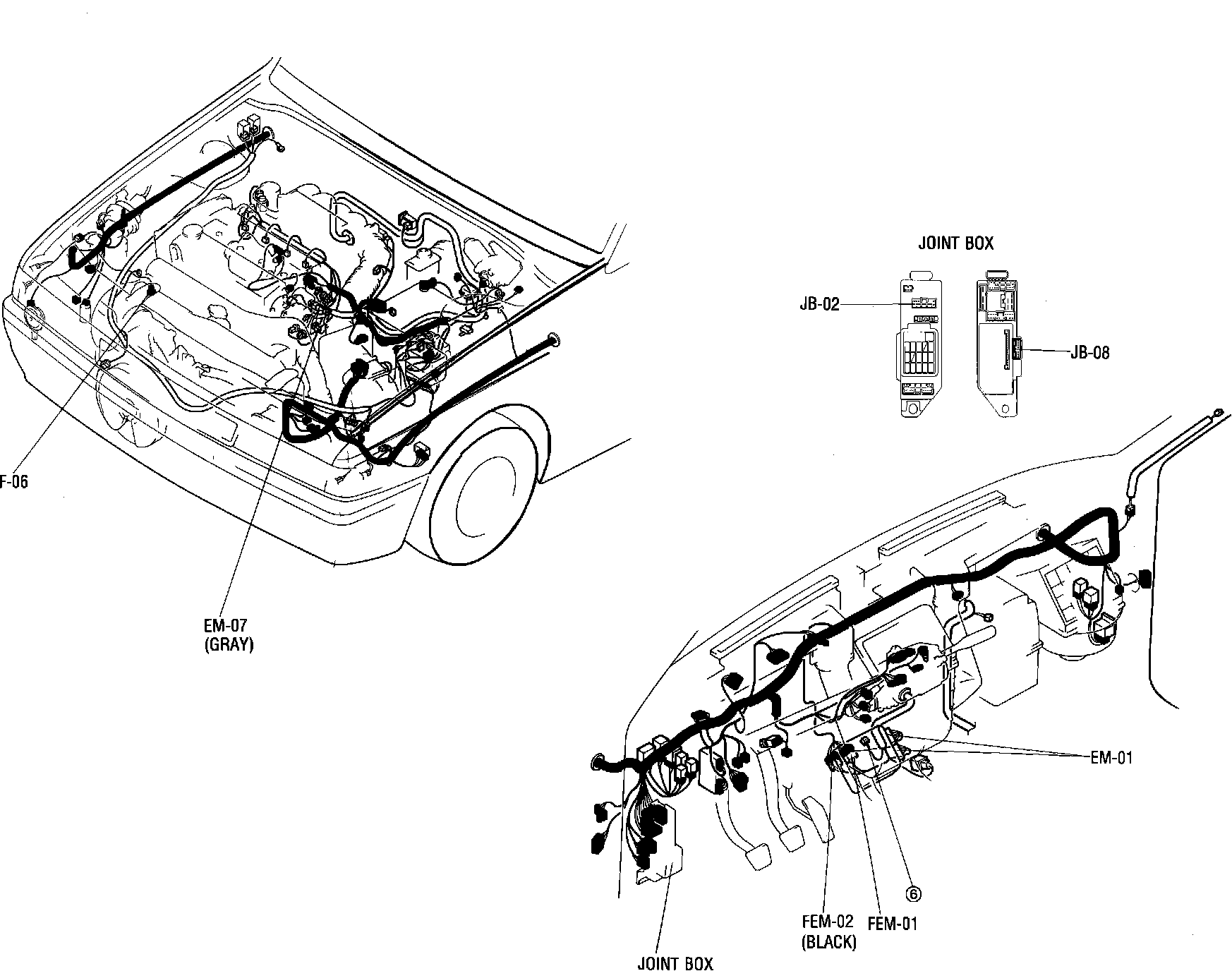

Engine Control System. 4WD. Harness Locations:

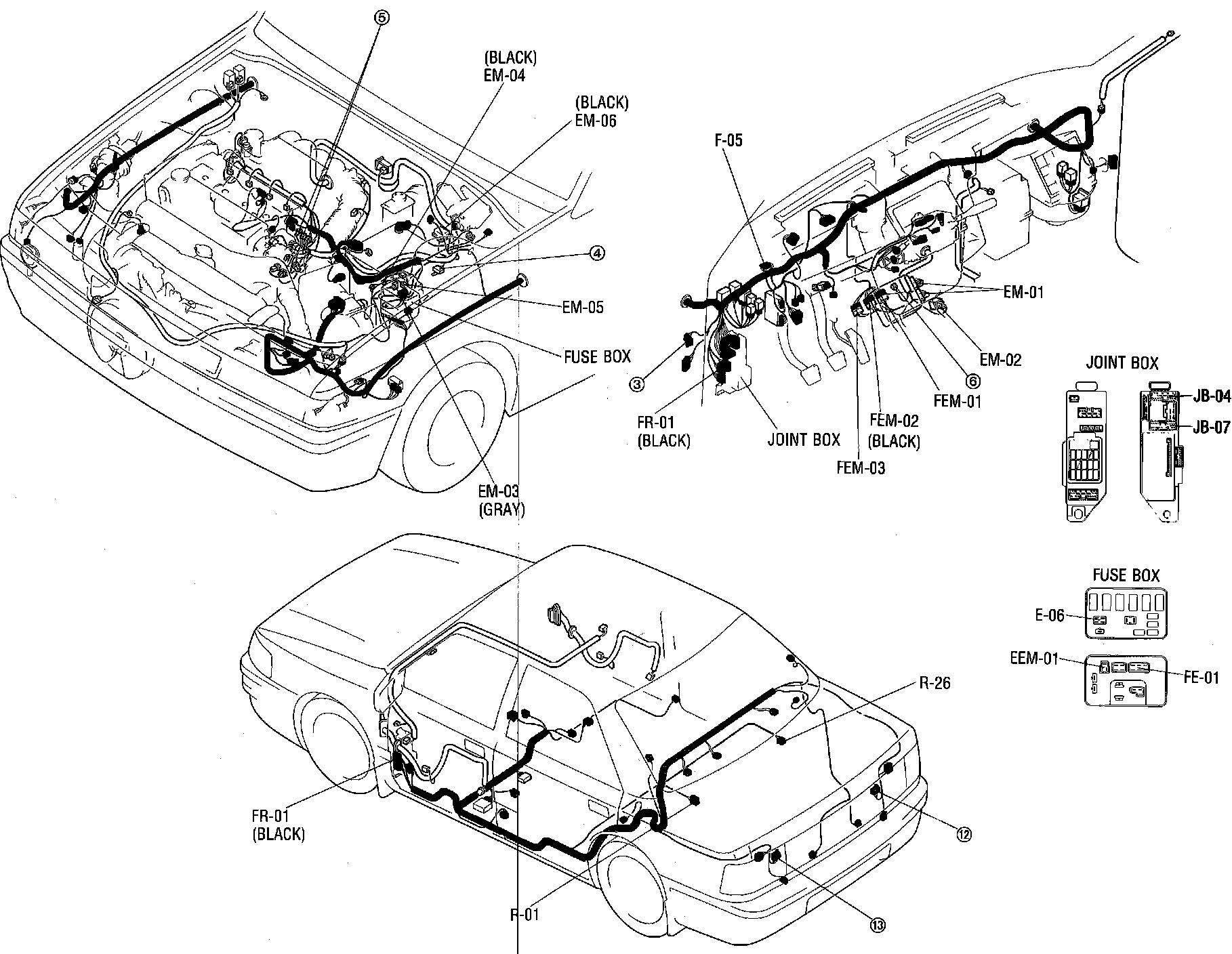

Engine Control System. 4WD. Harness Locations:
