Engine Control - Page Corrections Using EC-At Tester

89mazda10

Category 60
Applicable Model/s 1990 626/MX-6
Subject WORKSHOP MANUAL CORRECTIONS
Bulletin No. 085/89
Issued 12/15/89
Revised






DESCRIPTION

Listed below are pages for the 1990 626/MX-6 Workshop Manual which required revisions. Please replace the current pages with the replacement pages provided.

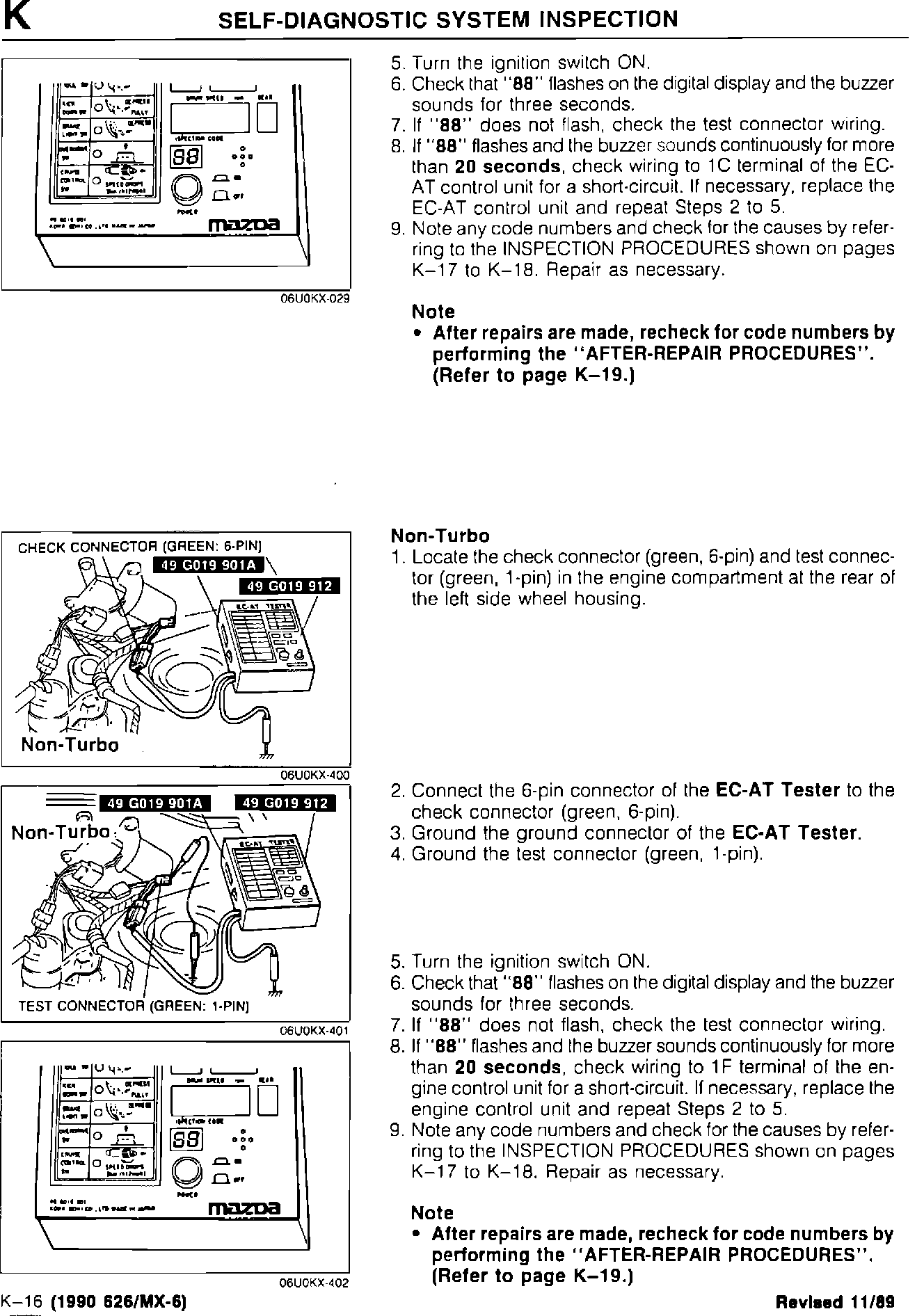

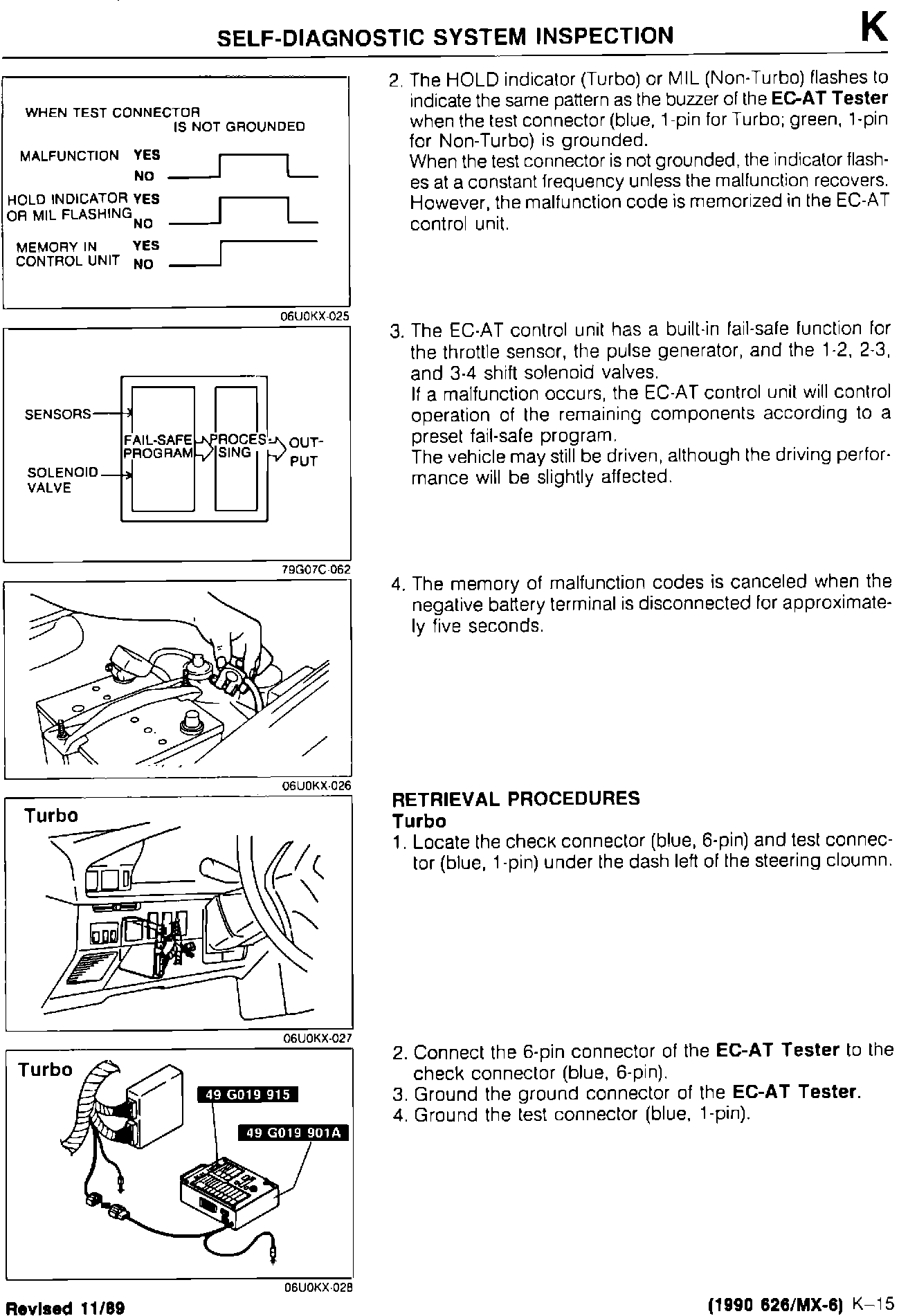

Pages K-15 & K-16
