Ignition Switch

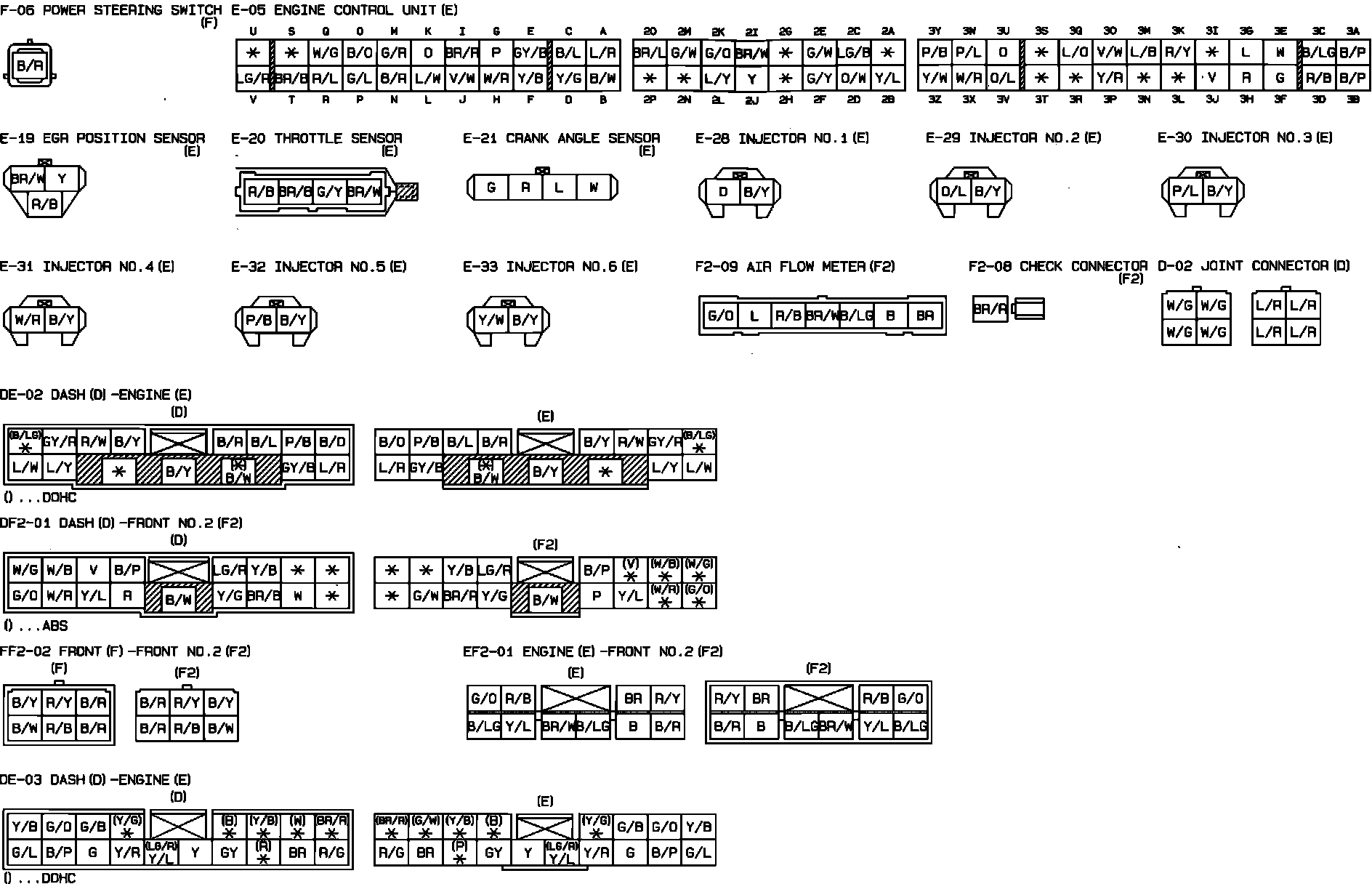

Ignition & Engine Control System. DOHC Engine. Connector Identification:

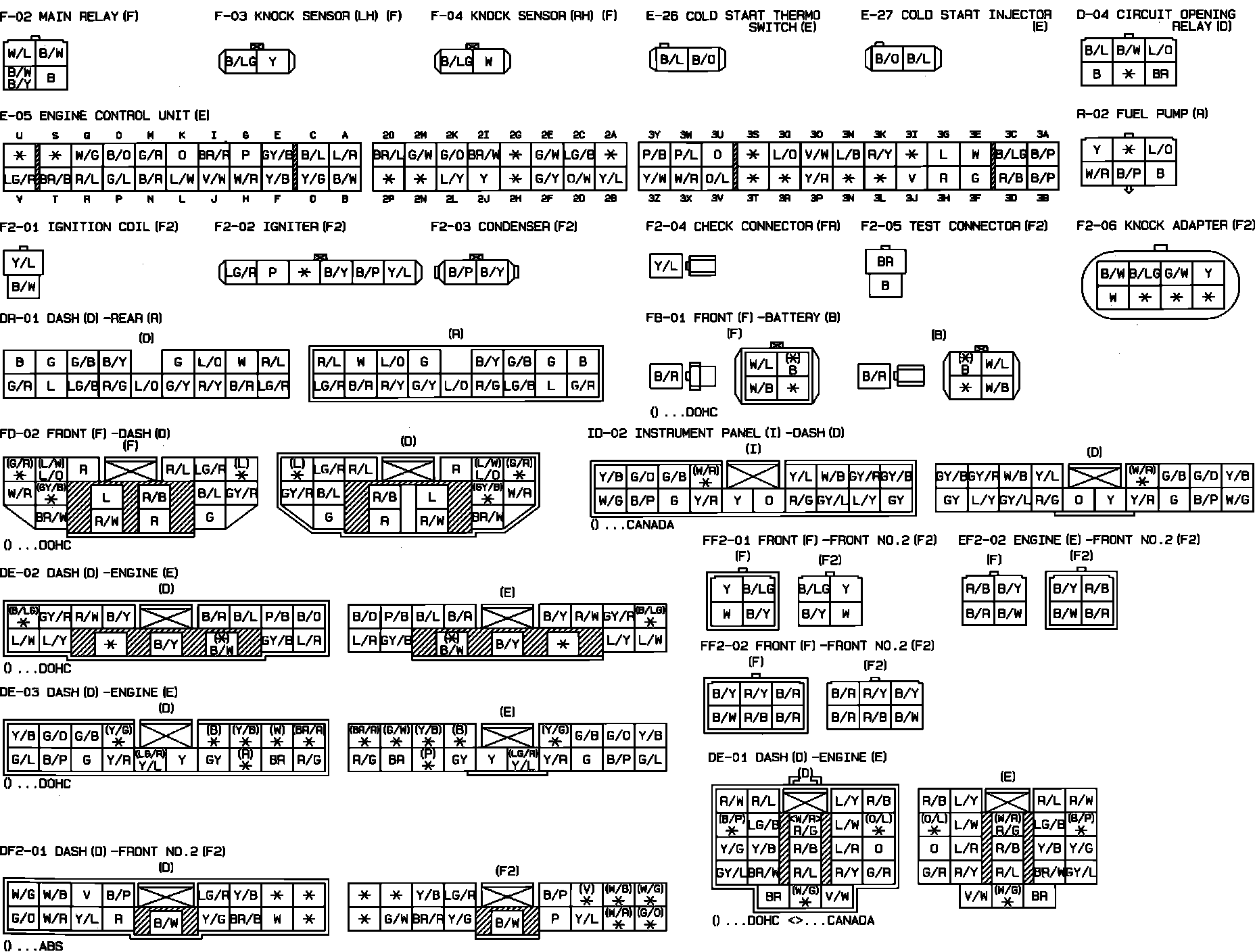

Ignition & Engine Control System. DOHC Engine. Connector Identification:

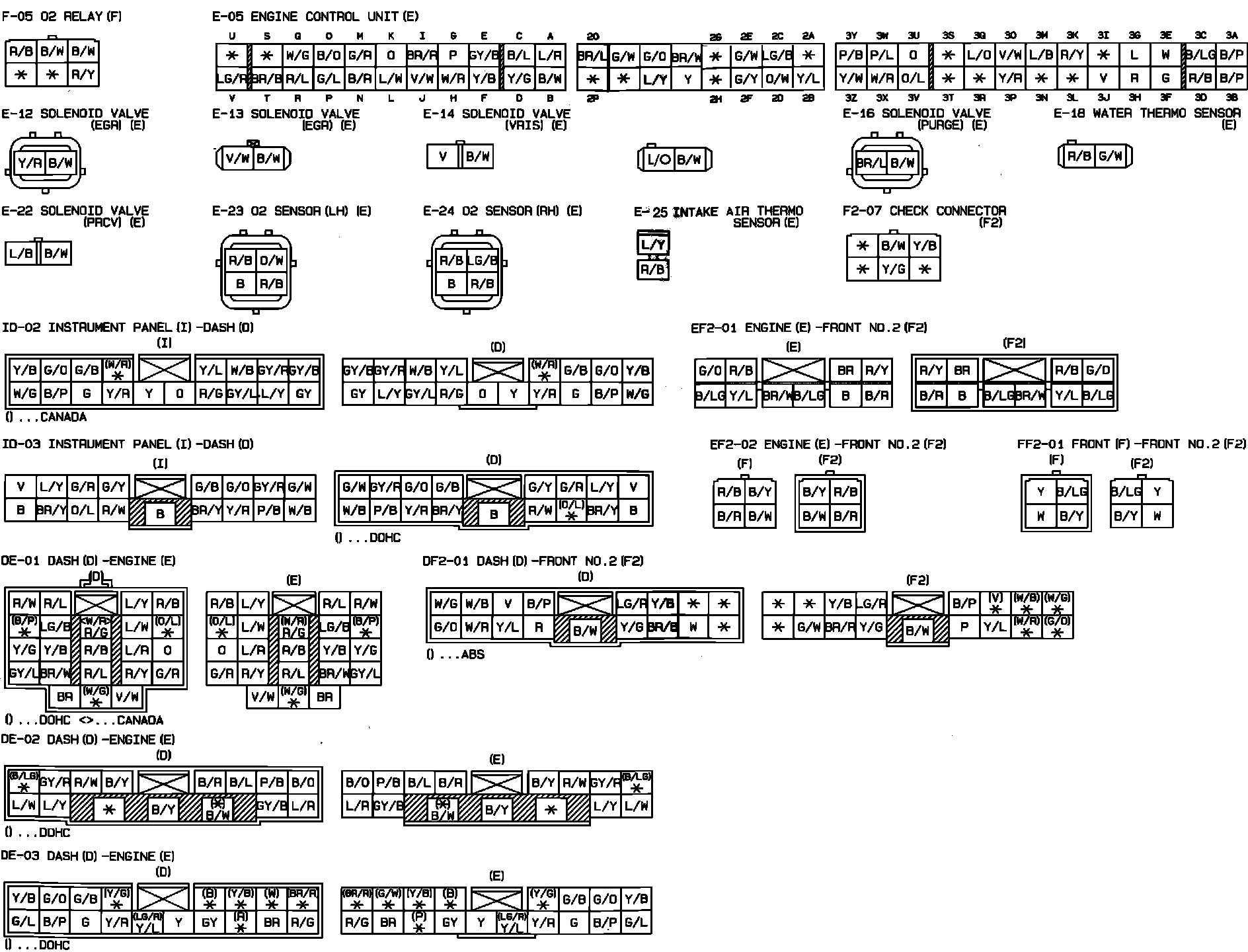

Ignition & Engine Control System. DOHC Engine. Connector Identification:
