Torque Specifications

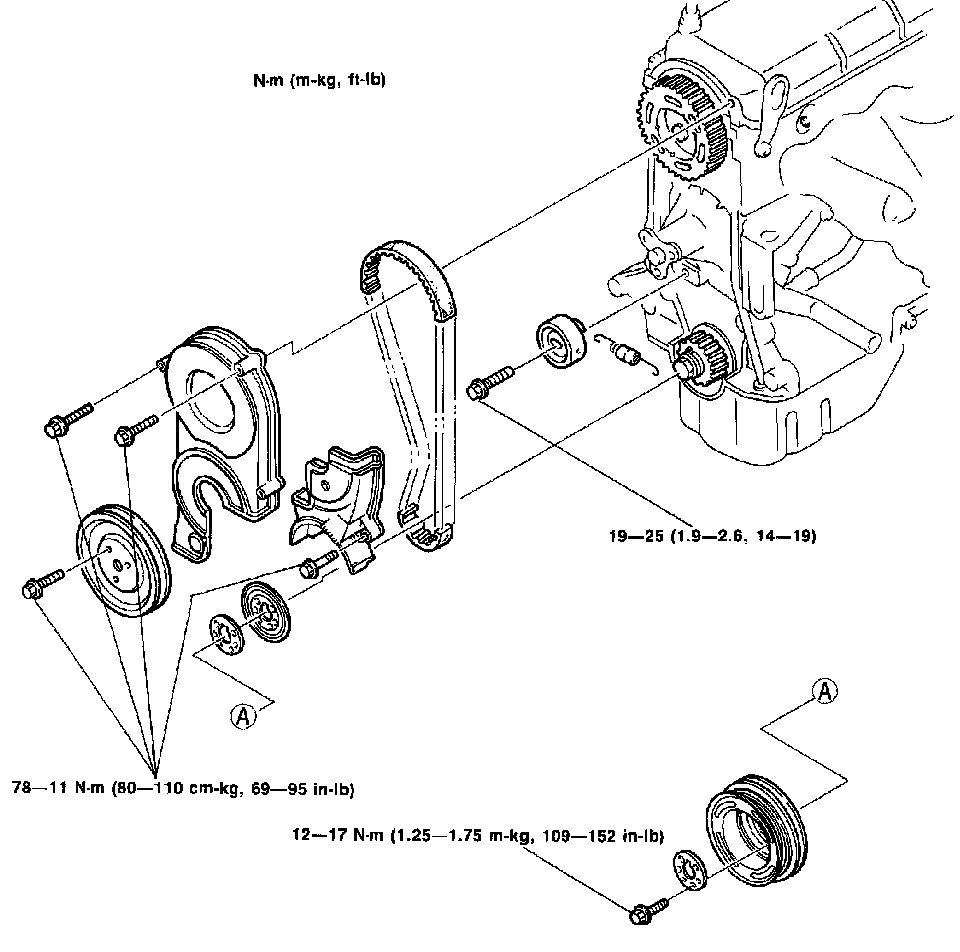

Timing Components:

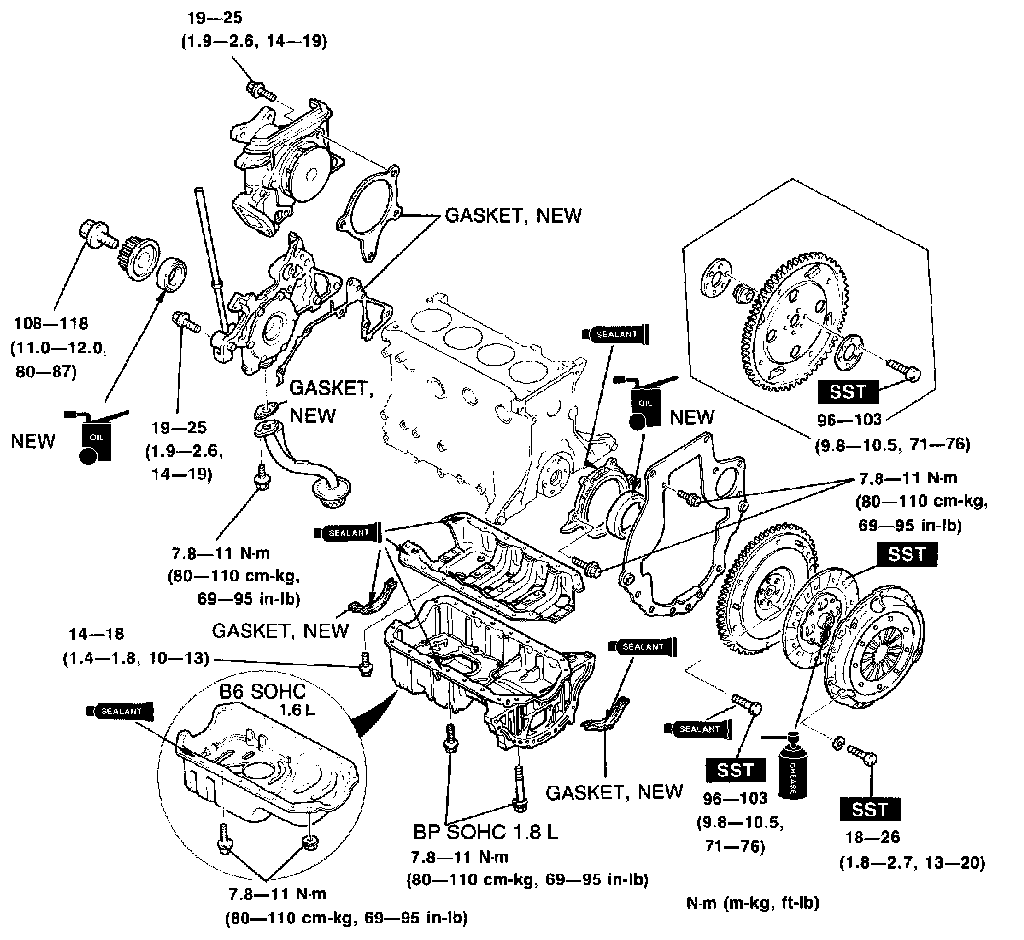

Lower Engine:

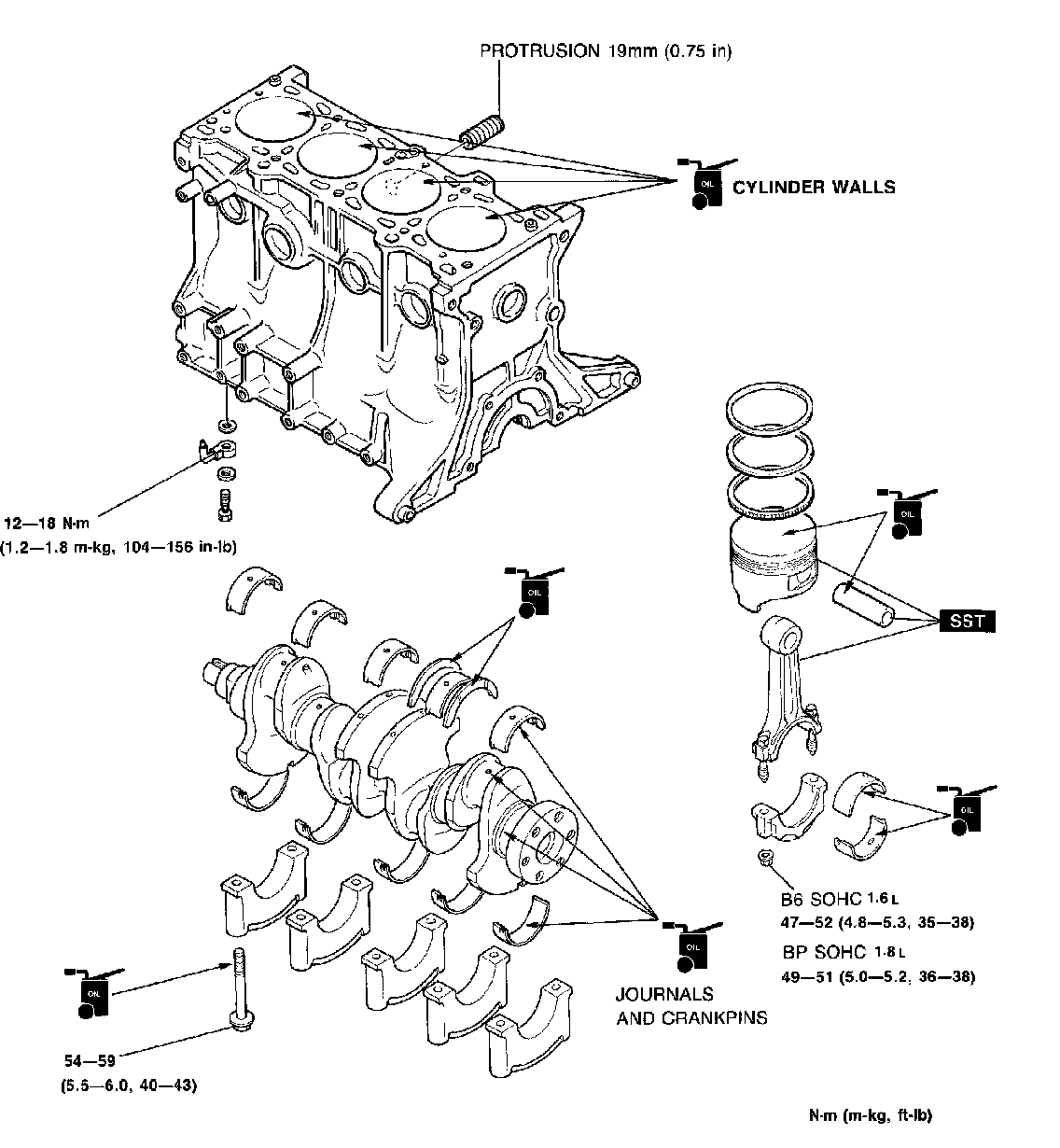

Main Bolt Torque/Sequence:






Flywheel (M/T) Torque/Sequence:






Flex Plate (A/T) Torque/Sequence:
