Torque Specifications

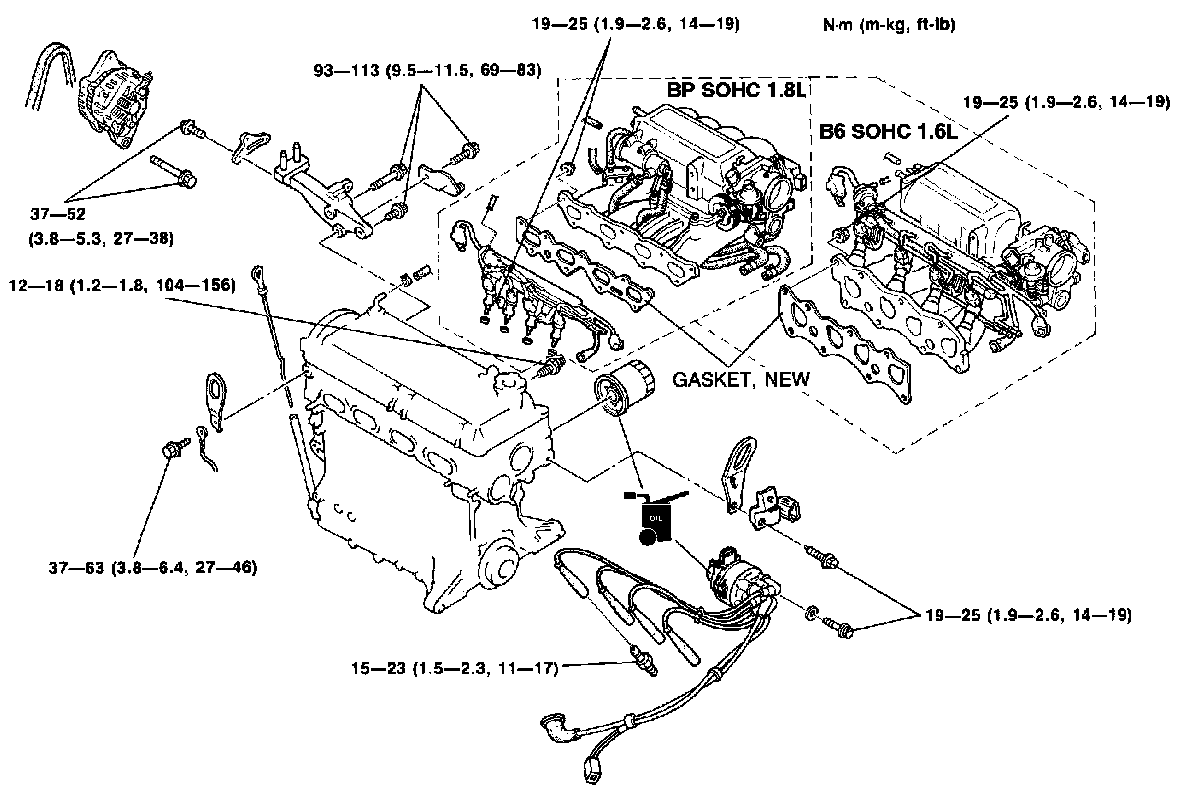

Intake:

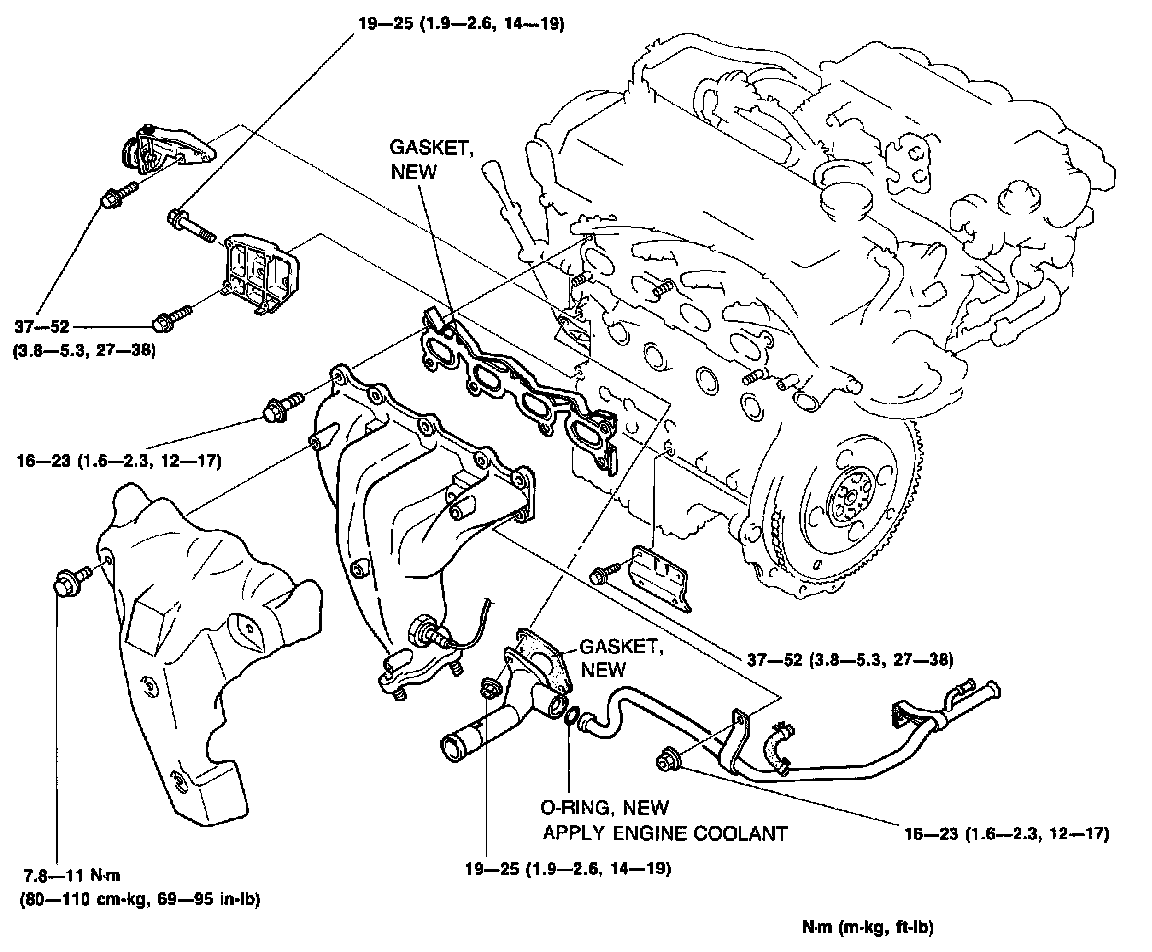

Exhaust Manifold:

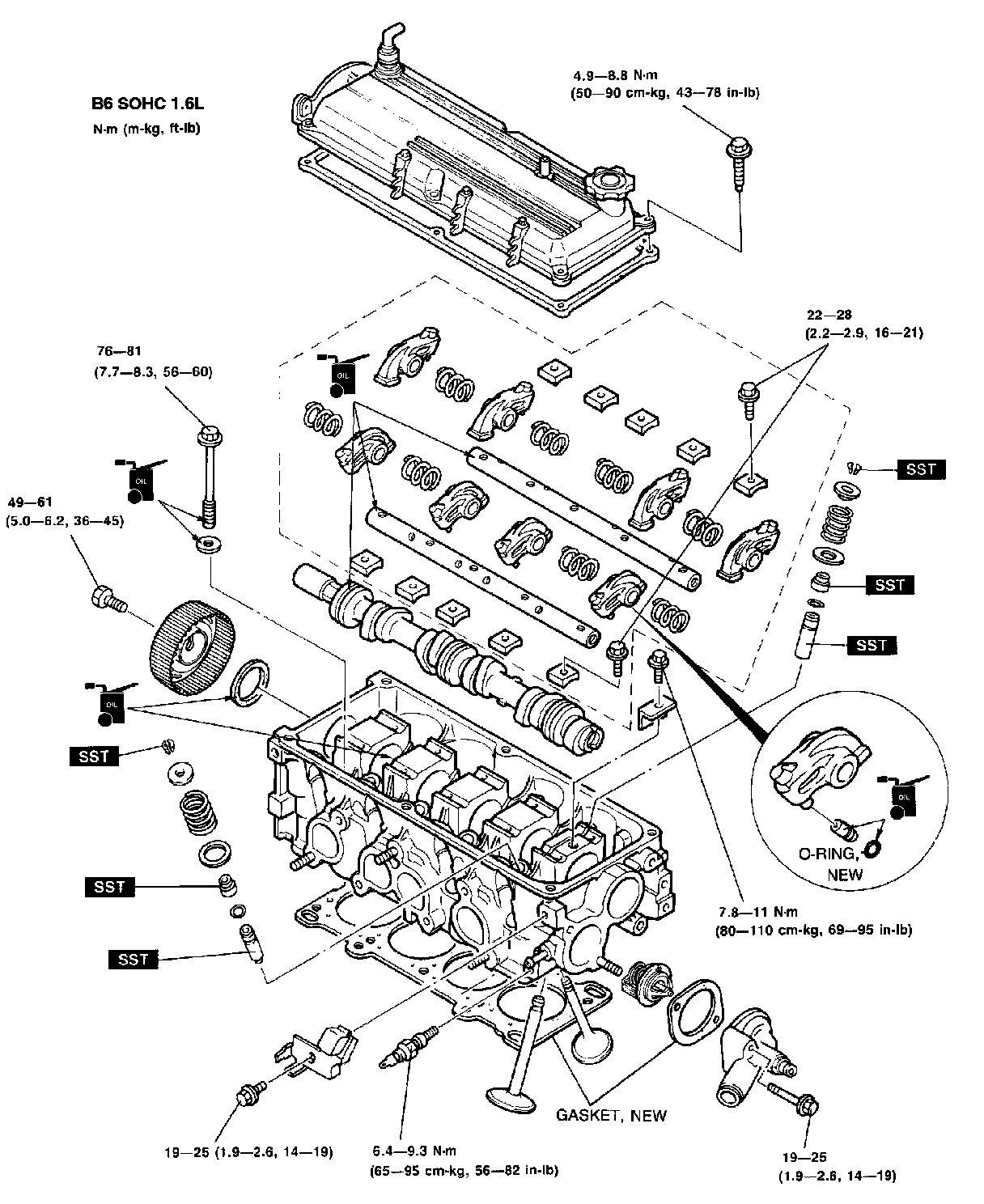

Upper Engine B6 1.6L:






Head Bolt Torque/Sequence B6 1.6L:

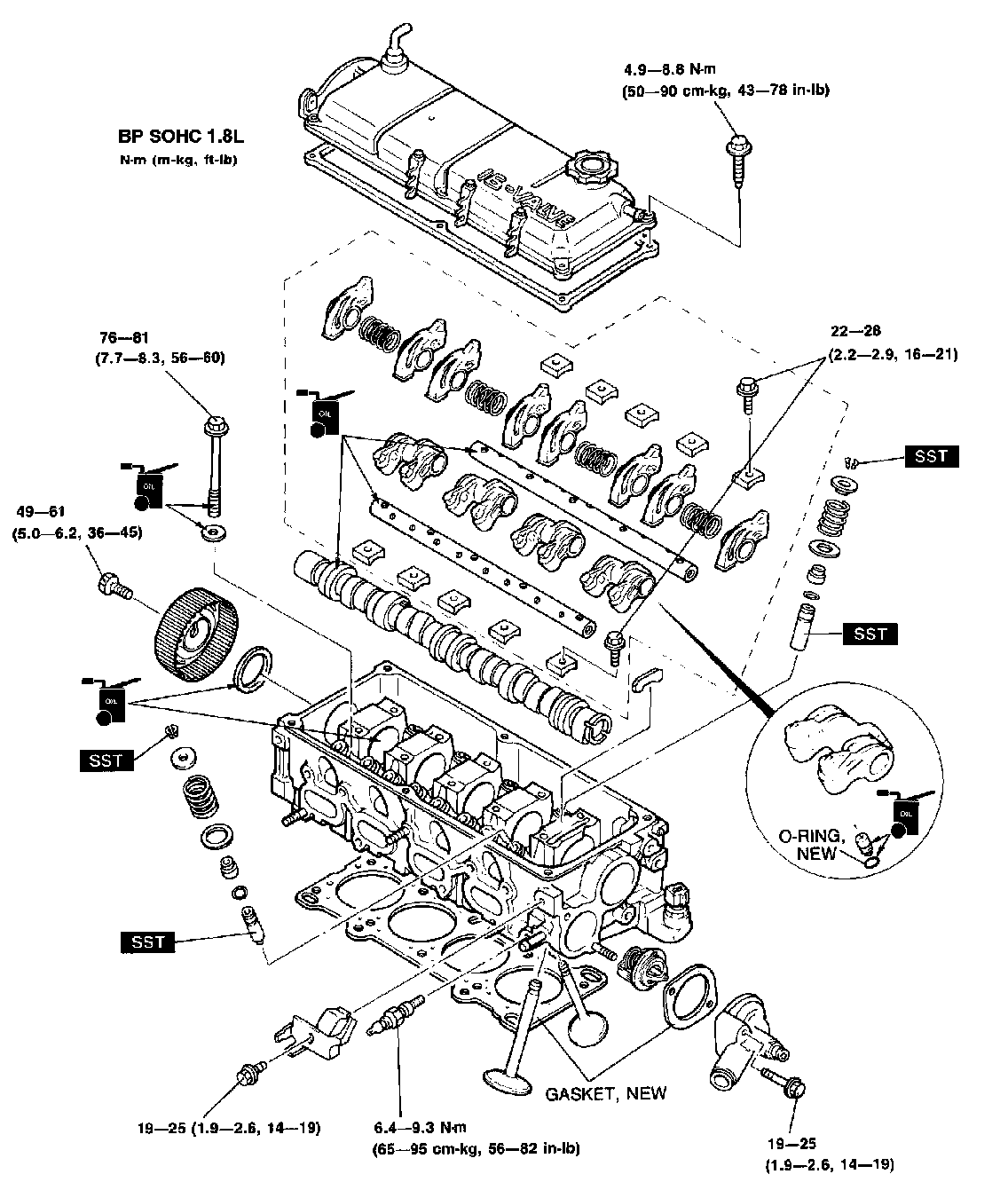

Upper Engine BP 1.8L:






Head Bolt Torque/Sequence BP 1.8L:
