LOGICON Rec/Fresh Motor Circuit

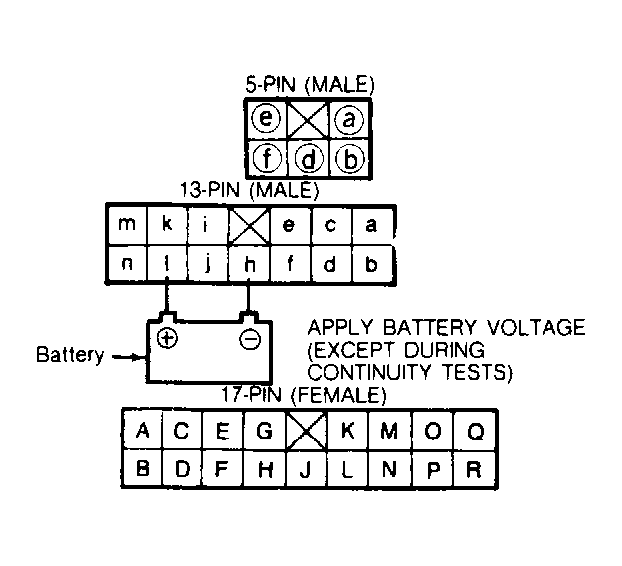

Connect jumper wire between terminals "c" and "h" of 13-pin male connector. Connect voltmeter negative lead to "h" terminal and positive lead to "d" terminal. See Figure . Reading should be 12 volts. If 12 volts are not indicated, replace logicon switch.
