Front Cross-Member: Service and Repair

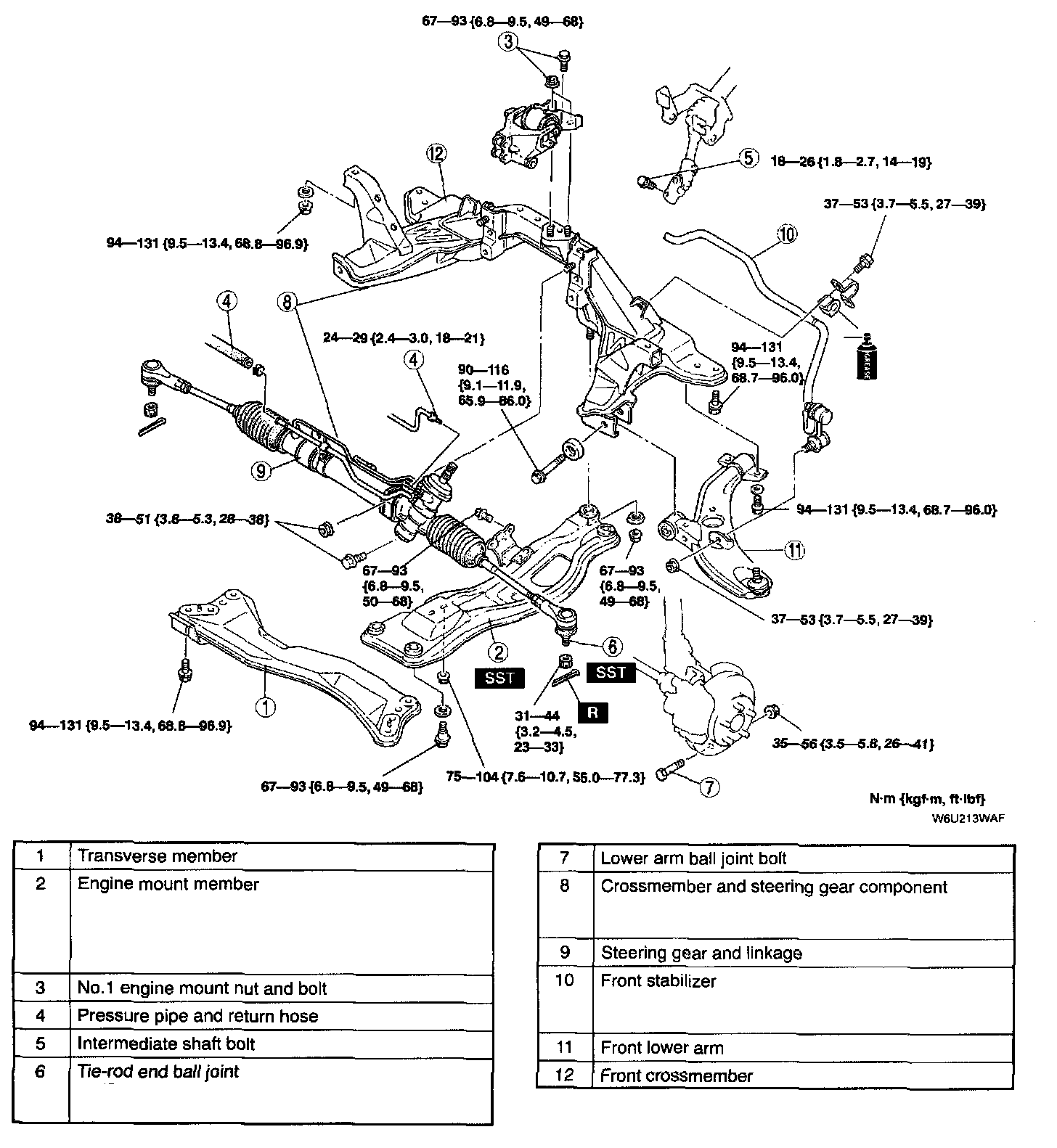

TRANSVERSE MEMBER AND FRONT CROSSMEMBER REMOVAL/INSTALLATION
1. Remove the front exhaust pipe.





2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Inspect the front wheel alignment and adjust it as necessary.

CROSSMEMBER AND STEERING GEAR COMPONENT REMOVAL NOTE





1. Support the crossmember by using a jack and remove the bolts and nuts.
2. Remove the crossmember and steering gear component.
