Cruise Control Servo: Testing and Inspection

Terminal Voltage List (Reference) - View:

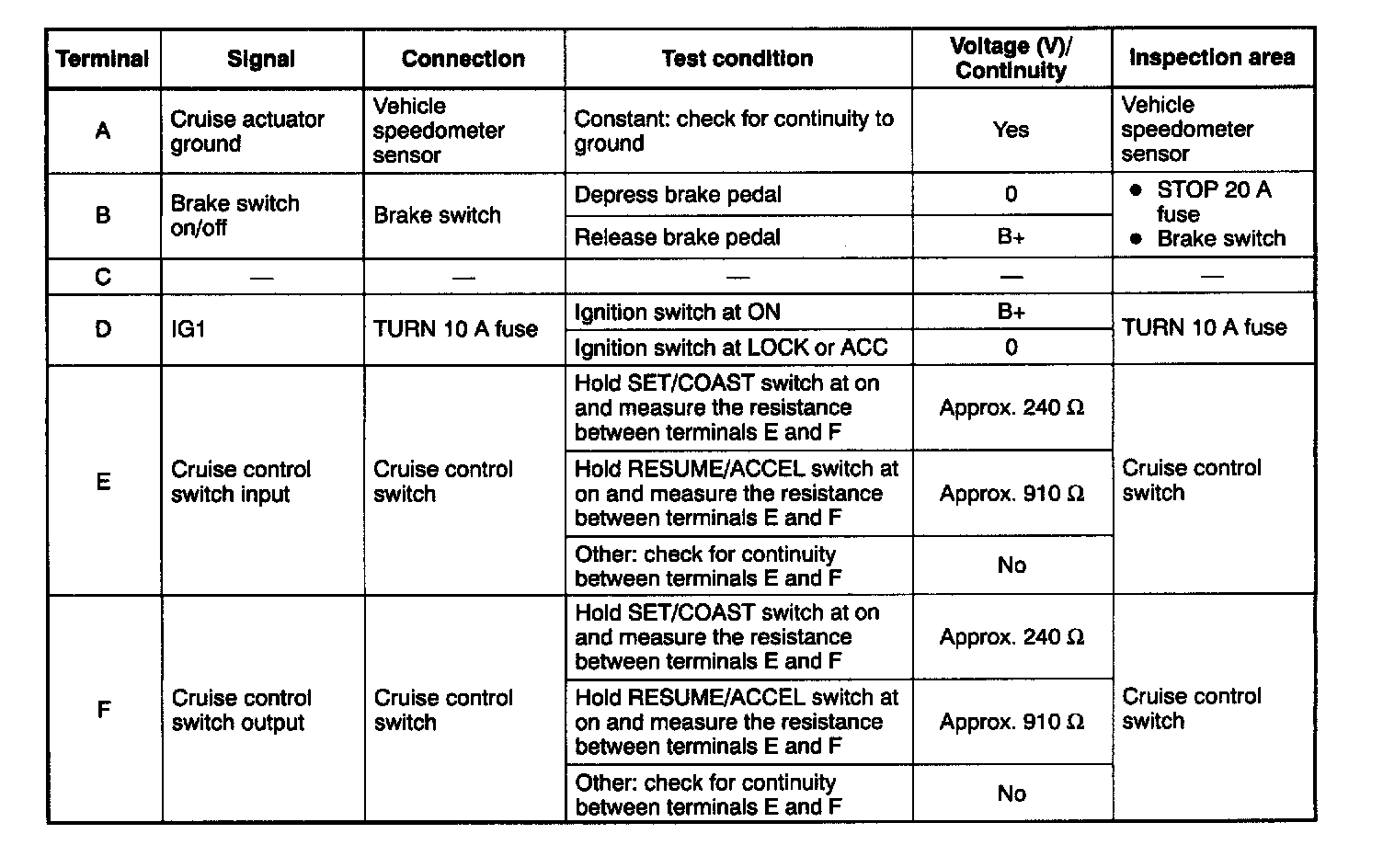

Terminal Voltage List (Reference) - Pinouts (A - F):

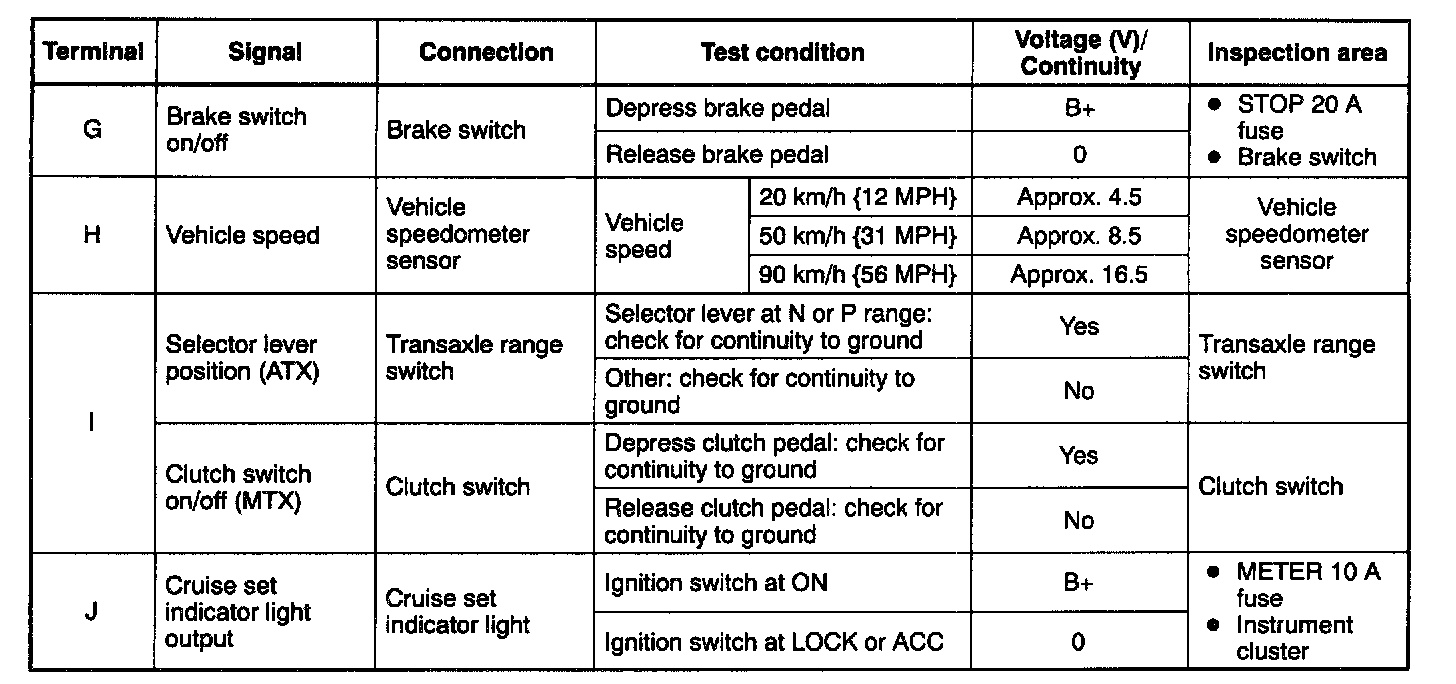

Terminal Voltage List (Reference) - Pinouts (G - J):

CRUISE ACTUATOR INSPECTION
1. Measure the voltage at the cruise actuator connector terminals as indicated.
2. Disconnect the cruise actuator connector before checking for continuity at terminal A, E, F, and I
- If not as specified, inspect the parts listed under "Inspection area" and the related wiring harnessers.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the cruise actuator.
