Control System

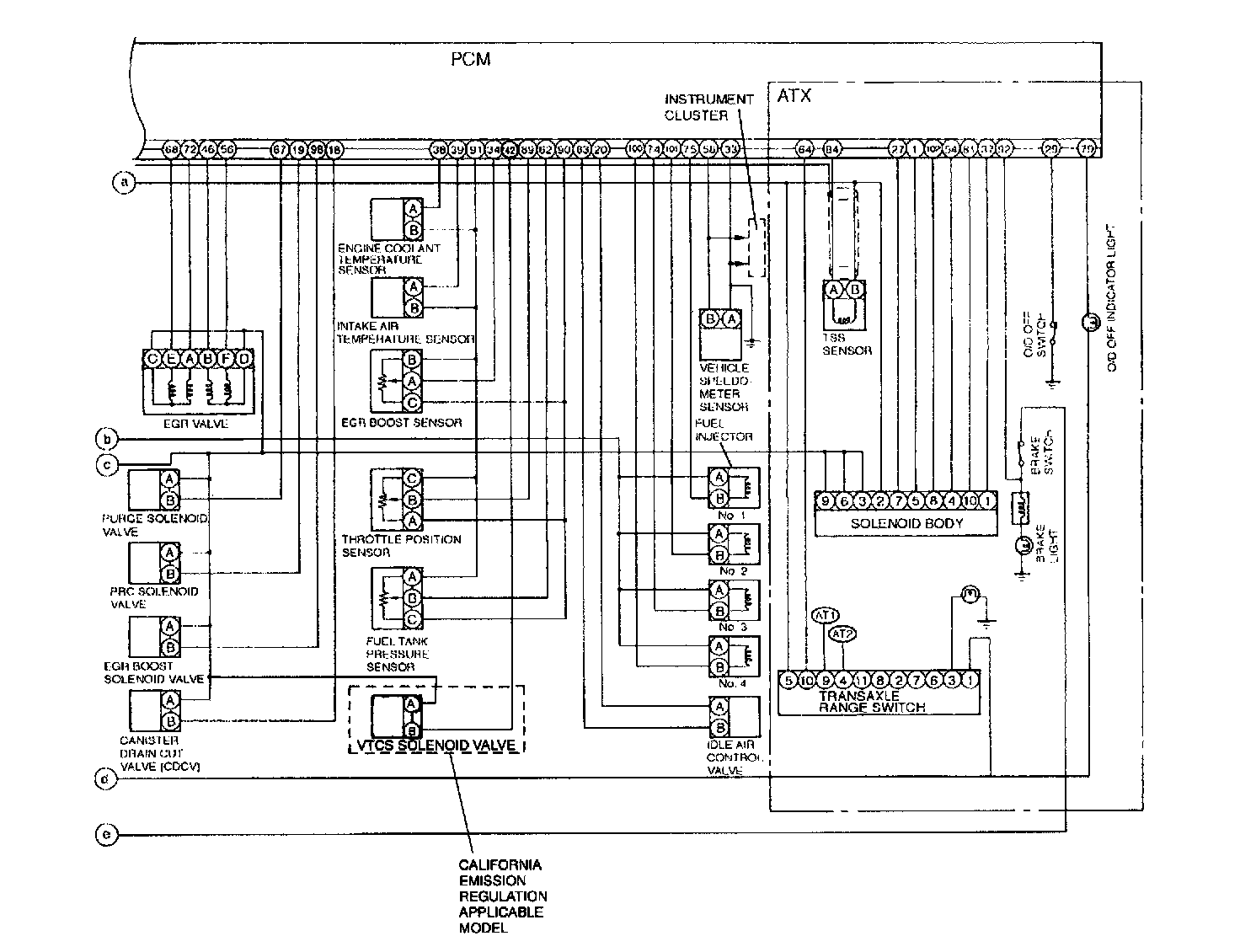

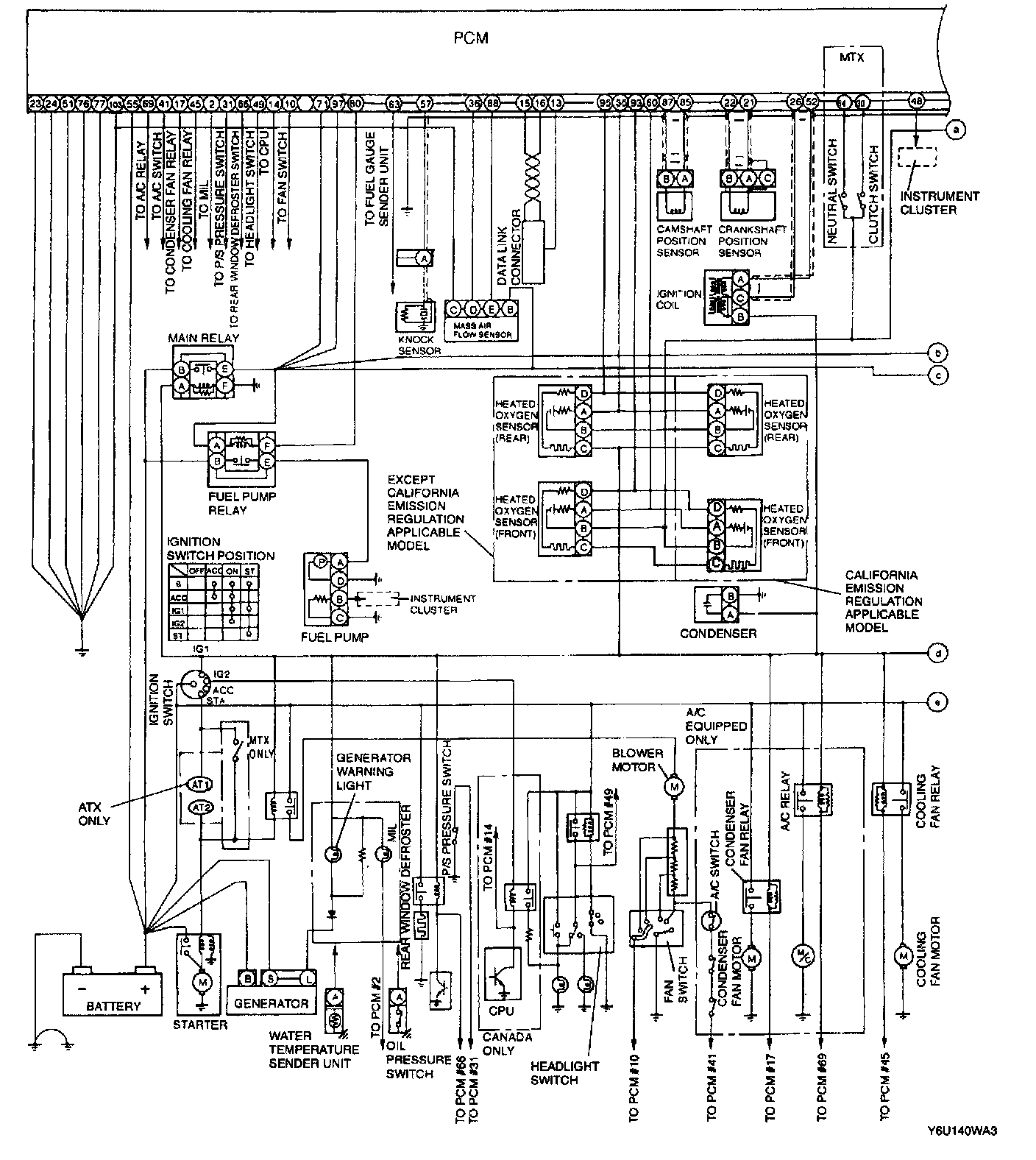

With Immobilizer System (Part 1 Of 2):

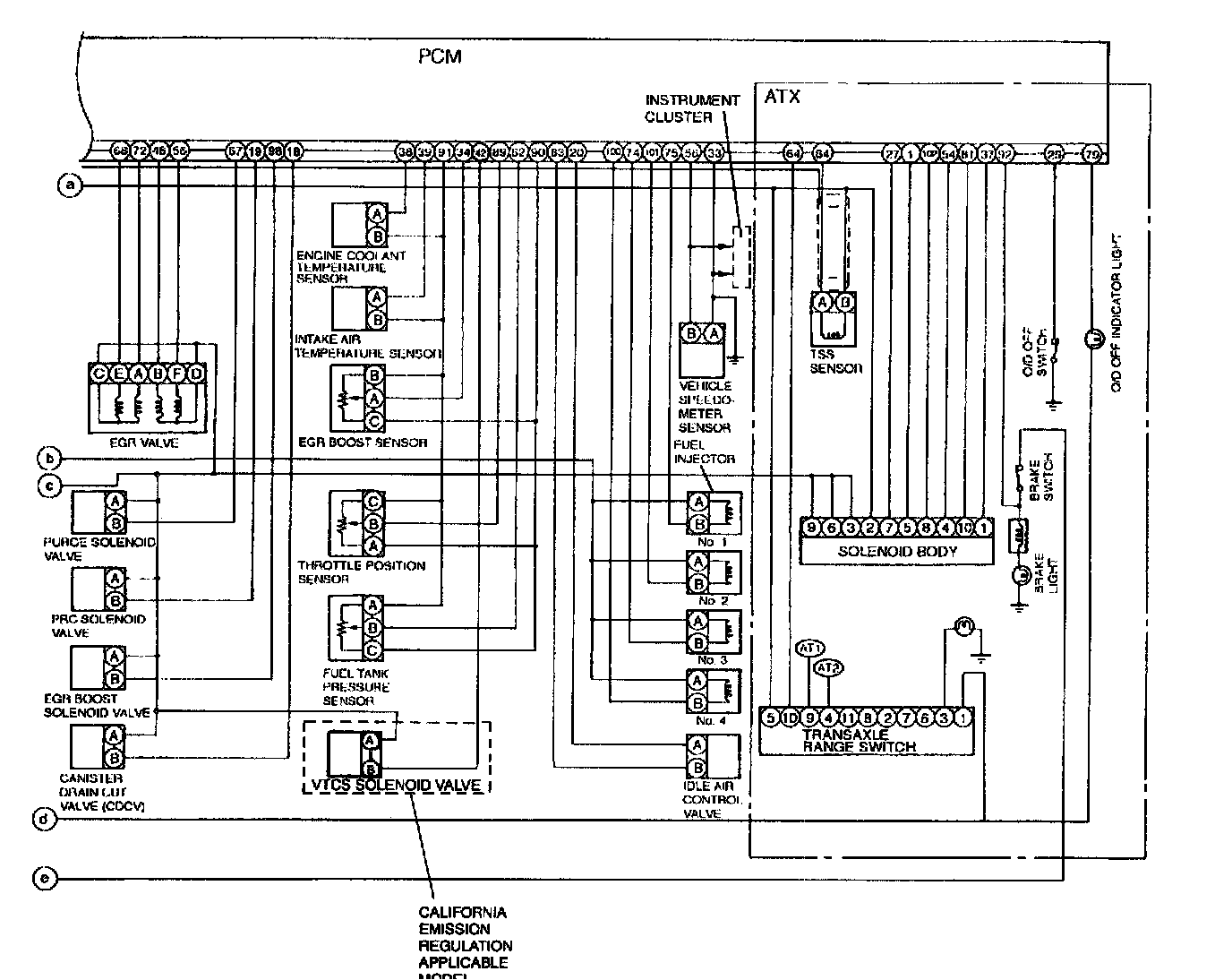

With Immobilizer System (Part 2 Of 2):

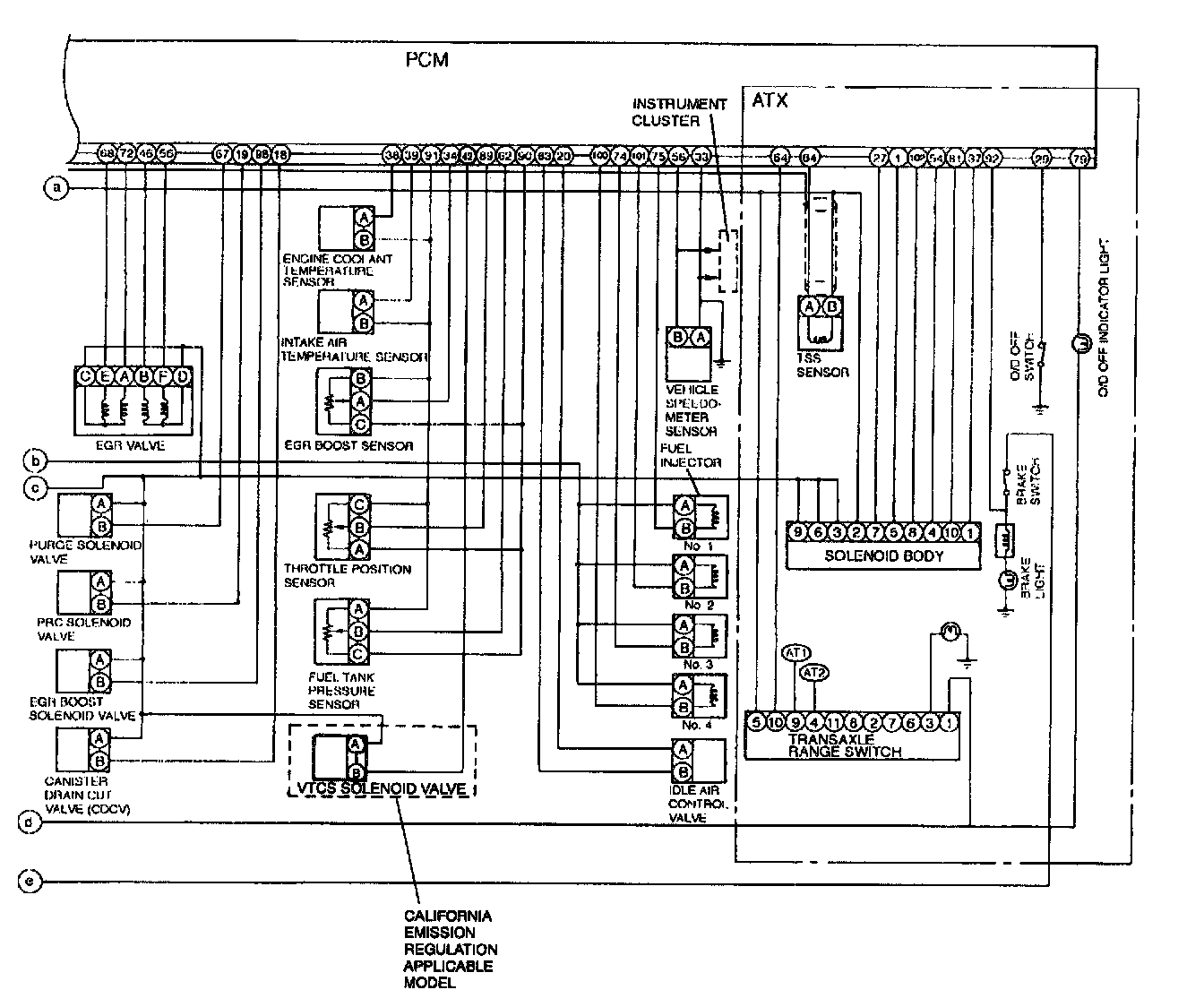

Without Immobilizer System (Part 1 Of 2):

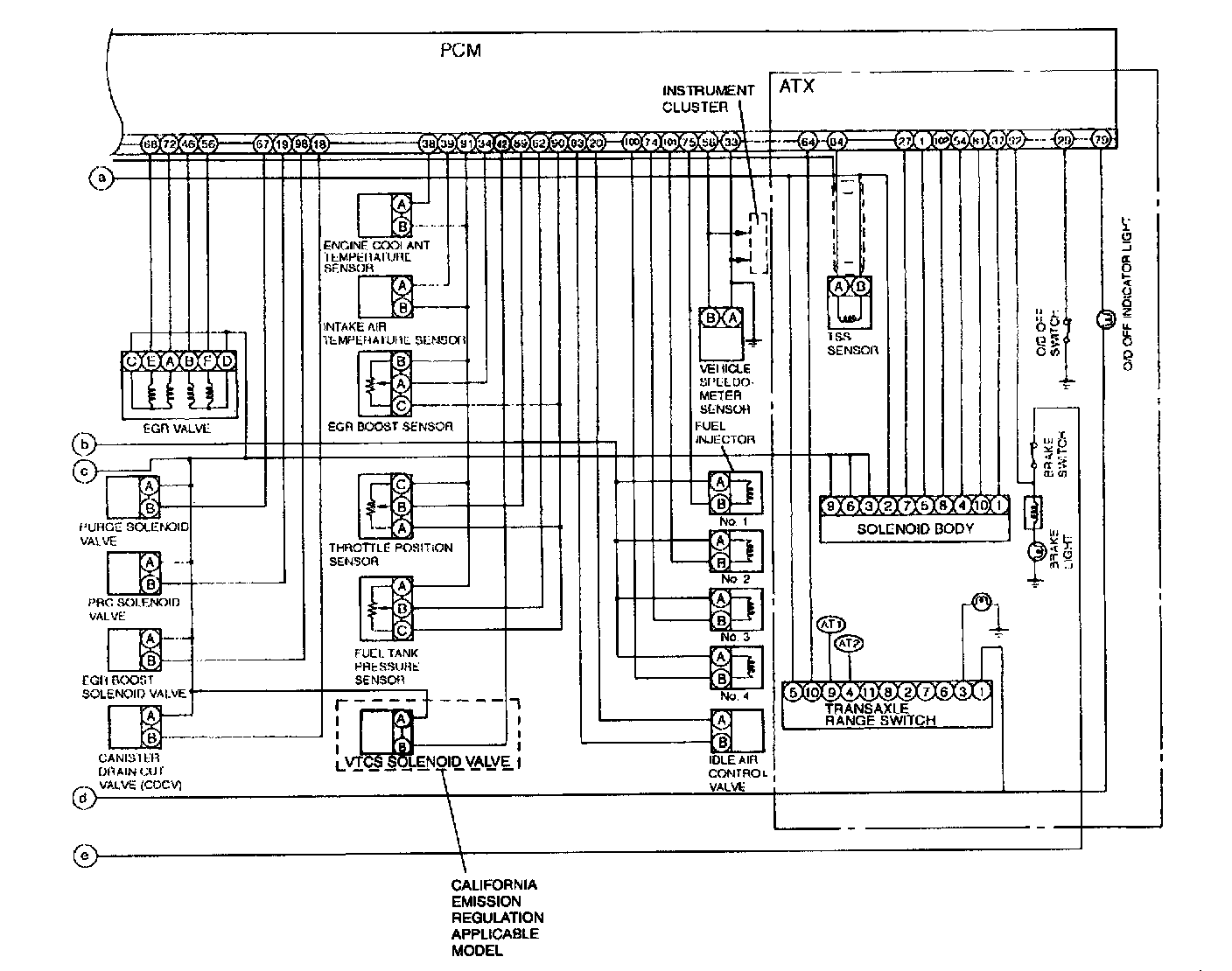

Without Immobilizer System (Part 2 Of 2):

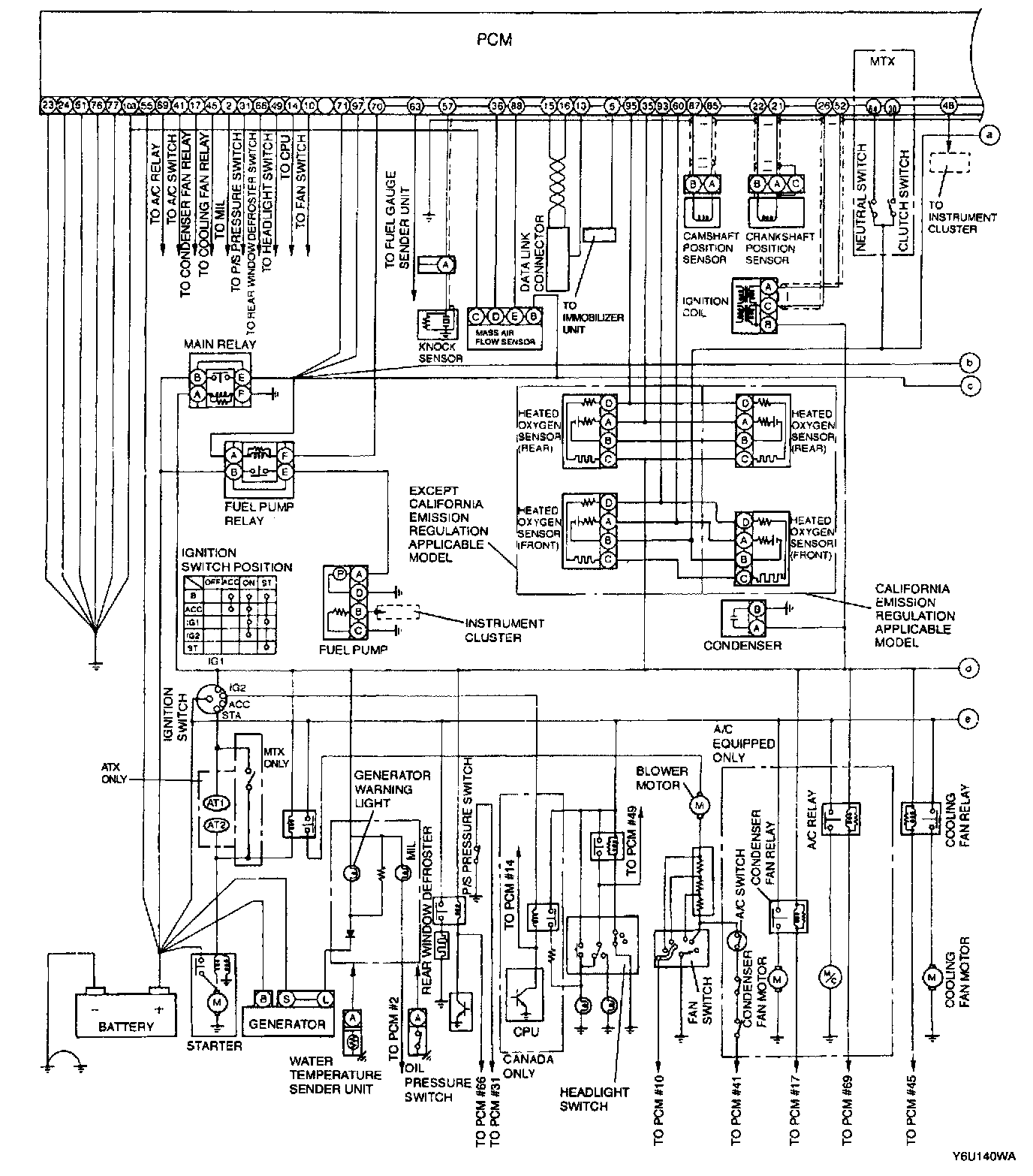

With Immobilizer (Part 1 Of 2):

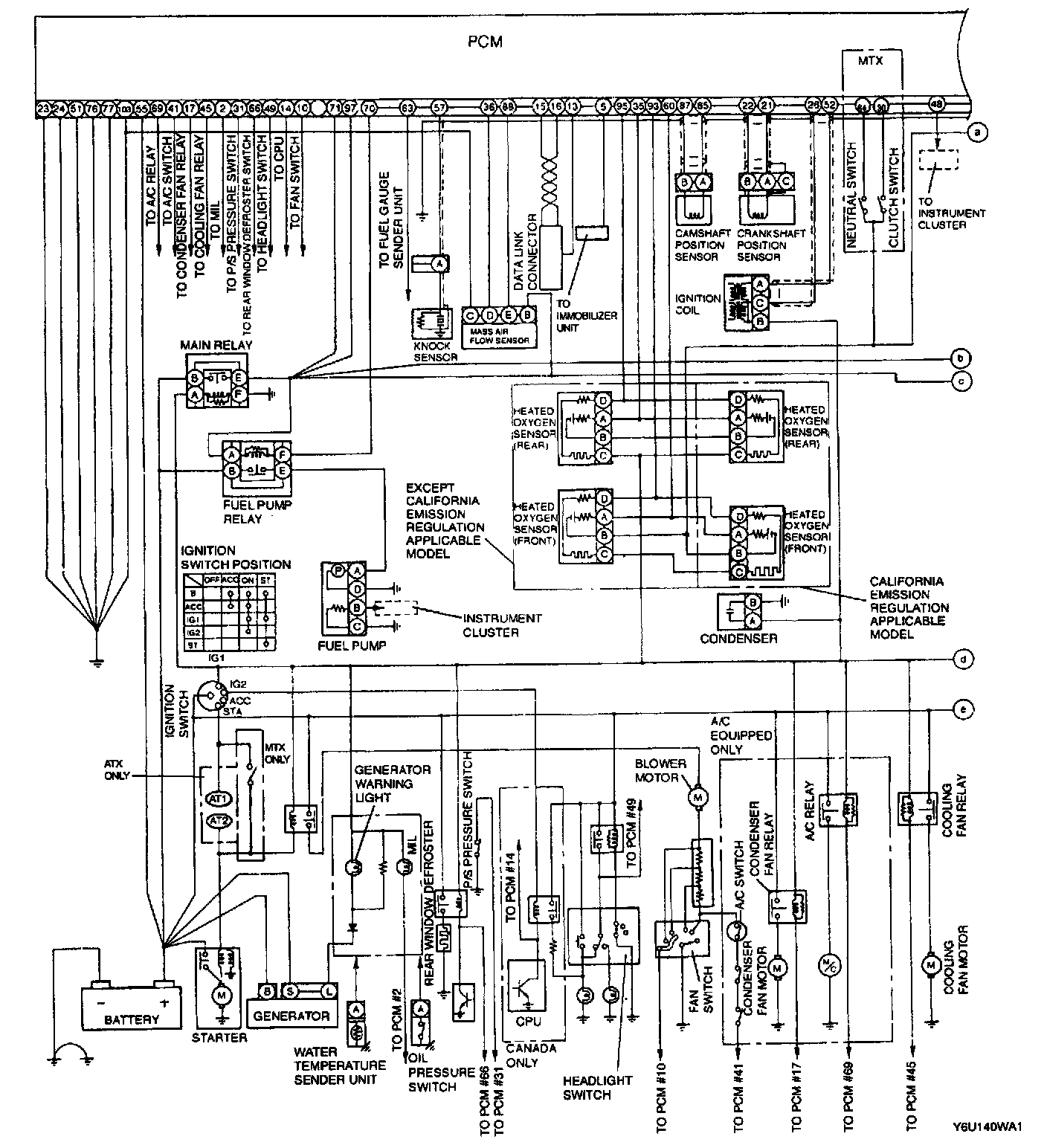

With Immobilizer (Part 2 Of 2):

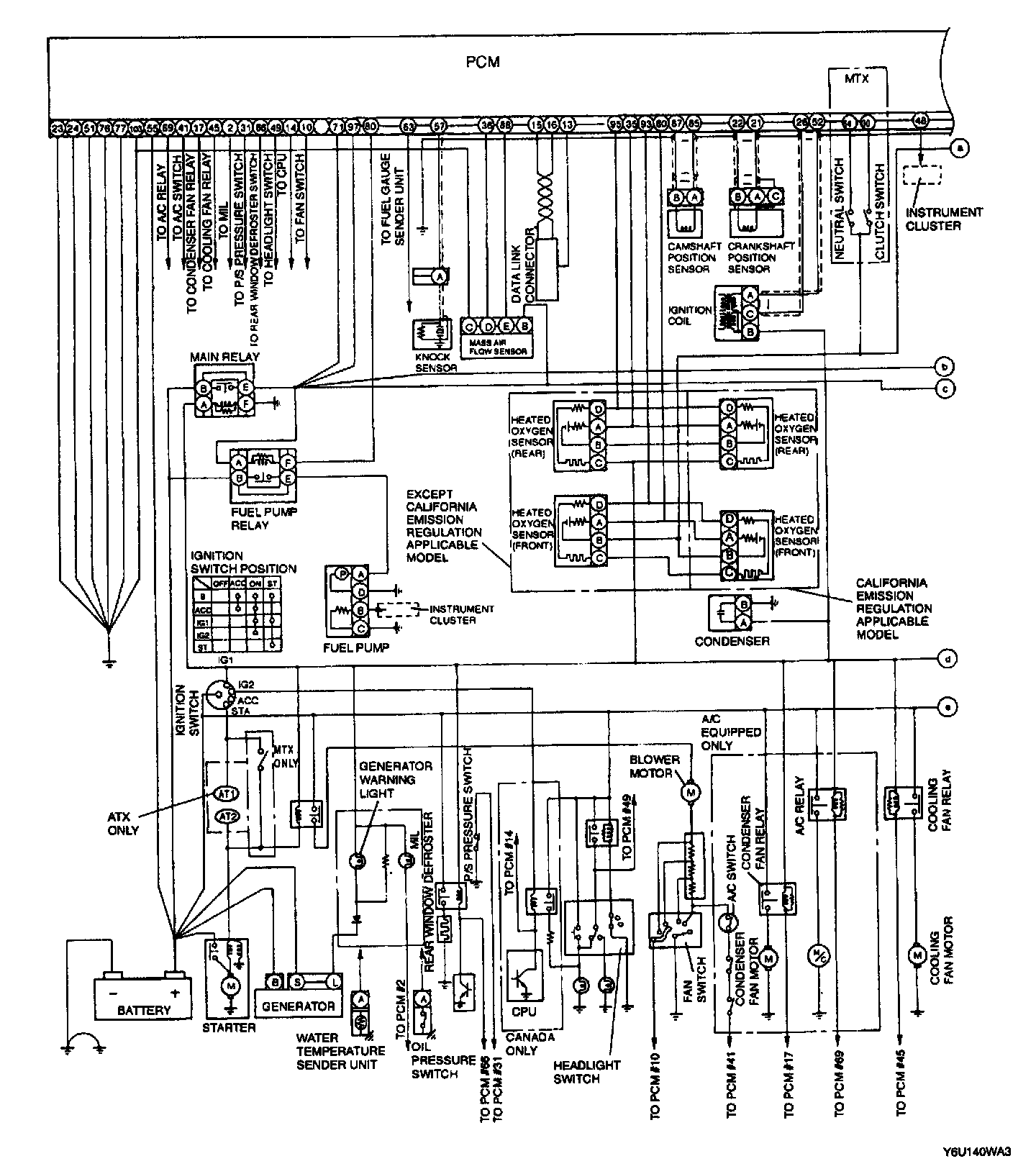

Without Immobilizer (Part 1 Of 2):



Without Immobilizer (Part 2 Of 2):
