Ignition Coil: Service and Repair

1. Disconnect the negative battery cable.

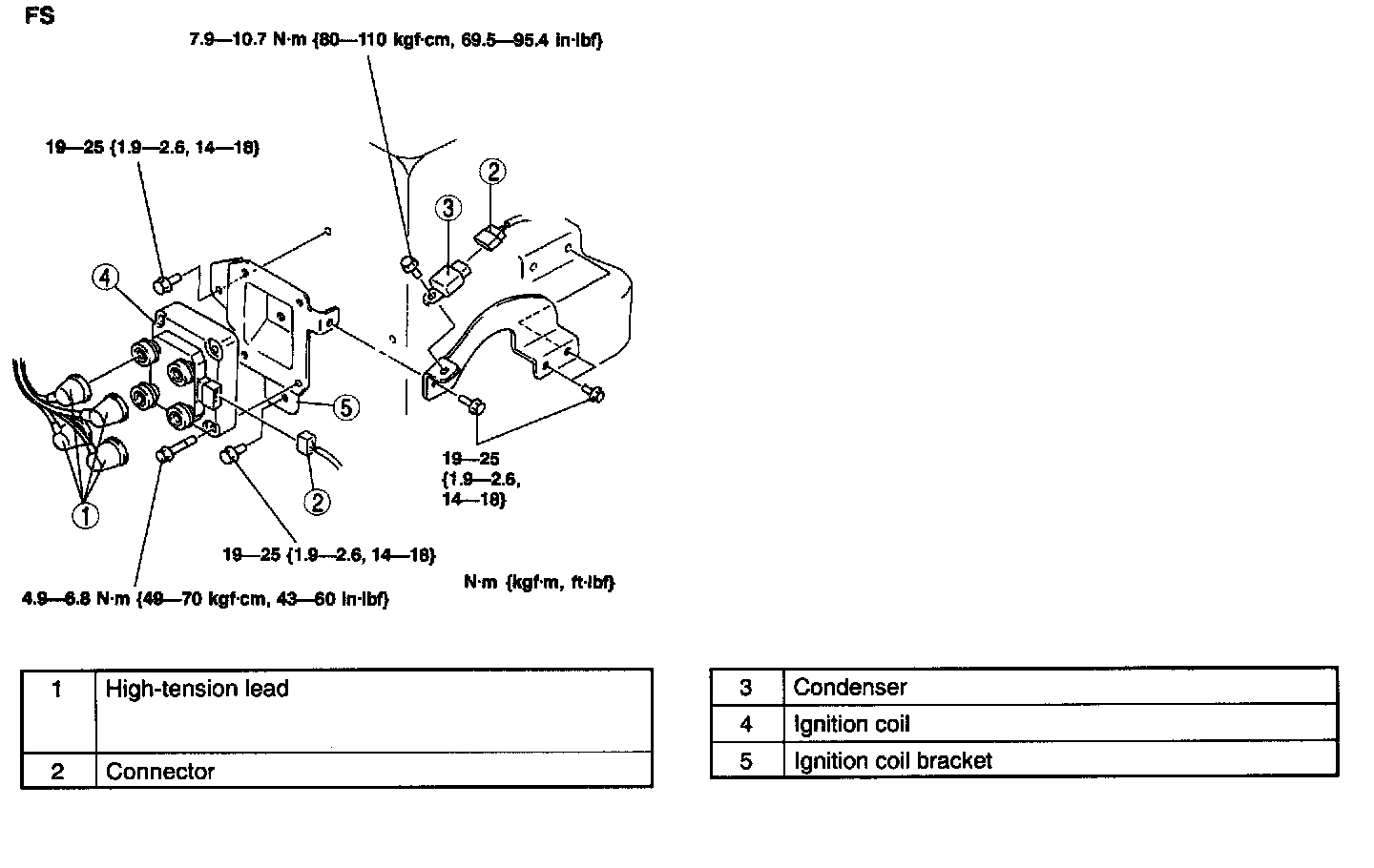

2. Remove the fresh-air duct. (FS)

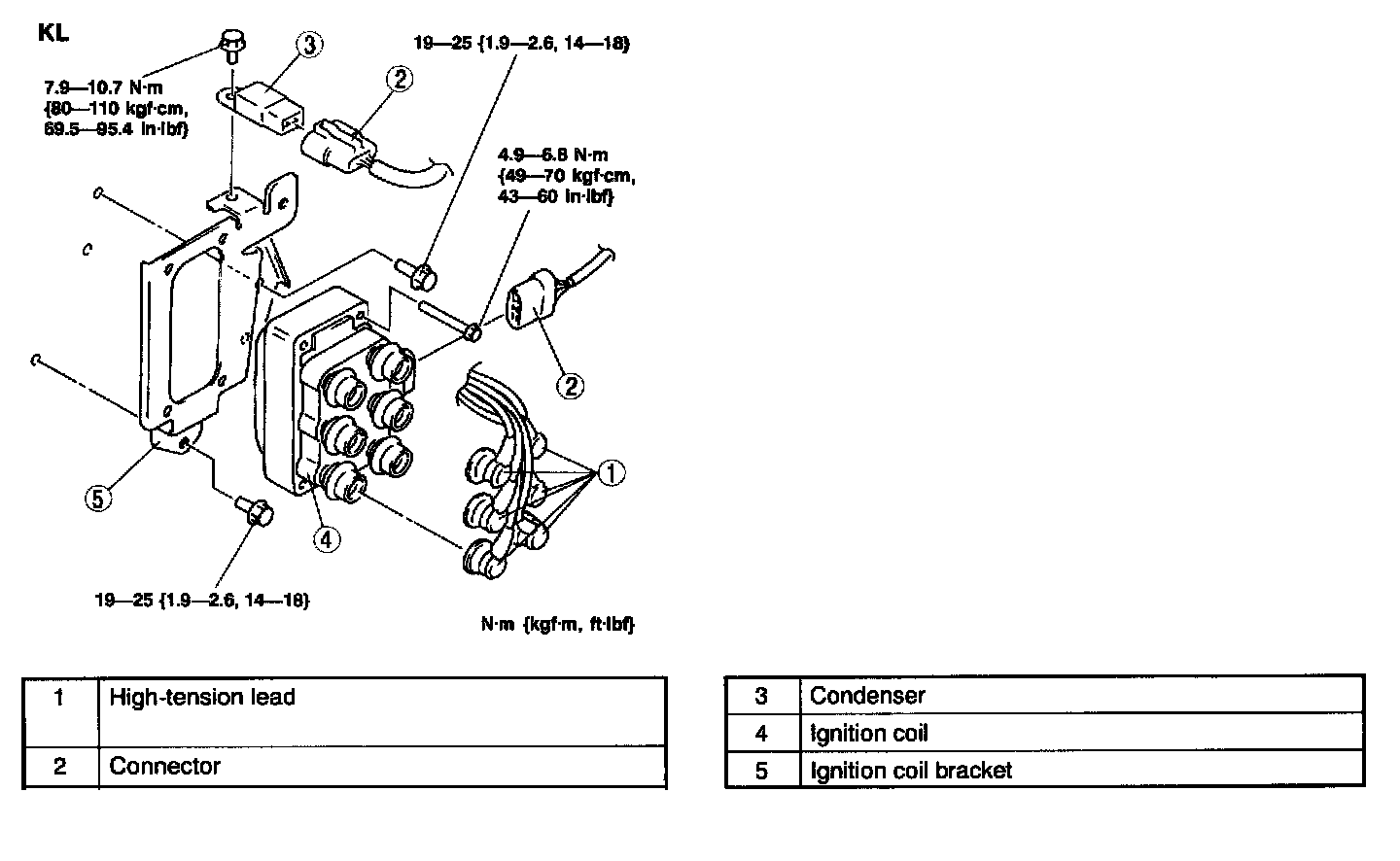

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
