Removal & Installation

NOTE: Use exploded view for removal and installation procedures. See Fig 1 or Fig 2 . On 626, remove components in numerical order.

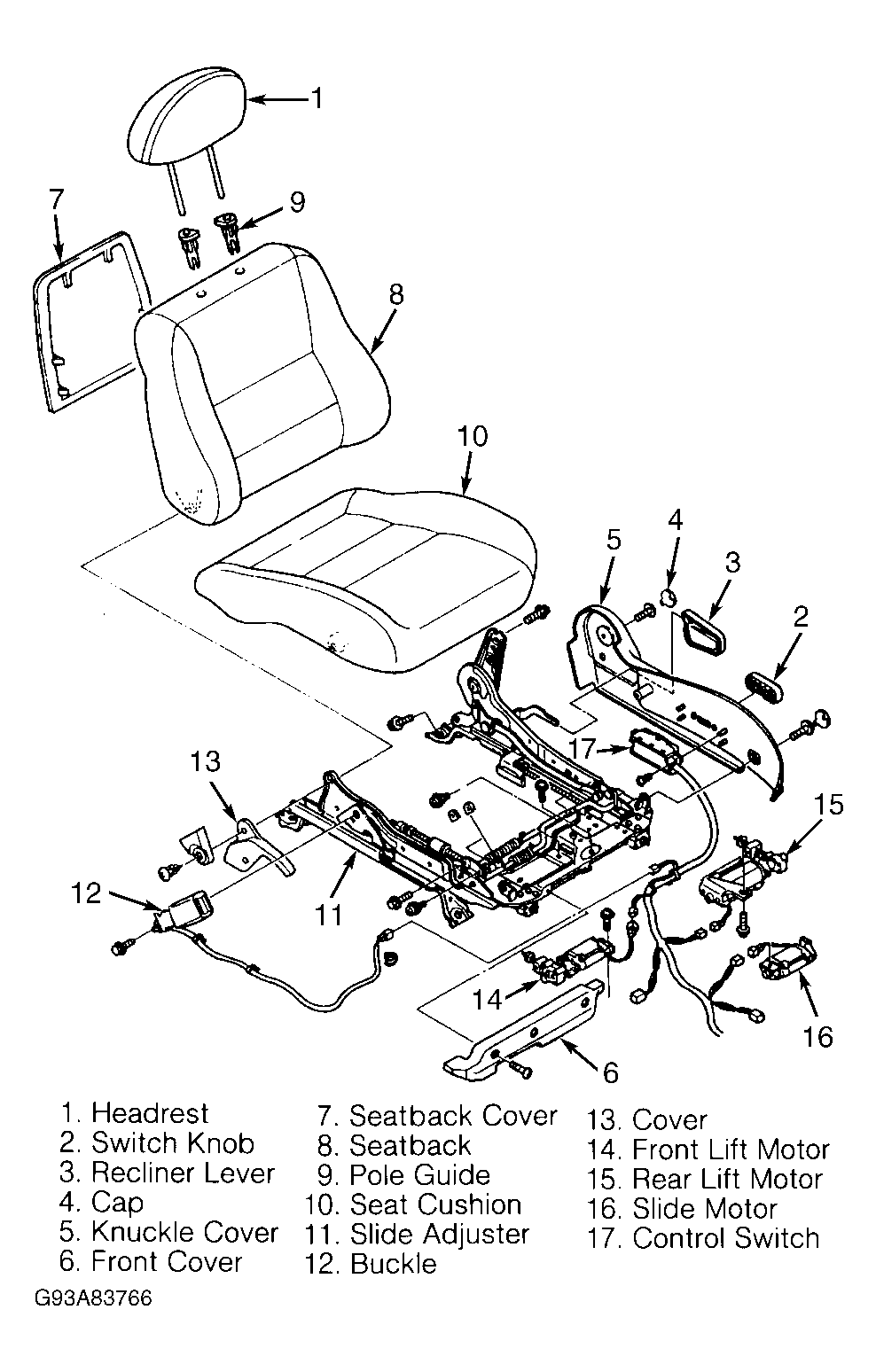

Fig 1: Exploded View Of Power Seat Assembly (Millenia)

Courtesy of MAZDA MOTORS CORP.

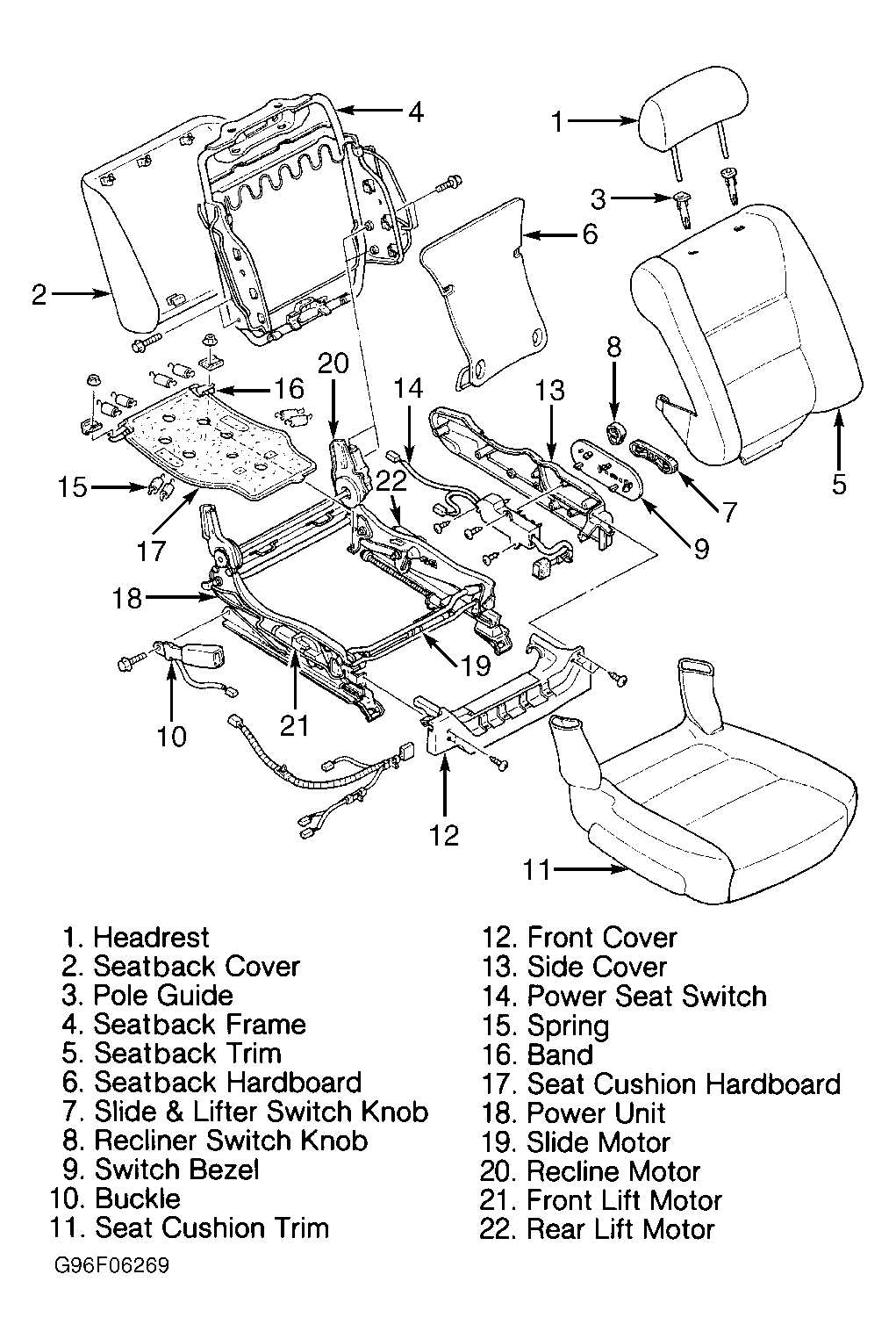

Fig 2: Exploded View Of Power Seat Assembly (626)

Courtesy of MAZDA MOTORS CORP.
