Automatic Transmission/Transaxle
AUTOMATIC TRANSAXLE [GF4A-EL]

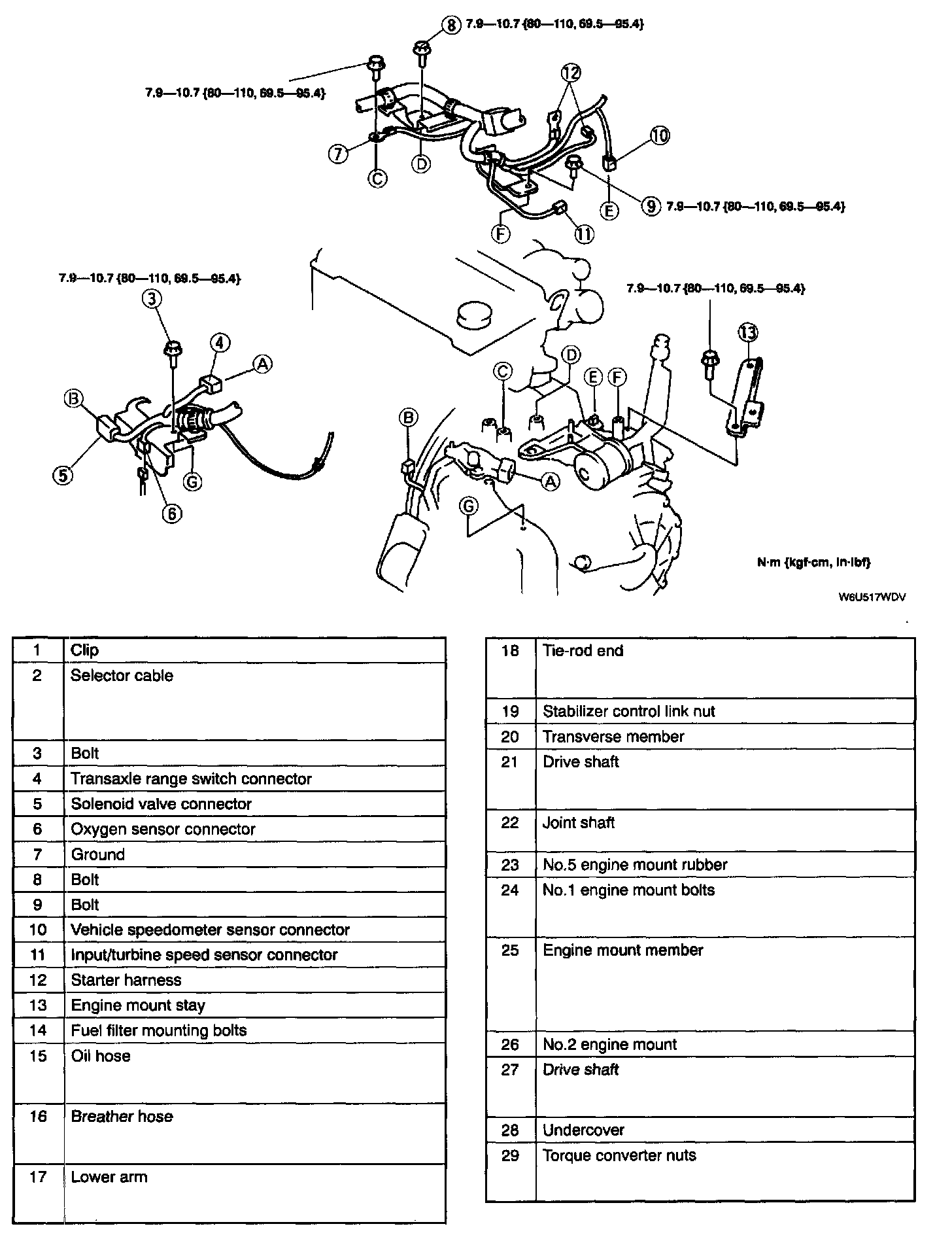

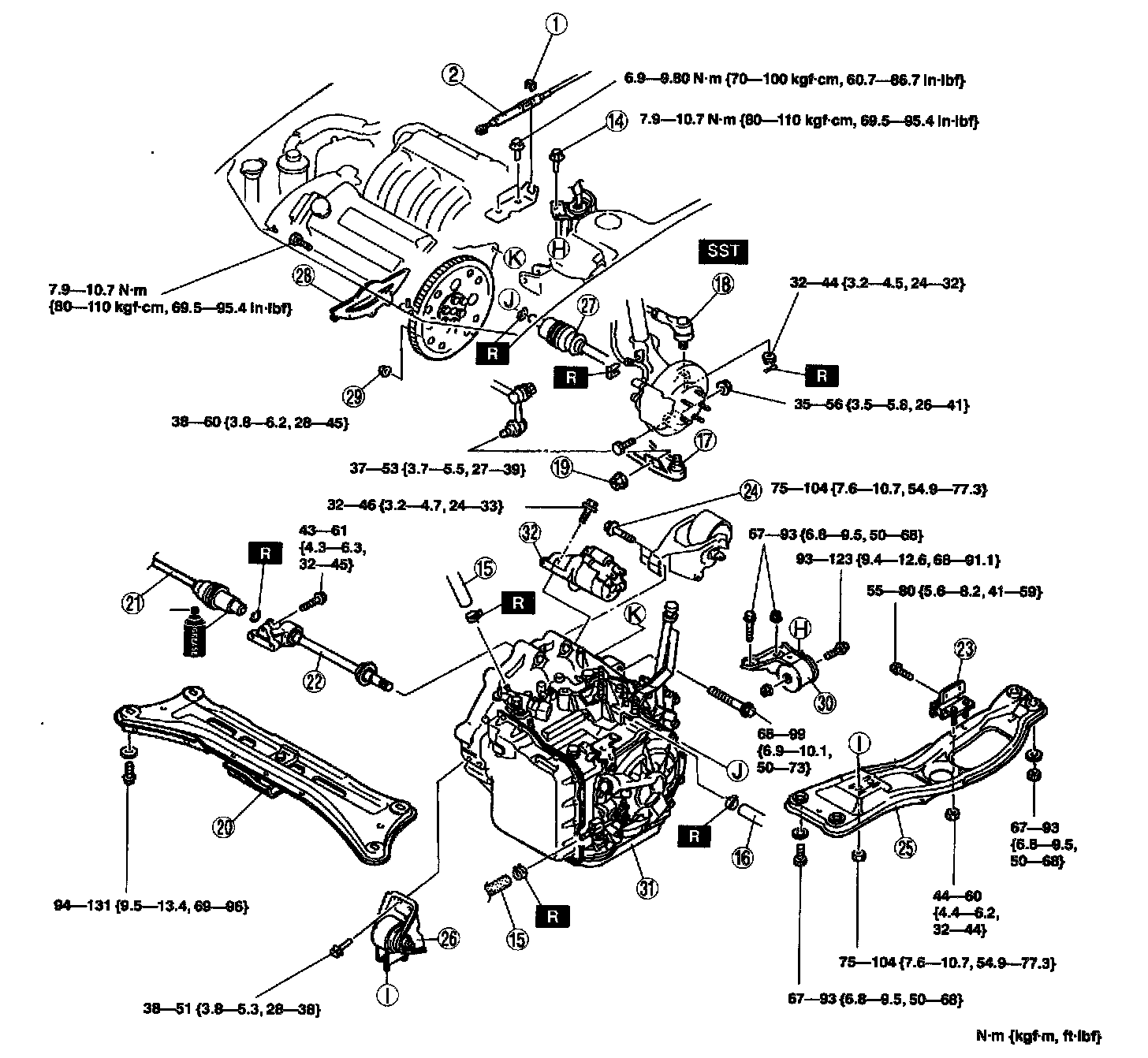

Exploded View
Exploded View and Legend
Legend
