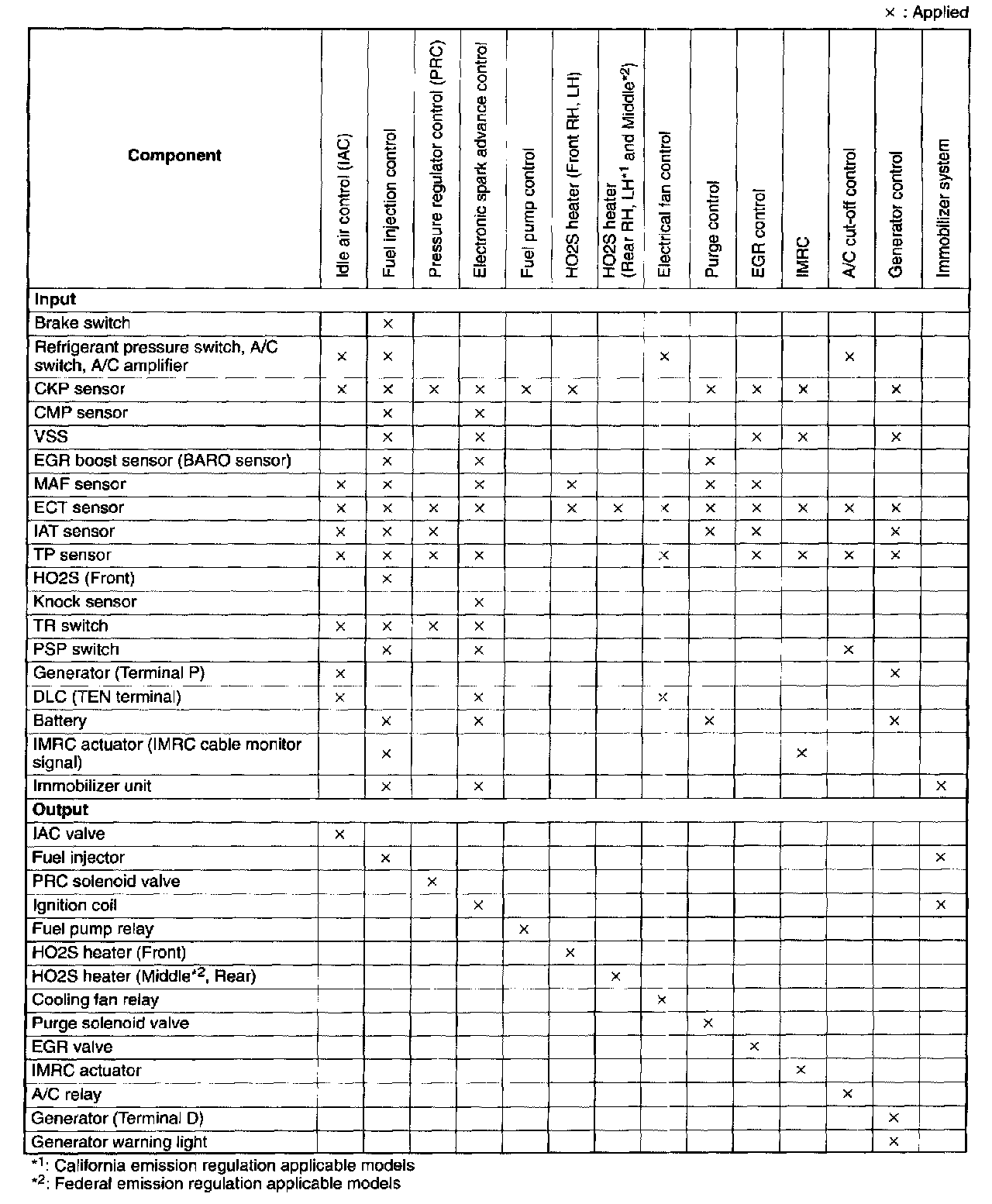

Control System Device and Relationship Chart
>>
Symptom Troubleshooting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Symptom Troubleshooting
Engine Control System:
