Clearance Inspection
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

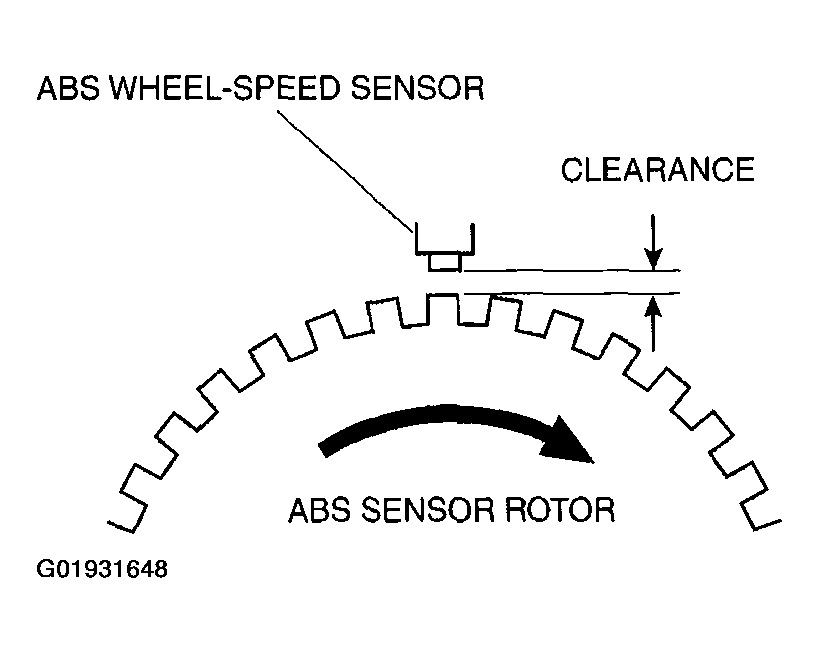

- Inspect the clearance between the wheel-speed sensor and the sensor rotor.
- Clearance 0.3-1.1 mm {0.012-0.043 in}
Courtesy of MAZDA MOTORS CORP.
