Coil Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hole of coil to the tab of steering lock.
  2. Install the hook of coil to the steering lock.

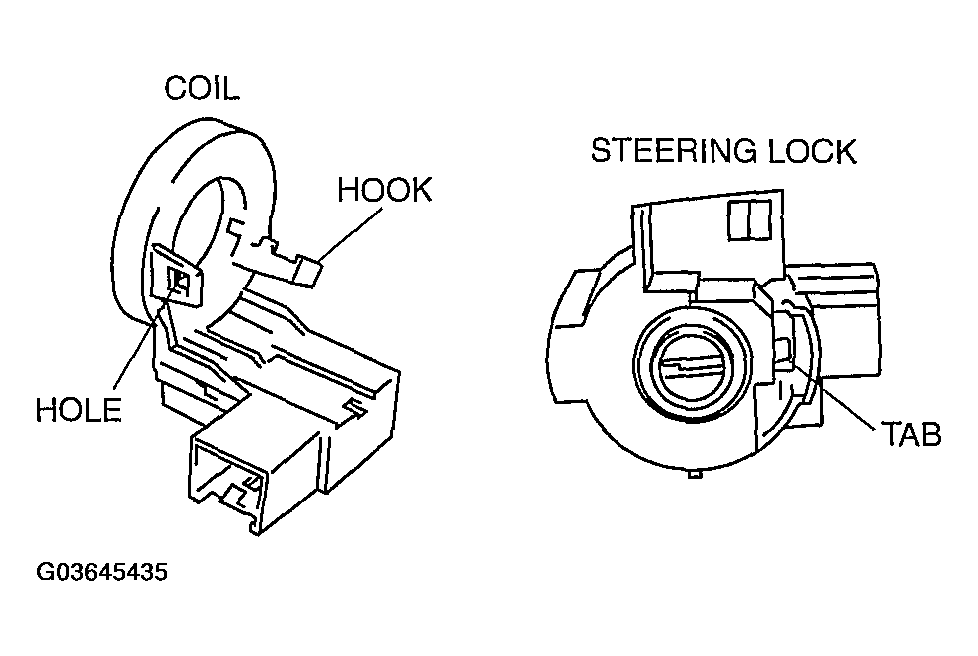

    Fig 1: Installing Coil To Tab Of Steering Lock
    G03645435Courtesy of MAZDA MOTORS CORP.
